Brand |
Xinya |
---|---|
Pitch |
5.00 MM |
Current Rating |
10A @ 250V |
Housing |
PA66 (UL 94V-0) |
- Xinya XY128 3 Pin Screw Terminal
- Pitch: 5mm
- Current Rating: 10A
- Max Withstand Voltage: 2000VAC / 60s
- Supported Wire Range: 24-12 AWG or up to 2.5mm²

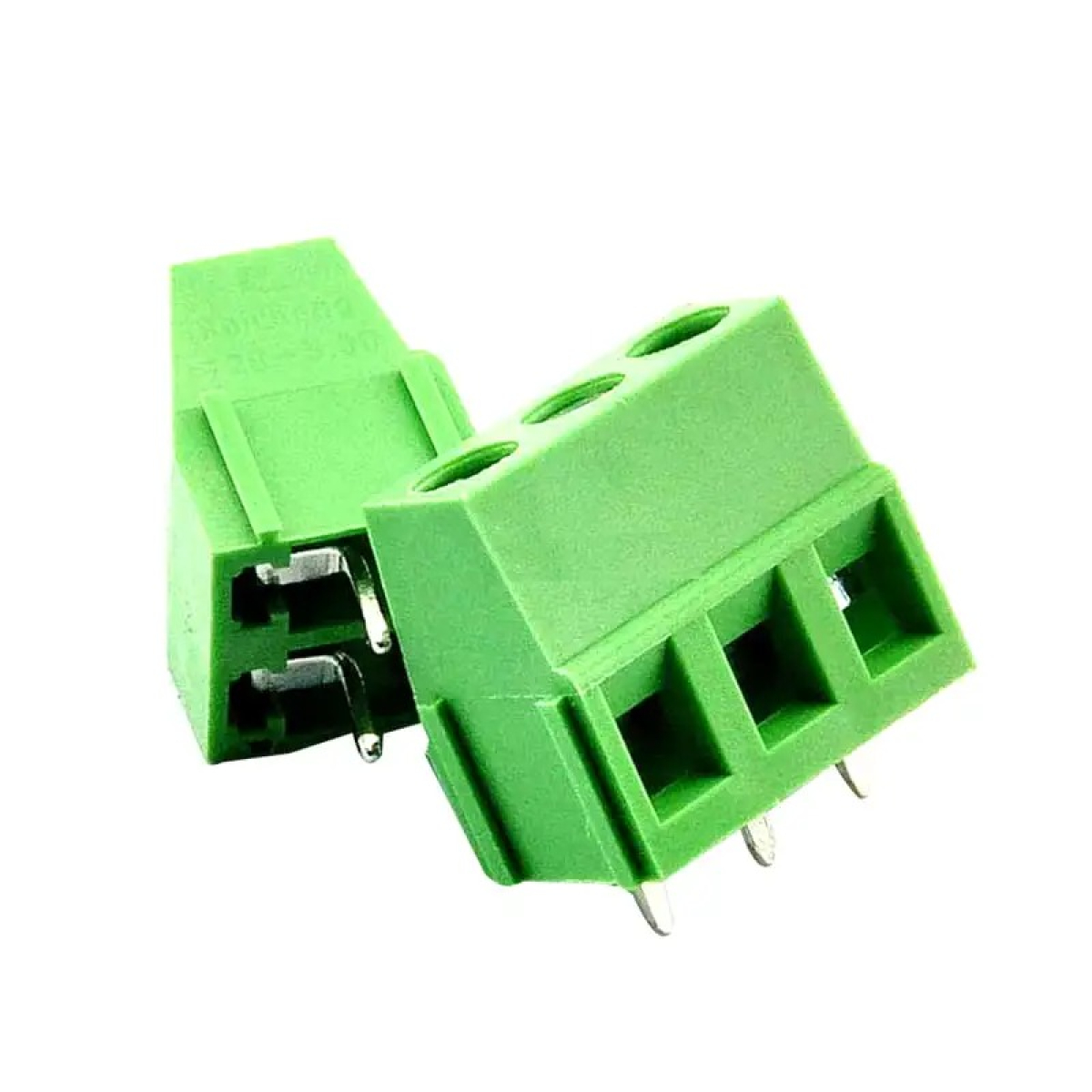

Its is a Xinya XY128 3 pin Screw Terminal. The XY128 Series Screw Terminal have a pitch of 5mm, and current rating of 10A. This screw terminals accepts wires of 24-12AWG or up to 2.5mm². All the screw terminals have a locking mechanism, such that any number of 2 or 3 pin Screw Terminals can be joined together.
Brand |
Xinya |
---|---|
Pitch |
5.00 MM |
Current Rating |
10A @ 250V |
Housing |
PA66 (UL 94V-0) |
