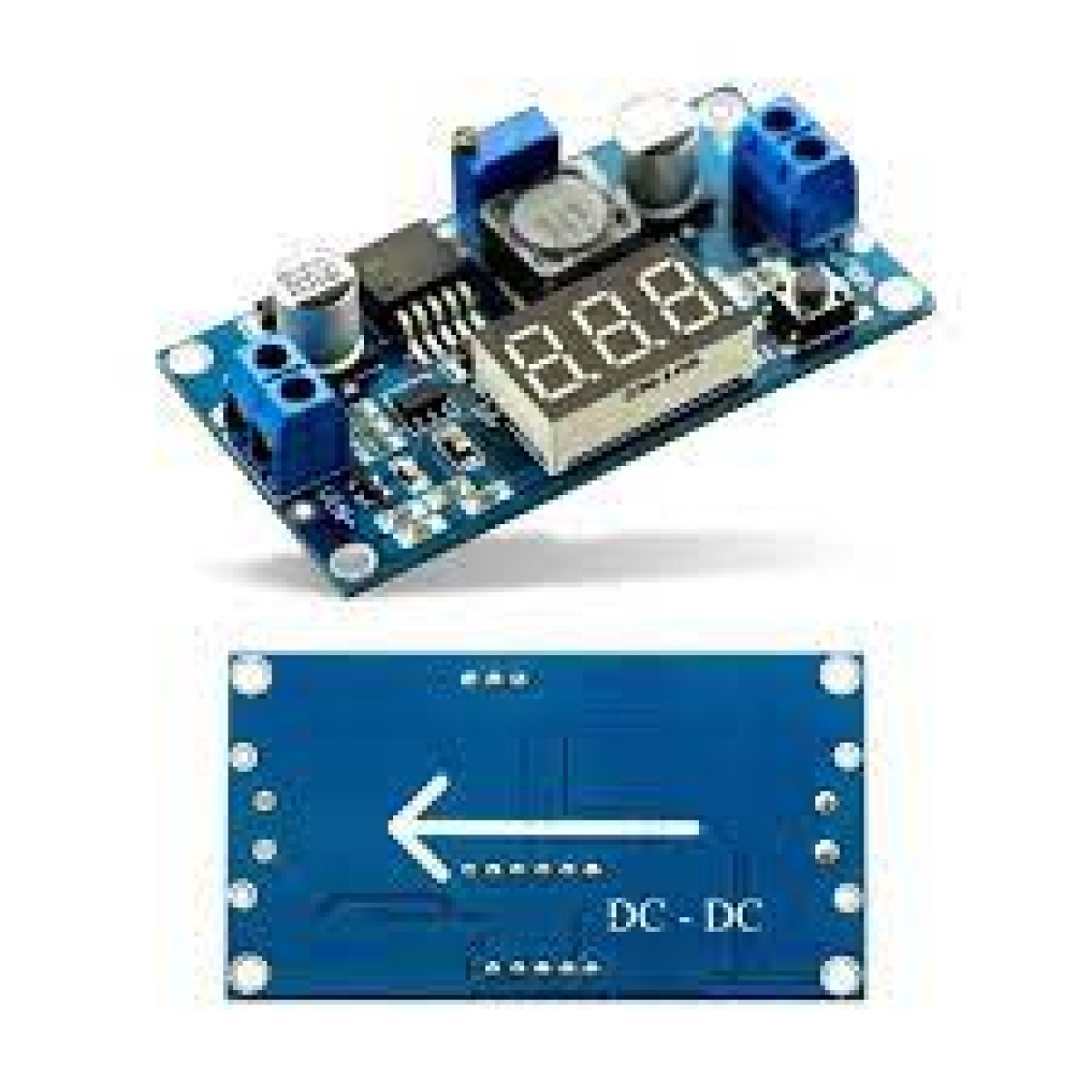

XL6009 DC-DC with Display

XL6009 is a 4A switch current high performance boost ( BOOST ) module. This module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, and its performance far exceeds that of the first-generation technology LM2577 . The XL6009 booster module has lower cost and better performance, and the LM2577 module is about to be eliminated.

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • XL6009 Step-up Power Module uses XL6009 as main control chip to realize broader scope of application about boosting.

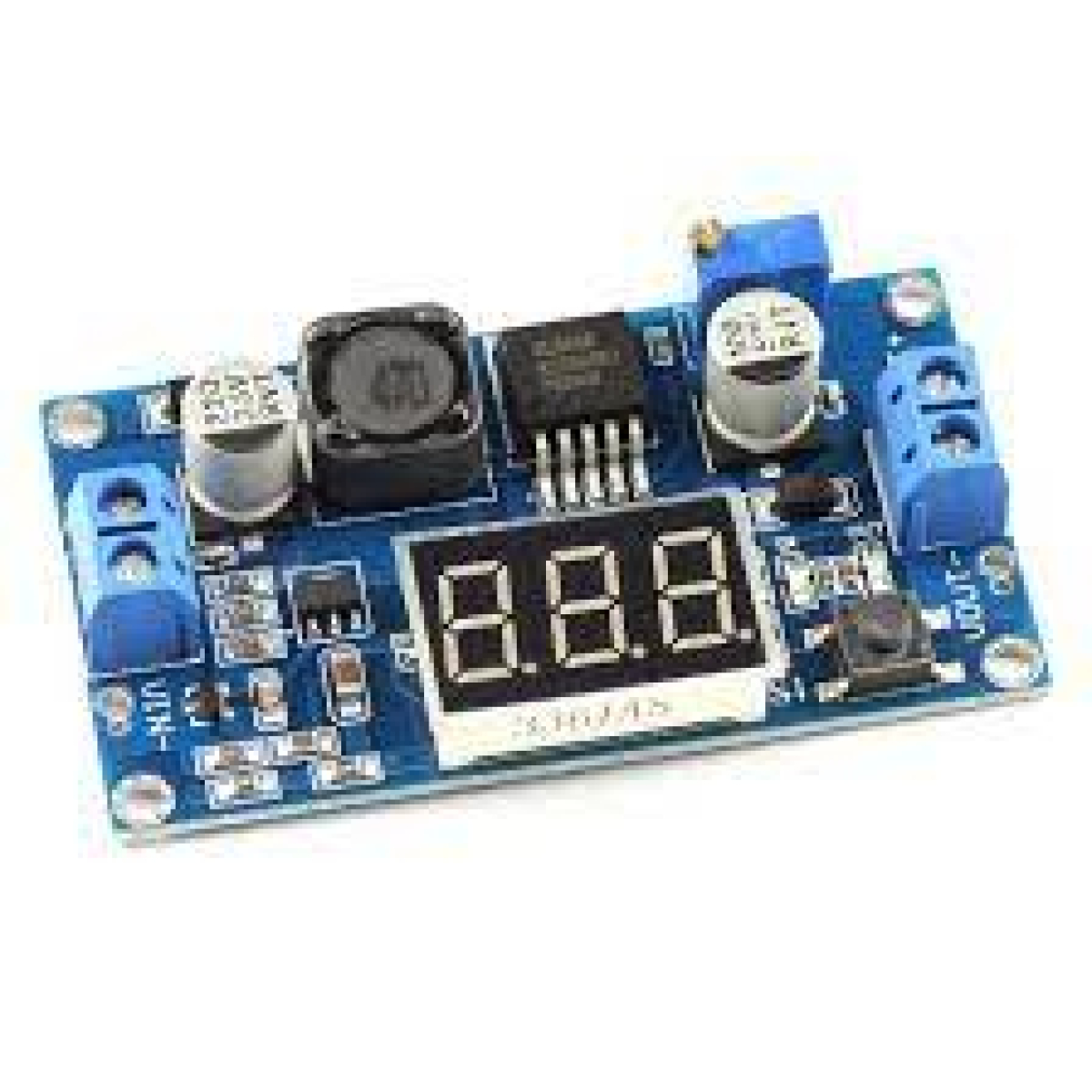

  • It shows the adjusted results intuitively with the digital tube.
  • There is no need to use the multimeter, which will be more convenient.
  • Equipped with the Schottky diode,you need not to be worried about wrong operation.

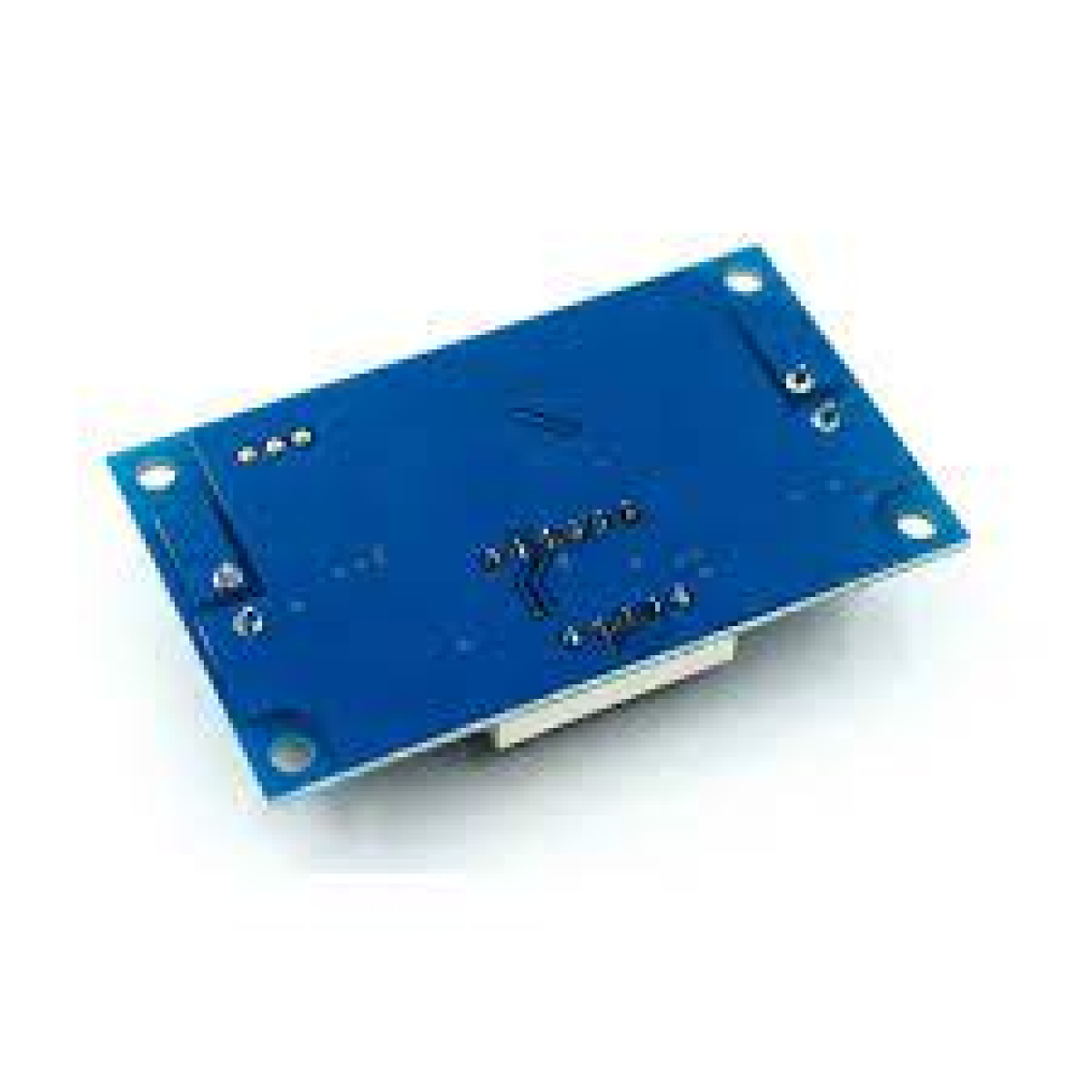

  • It adds ventilation hole on PCB to enhance the capacity of heat dissipation.
  • The booster below 5V works normally, but the digital tube does not work
  • Built-in 4A high-efficiency MOSFET switch tube, making the efficiency up to 94%( LM2577 current is only 3A ).
  • Ultra-high switching frequency 400KHz , can achieve very good results with a small-capacity filter capacitor, the ripple is smaller and the volume is smaller. (The frequency of LM2577 is only 50KHz ).
  • With input display indicator and output display indicator, the IN indicator lights when the digital tube displays the input voltage, and the OUT indicator lights when the digital tube displays the output voltage.
  • With overheat protection and short circuit protection
Additional information
Efficiency

85%

Input Current

4A

INPUT VOLTAGE

4.3V-32V

OUTPUT VOLTAGE

5V-52V

TRANSFER RATE

94%
