XL6009 DC-DC

SKU: HW432

Features :

  1. The performance is much higher than LM2577.
  2. Non-isolated Boost converter.
  3. It has a non-synchronous rectifier.
  4. Small and Handy voltage regulator module.

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

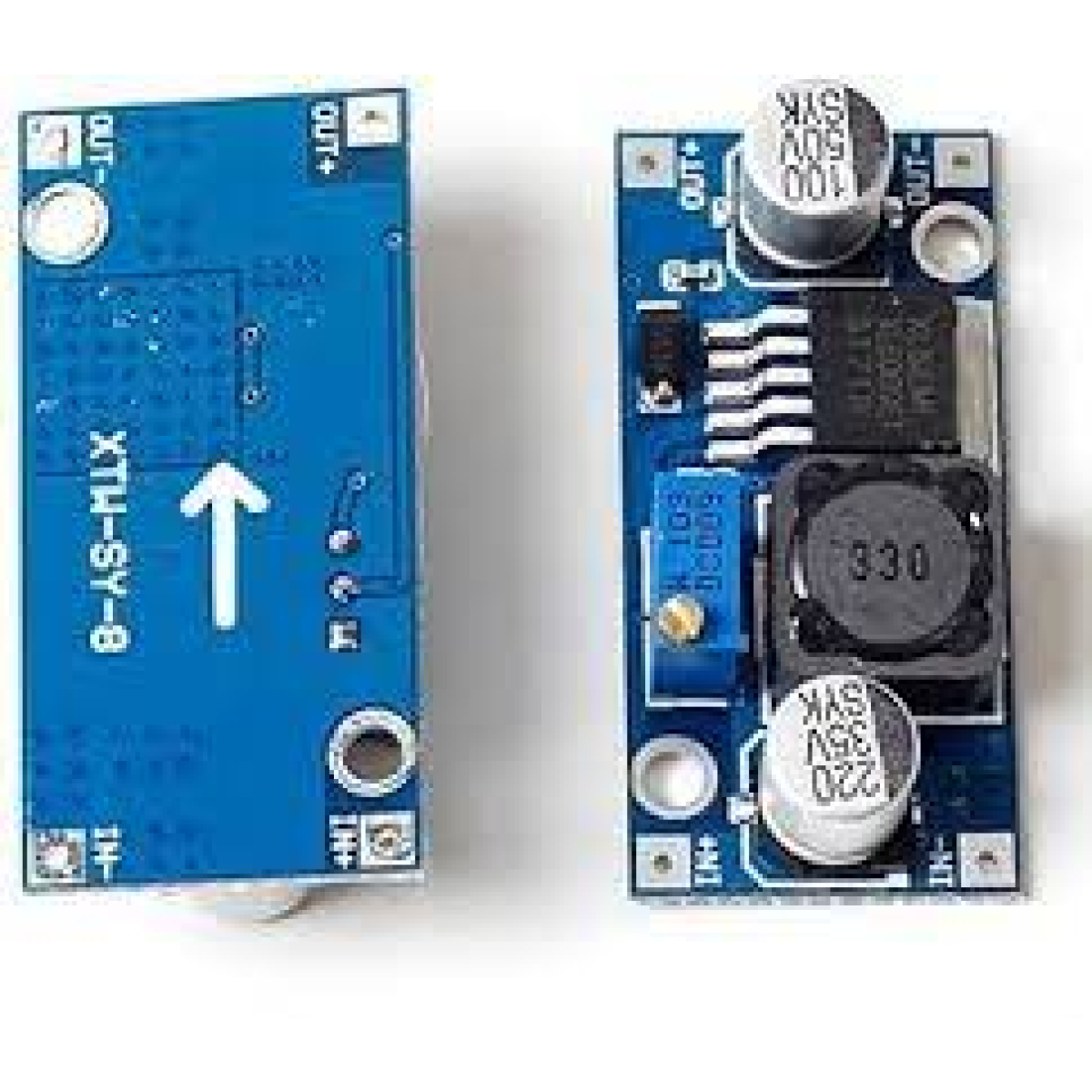

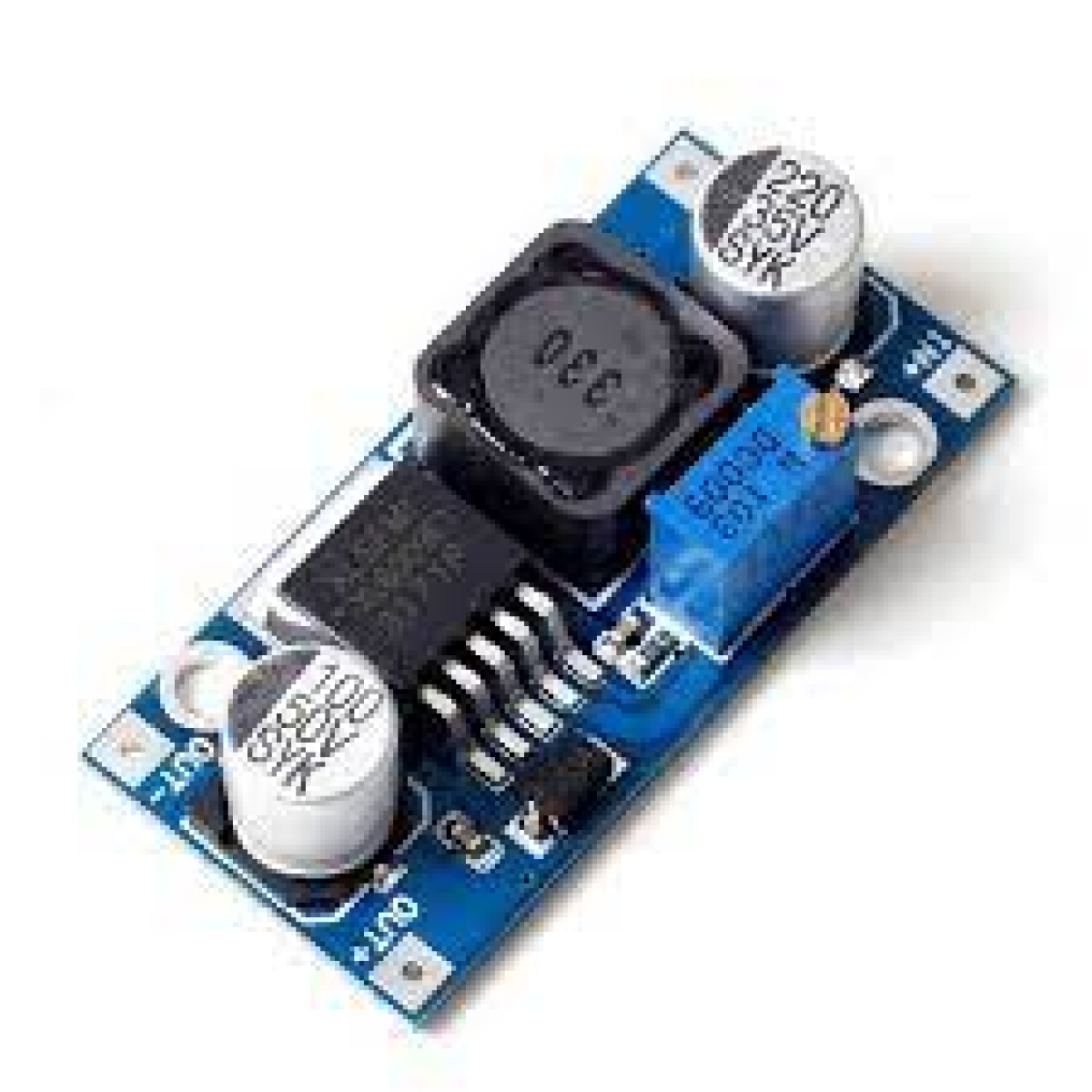

This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577  XL6009 boost module at a lower cost, superior performance.

It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.

High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller

Pins
  • IN+ input positive
  • IN- input negative!
  • OUT+ output positive
  • OUT- output negative
Additional information
Input Voltage (V)

3 to 32

Input Current(A)

4

Output Voltage(V)

5 ~ 35

Output Ripple(mV)

50

Efficiency

94%

Switching Frequency(KHz)

400

Load Regulation

±0.5%

Voltage Regulation

±0.5%
