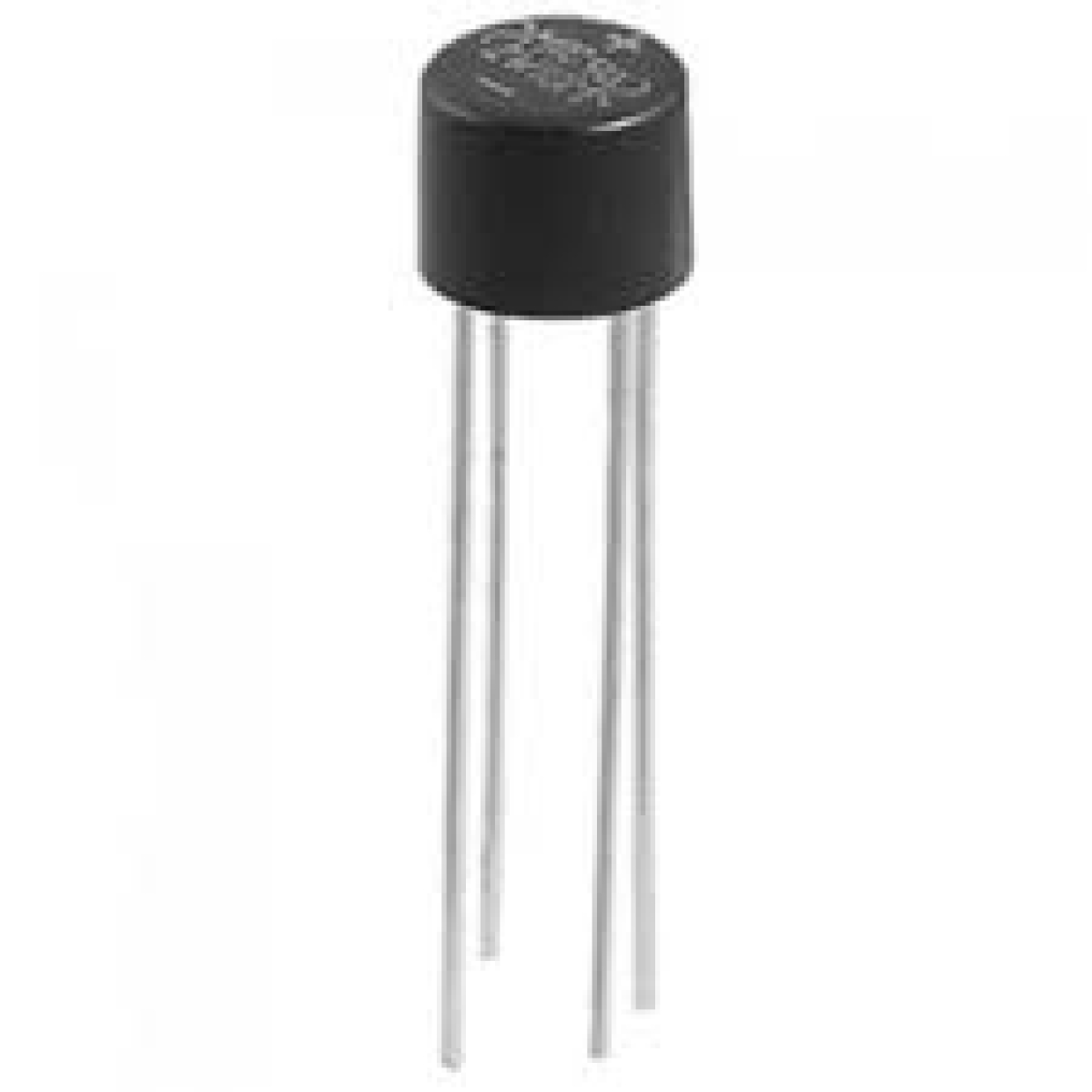

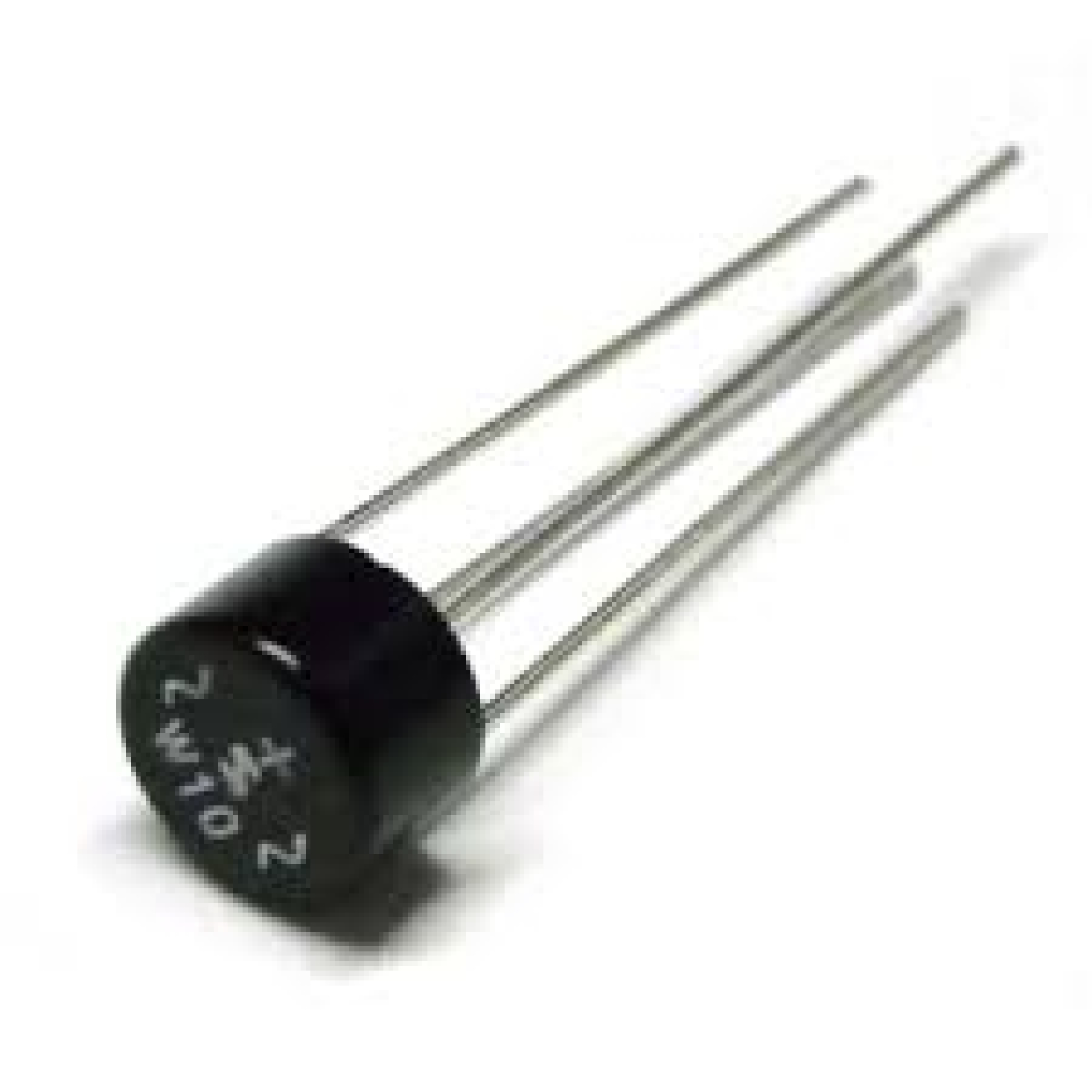

W10-BRIDGE RECTIFIER

Features:-

•  Low cost

•  This series is UL recognized under component index

•  High forward surge current capability

•  Ideal for printed circuit board

•  High temperature soldering guaranteed: 260 oC/10 second, 0.375”(9.5 mm) lead length at 5 lbs. (2.3 kg) tension.

Mechanical Data:-

•  Case: Molded plastic body

•  Terminal: Lead solderable per MIL-STD-202 E method 208 C.

•  Polarity: Polarity symbols molded on case

•  Mounting position: Any

•  Weight: 0.042 ounce, 1.2 grams

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The W10 is a standard bridge rectifier in a 4 pin compact package. You can use it to convert a AC voltage to a DC voltage. Being small and compact it takes less space than a standard 4 diode bridge rectifier.

Use it to convert AC voltages to DC. Also, you can use this for reverse polarity protection for all your boards and projects.

Features

  • Peak Reverse Voltage (Vrrm): 1000V
  • Max. RMS Bridge Voltage (Vrms): 700V
  • Max. DC Blocking Voltage (Vdc): 1000V
  • Av. Forward Rectified Current (Io): 1.5A
  • Maximum Reverse Current (Ir): 10µA
  • Forward Volt Drop per Element (Vf): 1.0V
Additional information
Maximum Repetitive Peak Reverse Voltage

100V

Typical Thermal Resistance

40℃/W

Operating Temperature Range

-55 to +125℃

Storage Temperature Range

55 to +150℃
