Voltage Detection Sensor Module

Name: Voltage Detection Sensor Module
SKU: 4663
Availability: InStock

Keep in mind, you are restricted to voltages that are less than 25 volts. More than that and you will exceed the voltage limit of your Arduino input.

This module is based on the principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller. Arduino analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V).

Add to wishlist

Compare

17 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

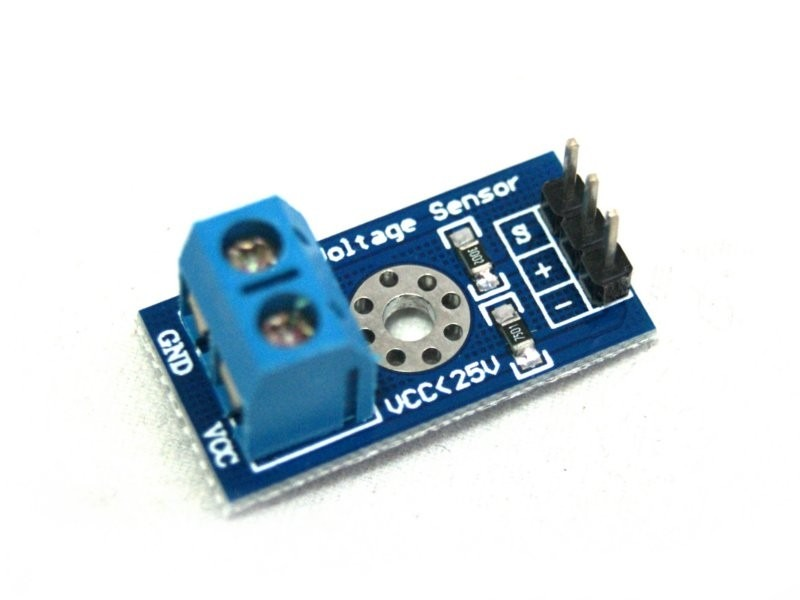

This is a simple but very useful module which uses a potential divider to reduce an input voltage by a factor of 5. The Voltage Detection Sensor Module 25V allows you to use the analog input of a microcontroller to monitor voltages much higher than it capable of sensing.

For example with a 0-5V analog input range, you are able to measure a voltage up to 25V. This voltage sensor module also includes convenient screw terminals for easy and secure connection of a wire.

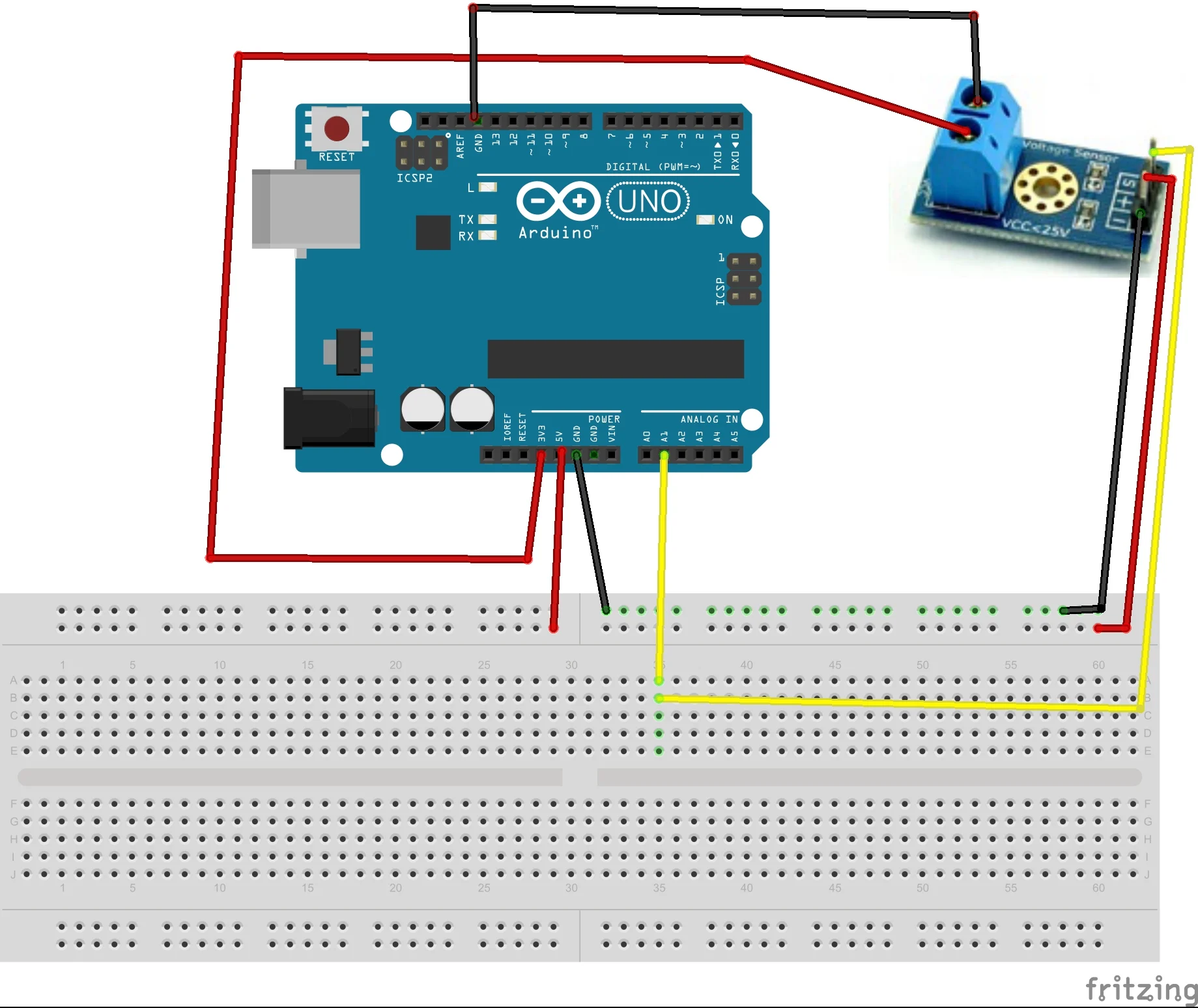

Output Interface: “+ ” connected 5/3.3V, “-” connected GND, “s” connected Arduino AD pins
DC input interface: red terminal positive with VCC, negative with GND
You can also use the IICLCD1602 LCD to display voltage.
By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery.
