PCB Size ( L x W ) mm |
58 x 56 |
---|---|
Height (mm) |
20 |
Weight (g) |
20 |
Shipping Weight |
0.022 kg |
Shipping Dimensions |
7 x 7 x 2 cm |

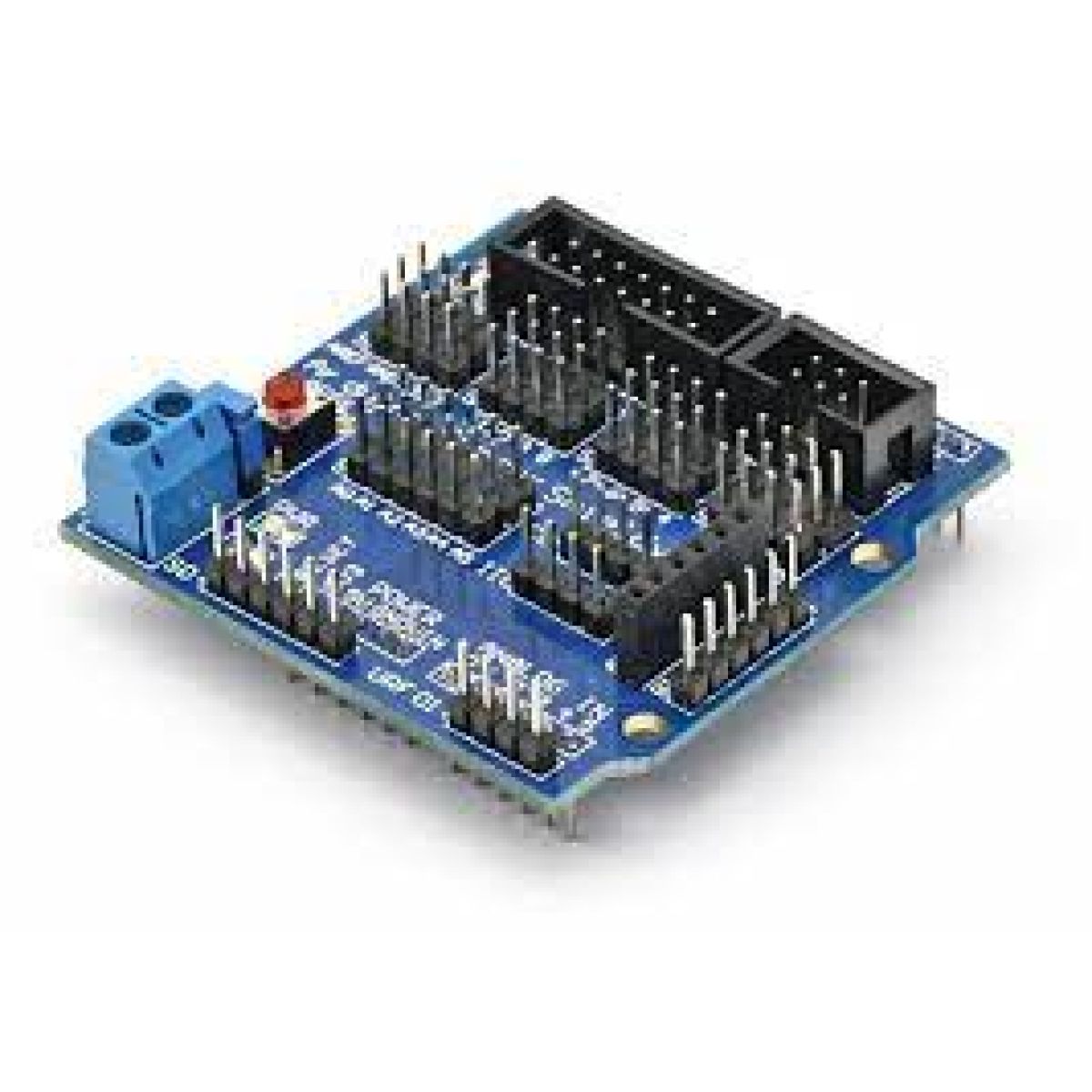

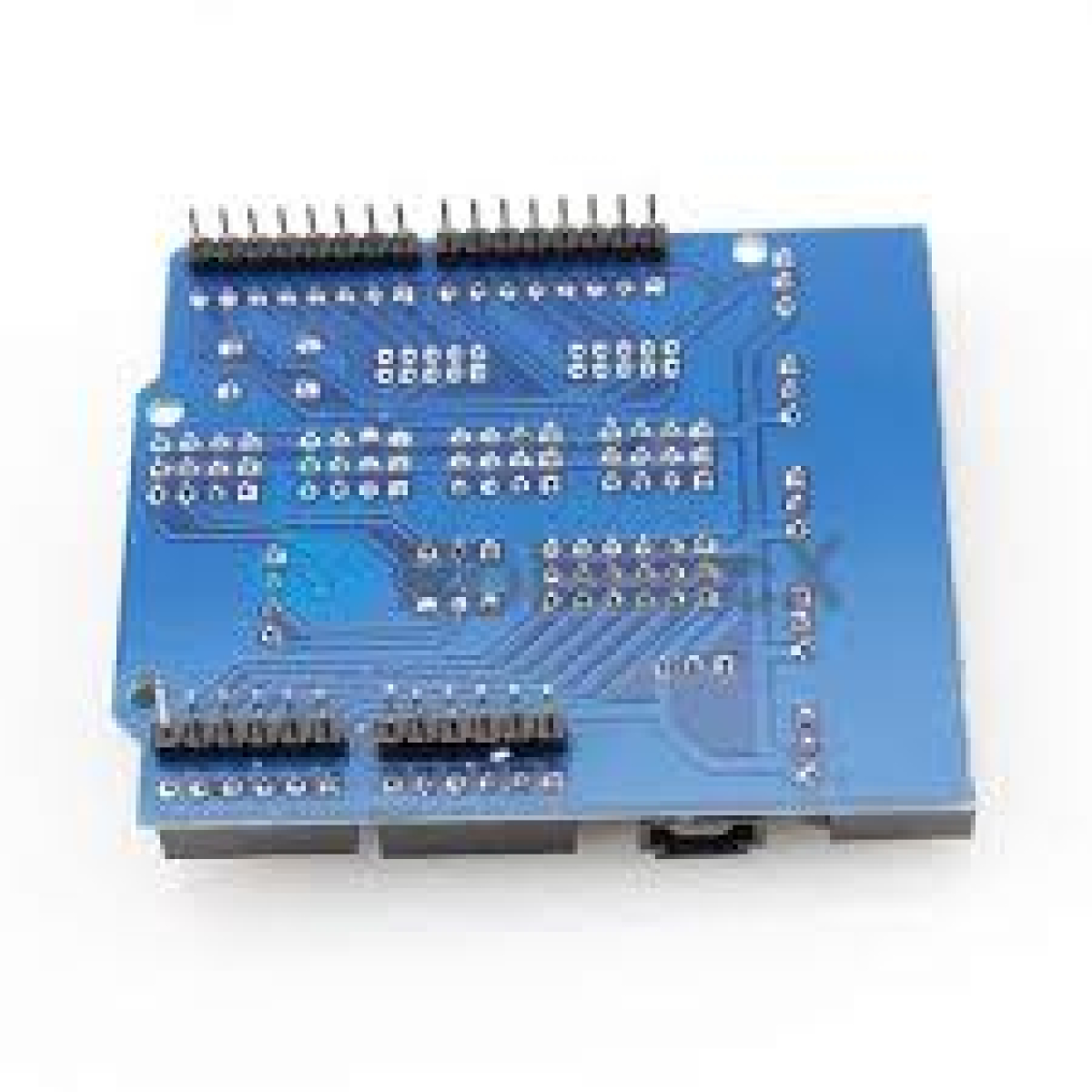

The latest Sensor Shield V5 Expansion Board For Arduino is produced by ALSRobot. This Sensor Shield expansion board to retains the advantages of version V4.0 on the basis of stack design, PCB Immersion Gold processing technology. newly added many kinds of interface, for example, IIC interface, 32 channels servo motor interface, Bluetooth communication module interface, SD Card communication module interface and so on, more convenient.
Sensor Shield allows you to connect to various modules like SENSORS, SERVOS, RELAYS, BUTTON, POTENTIMETER and many more directly to your ARDUINO through this Sensor Shield.
Each functional module has buckled port with VCC, GND, and Output, which has the corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.
You can easily connect with usual analog sensors by using this expansion board, such as ray sensor. If you support by this expansion board and the corresponding circuit module, you only need to combine Arduino and Sensor module by using special cables, because concrete circuit details achieve by corresponding sensors module, so you only need to consider that how to read data coming from the sensor by the program in Arduino.
