UNI-T 890D+

Name: UNI-T 890D+
SKU: 6289
Availability: InStock

USES:

1. Electrical switchboards 2. HVAC systems 3. Electrical circuit faults detection 4. Installation or maintenance of electronics/factory equipment 5. Electronics component development, circuit board design 6. Users who need to distinguish between neutral/live wire frequently

Add to wishlist

Compare

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

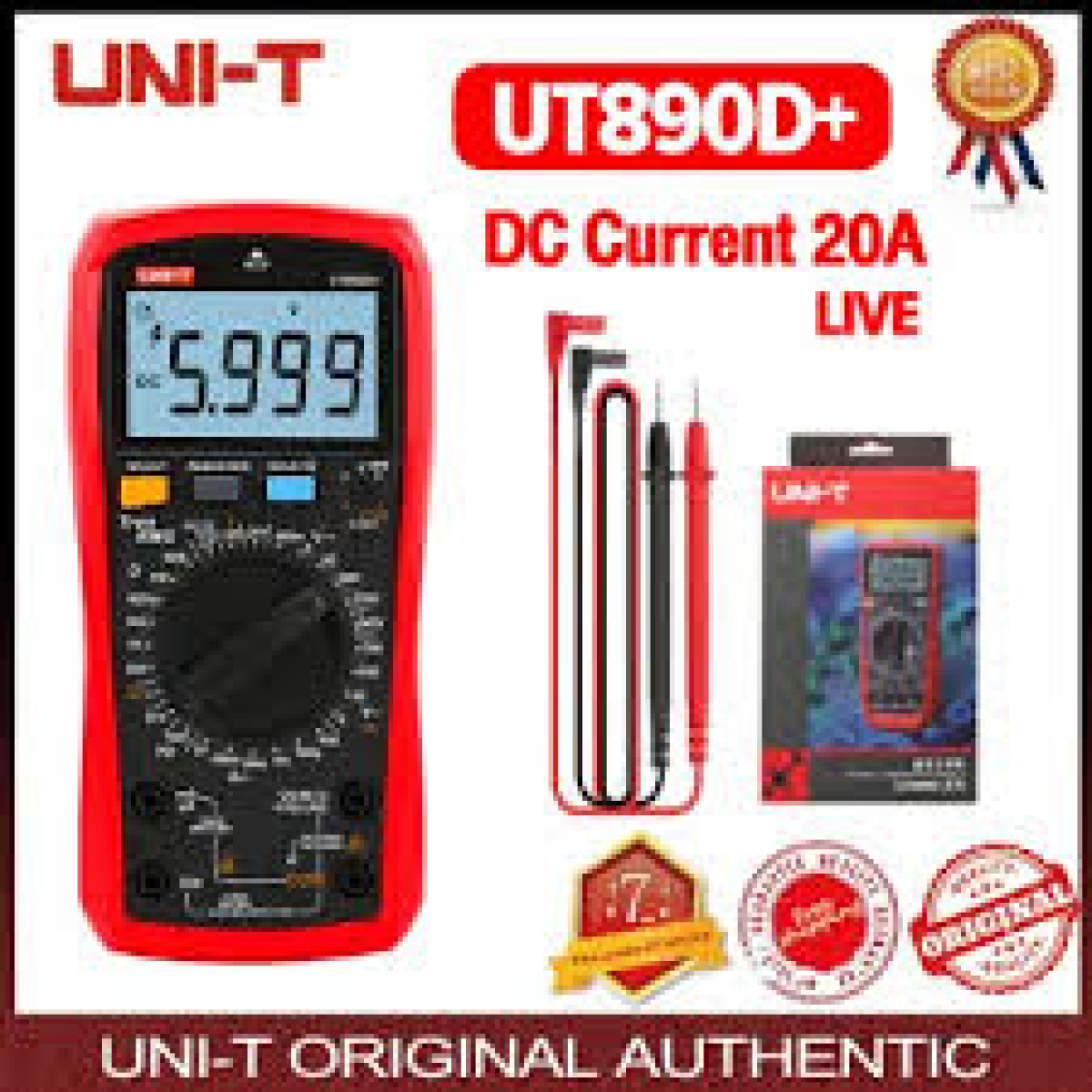

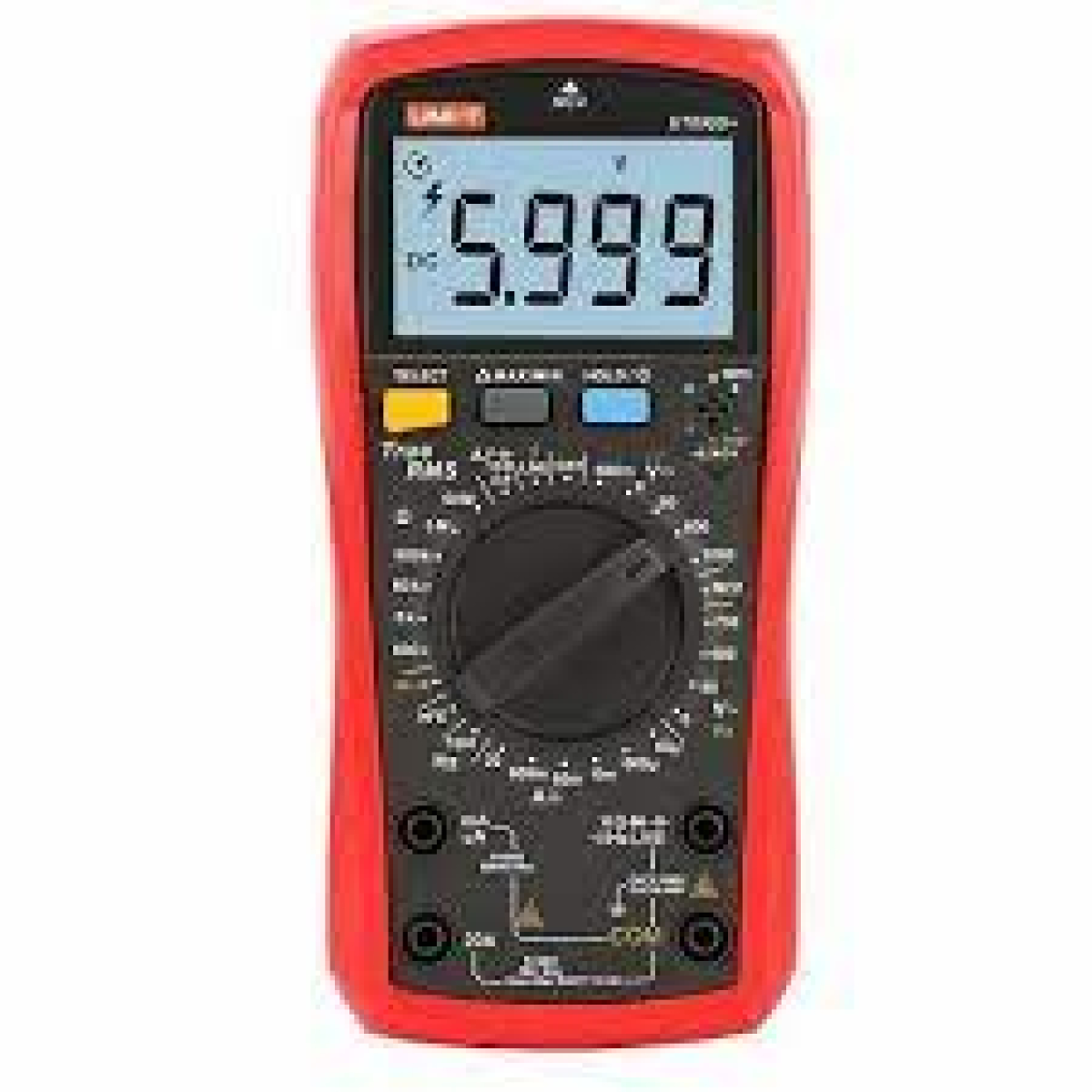

The UT890D+ 6000-count true RMS digital multimeters are designed with large LCD display.
The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.

Additional information

DC Voltage	600mV/6V/60V/600V/1000V ±(0.5%+2)
AC Voltage	6V/60V/600V/750V ±(0.8%+3)
ACV Frequency	10Hz～10kHz ±（0.1%+5)
DC Current	60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)
AC Current	60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)
Frequency	9.999Hz～9.999MHz ±(1.0%+5)
