TYPE C TO DIP CONVERTER

SKU: HW-189
  • VCC Positive pole of power supply
  • SBU1 Sideband usage
  • SBU2 Sideband usage
  • DP1 USB 2.0 differential signal, position 1, positive
  • DP2 USB 2.0 differential signal, position 2, positive
  • CC1 Configure channels for identification and control
  • CC2 Configure channels for identification and control
  • DN1 USB 2.0 differential signal, position 1, negative
  • DN2 USB 2.0 differential signal, position 2, negative
  • GND Negative pole of power supply

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The USB Type-C connector is intended to supersede a wide range of existing USB connectors.

It is reversible and can serve in both USB host and USB device roles, allowing either end of a cable to be plugged into a receptacle with either side up, and it can support negotiation of increased power and alternate uses of the USB interface wires.

The USB-C connectors 24 tightly-spaced pins make it difficult to use in a hobby project or prototype design.

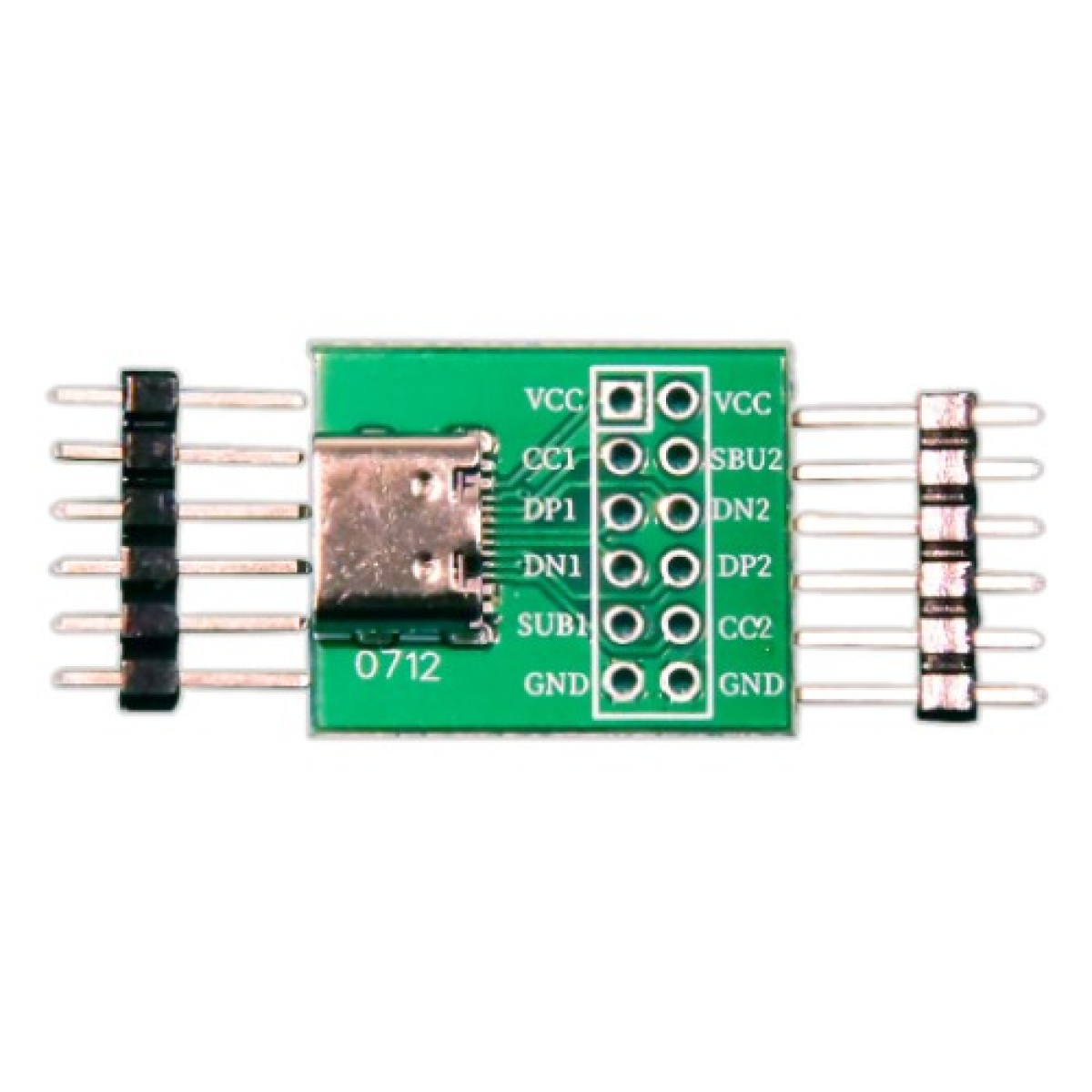

This breakout board helps by providing access to the connectors pins for power (VBUS and GND), USB 2.0 differential data (D+ and D-), Configuration Channel and Sideband Use.

Additional information
Current:max

3A

Base Material

FR4

Board Thickness

1.6MM

SIZE

17.6 * 21.5*5mm
