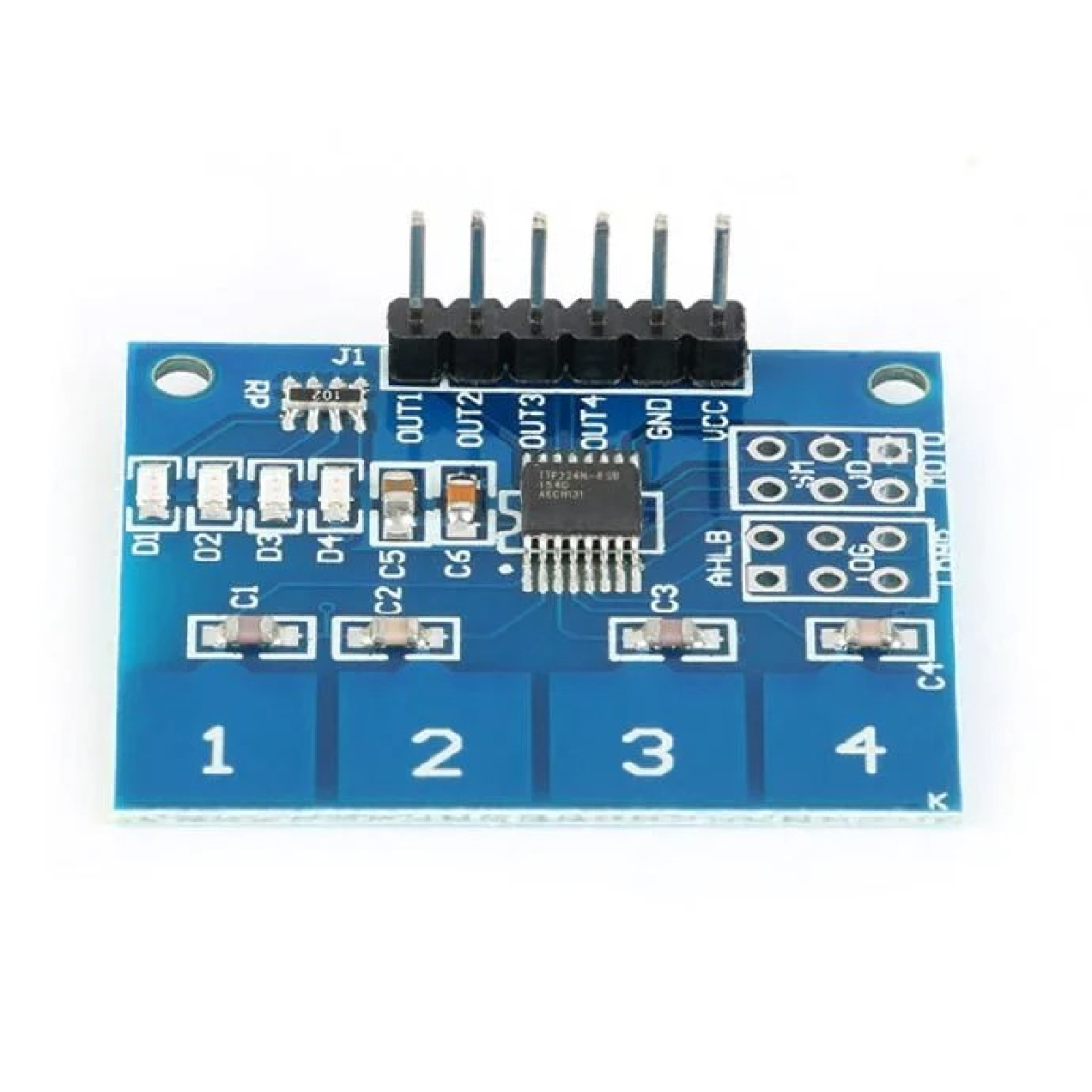

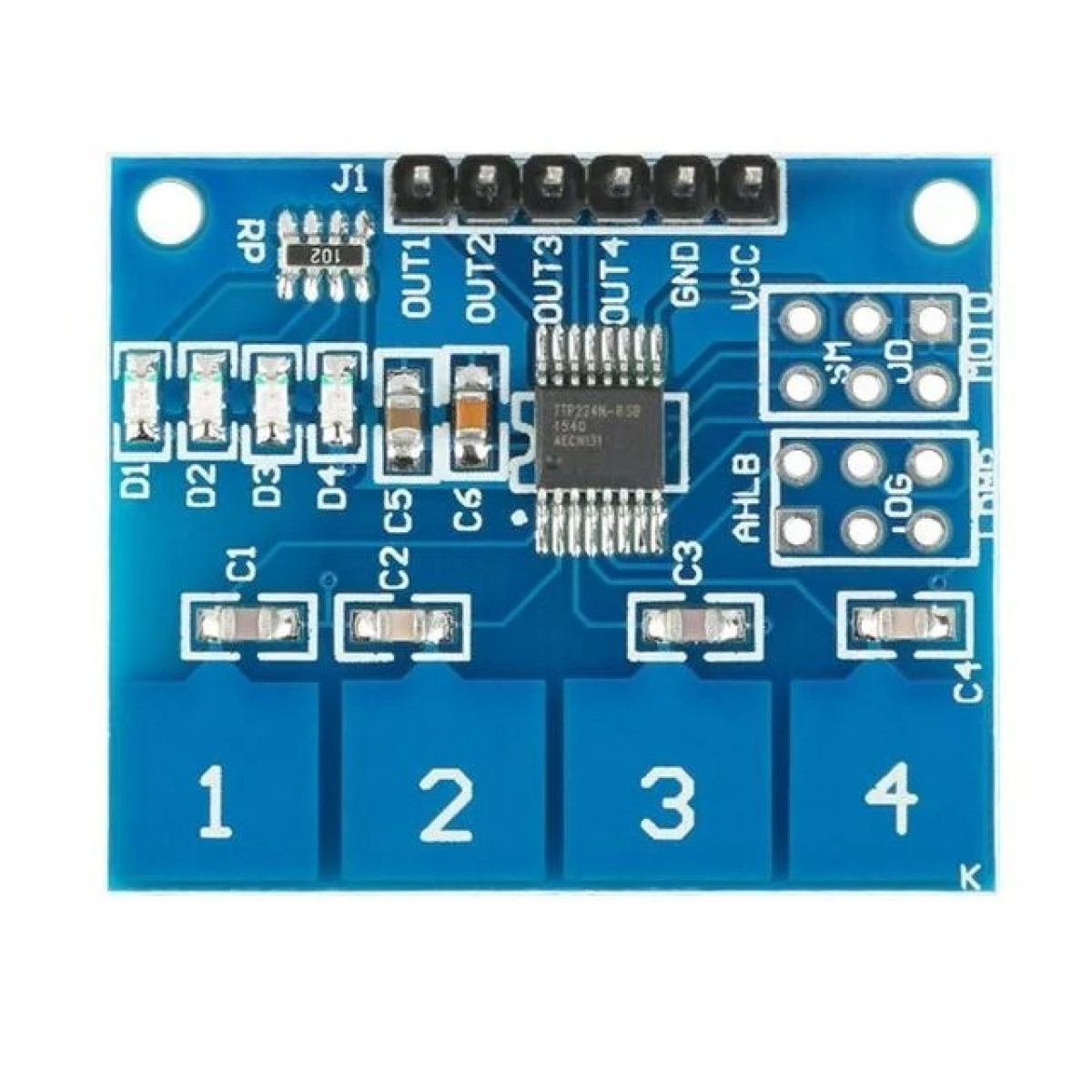

TTP224 4-way Capacitive Touch Module

SKU: TP-224

This is a 4 switch digital touch sensor with capacitive sense technology, the TTP 224 IC offers capacitive sense input feed designed for touchpad control, followed by a 4- finger-sized touchpad. The board has a jumper’s arrangement to change the keypress output mode in Timed or Toggle, Active High or Active Low. Separate jumper adjustments are provided for changing the response time of the pressed key: 60mS fast mode or 160mS in Low power. The output side of the board has 6 pin headers, with 4 pins to be connected with the digital I/O of any microcontroller board (Arduino, ARM STM32).

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Onboard TTP224 capacitive touch sensor IC 4 keys
  2. 4 board-level status indicator
  3. Working voltage: 2.4V-5.5V
  4. Advanced Pins breakout, so that the output mode and working mode selectable.
  5. Low power selection
Additional information
Operating Voltage (VDC)

2 ~ 5.5

Max. Operating Current (mA)

0.009, 0.009

Output Response Time

60mS @ Fast Mode
160mS @ Low Power Mode

Shipping Dimensions

6 X 8 X 2 CM
