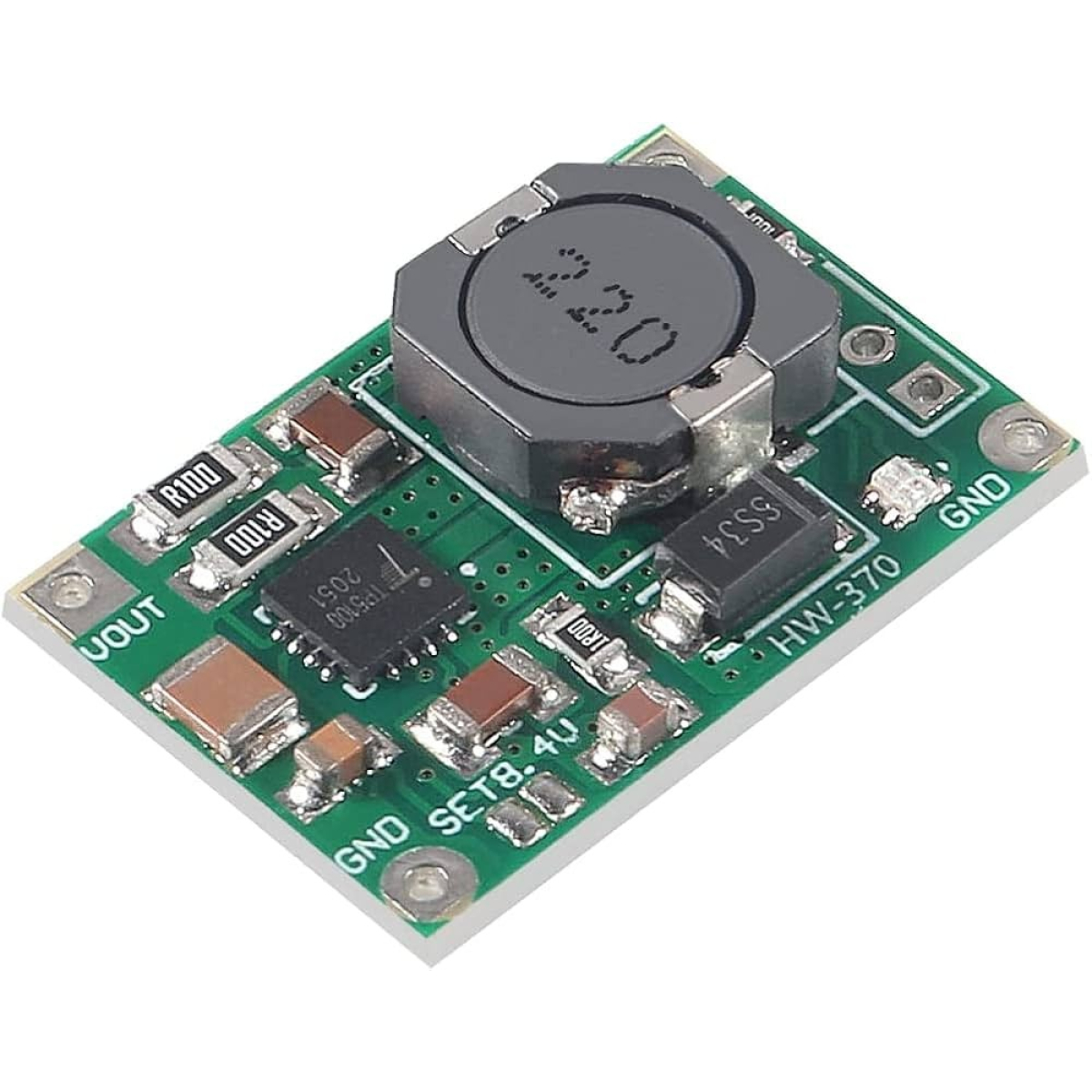

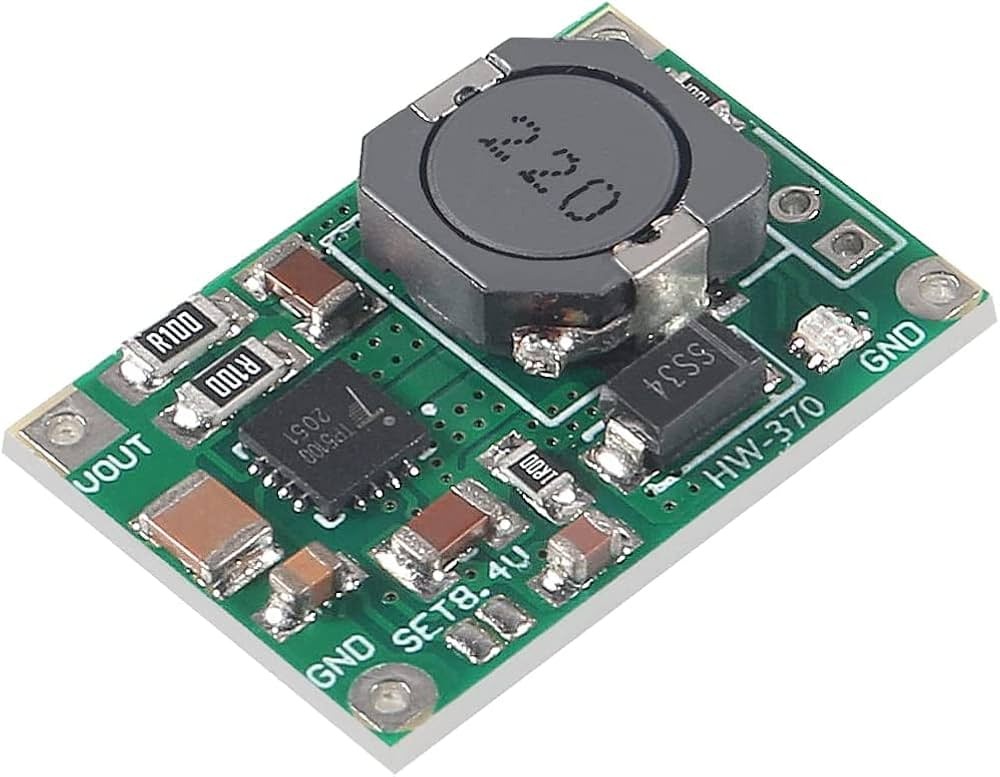

TP5100 MODULE

SKU: HW-370

Features:

  1. Input voltage: 5-15V DC power supply.

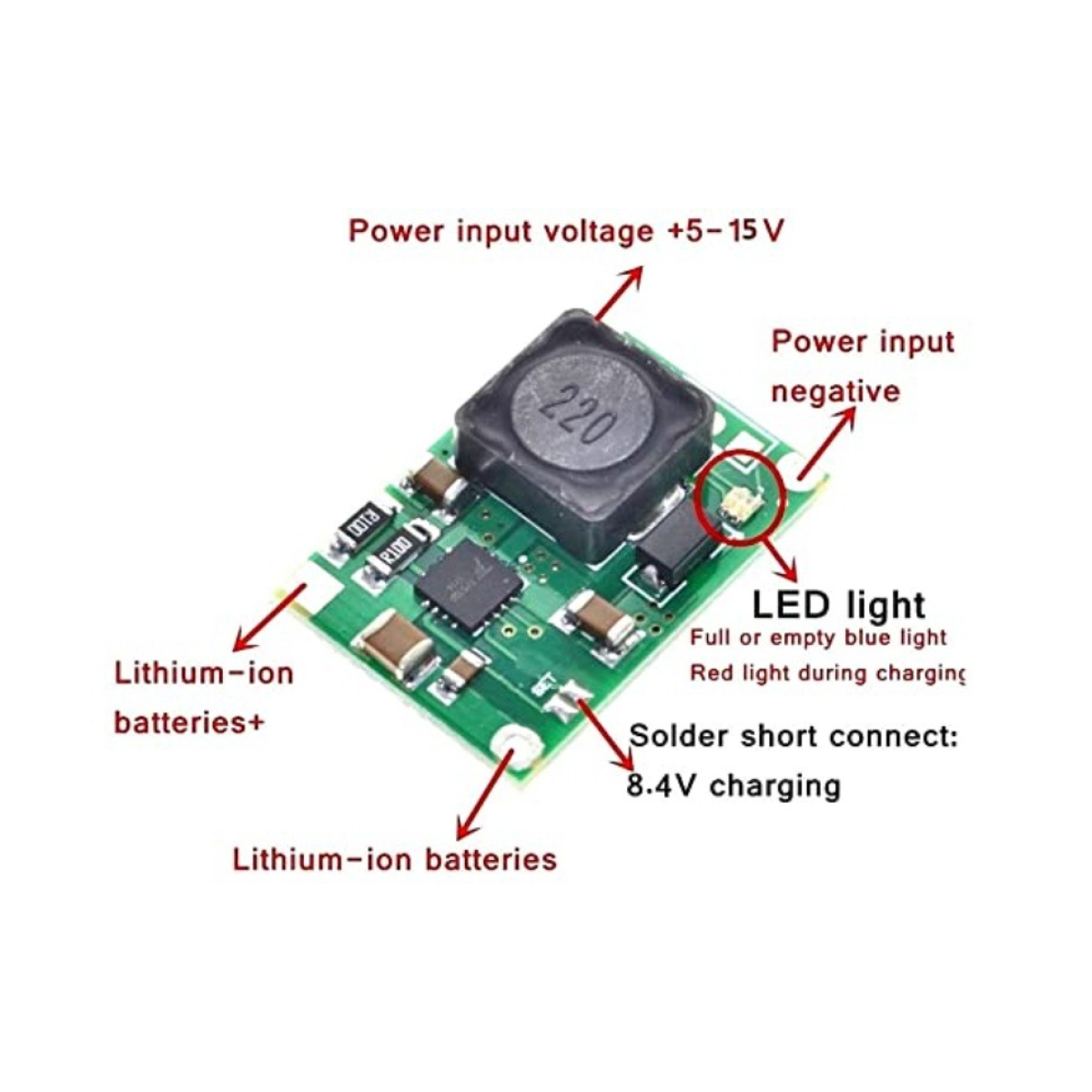

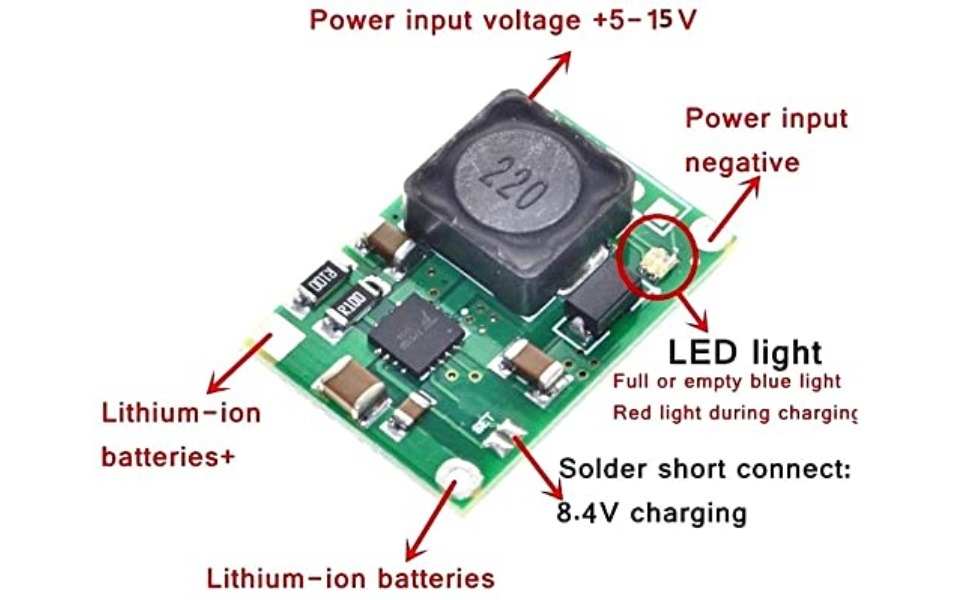

  2. Charge status: full and unloaded blue lights, charging red.
  3. Double 8.4v / 4.2v lithium rechargeable single .
  4. Programmable charge current. 0. 1A-2A .
  5. Programmable steady precharge current 10% -100%.
  6. Wide operating voltage, maximum reach I8V.
  7. Red and green LED charge status indicator.
  8. Chip temperature protection, overcurrent protection, under voltage protection.
  9. Battery temperature protection, reverse battery shutdown, short circuit protection.
  10. Switching frequency 400Khz, usable inductance 20uH and more.
  11. PWR_ON Power battery for switching control.

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

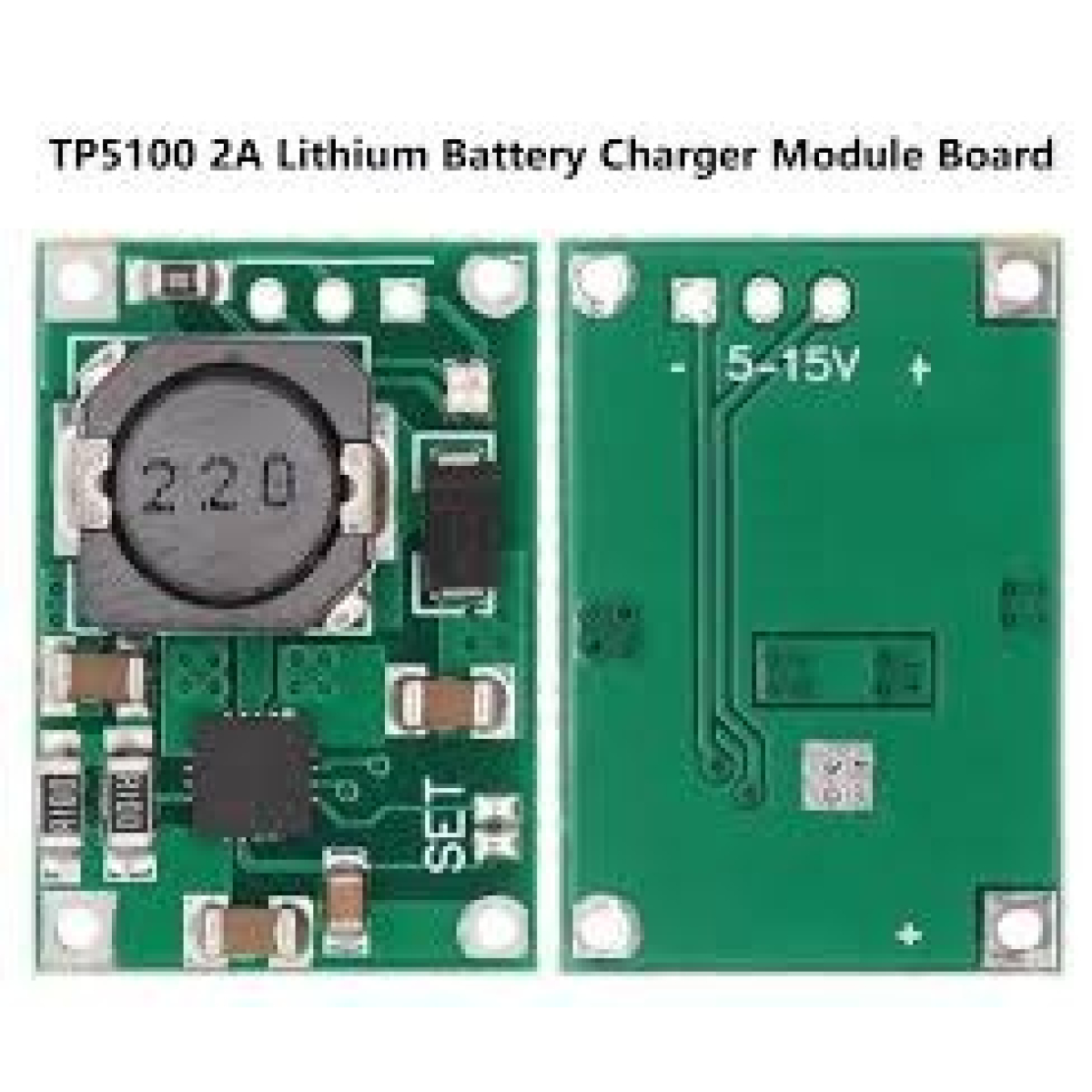

TP5100 4.2v and 8.4v Dual One/Two Battery Protection Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under-voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintains a smaller amount of heat.
TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and another external Schottky diode.
Additional information
Input voltage

5-15V DC power supply.

Double lithium rechargeable single

8.4v / 4.2v

Programmable charge current.

0. 1A-2A .

Programmable steady precharge current

10% -100%.

Wide operating voltage

maximum reach I8V.

Switching frequency

400Khz, usable inductance 20uH and more.
