Tp4056 Module – Type C

Name: Tp4056 Module - Type C
SKU: HW-373
Availability: InStock

SKU: HW-373

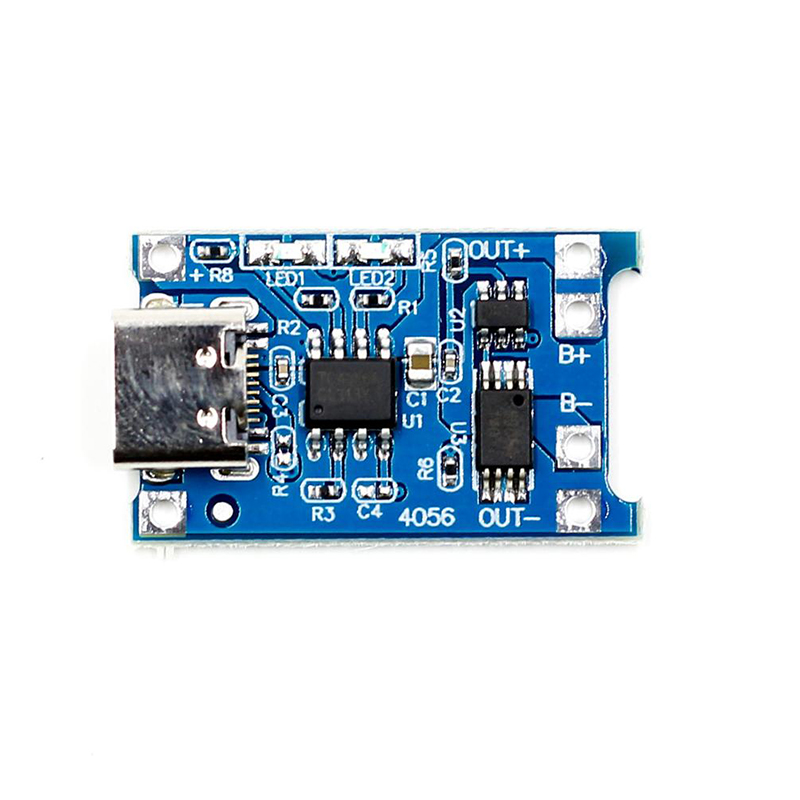

This TP4056 1A Li-ion lithium Battery Charging Module With Current Protection – Type C is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.

Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time.

Add to wishlist

Compare

15 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Led indicator: Red is charging Green is fully charged.
Current Protection: Yes
Inversed polarity: NO.
Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
Fully machinery automated processing, all patch parts manufacturing.
Connect Type C cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
Connect cell to charge to B+/B- pads on the right-hand side of the module.
A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
Important! Disconnect load when charging
The red LED indicates charging in progress, the green LED indicates charging has finished.
Never charge your battery at a rate greater than 1C.
