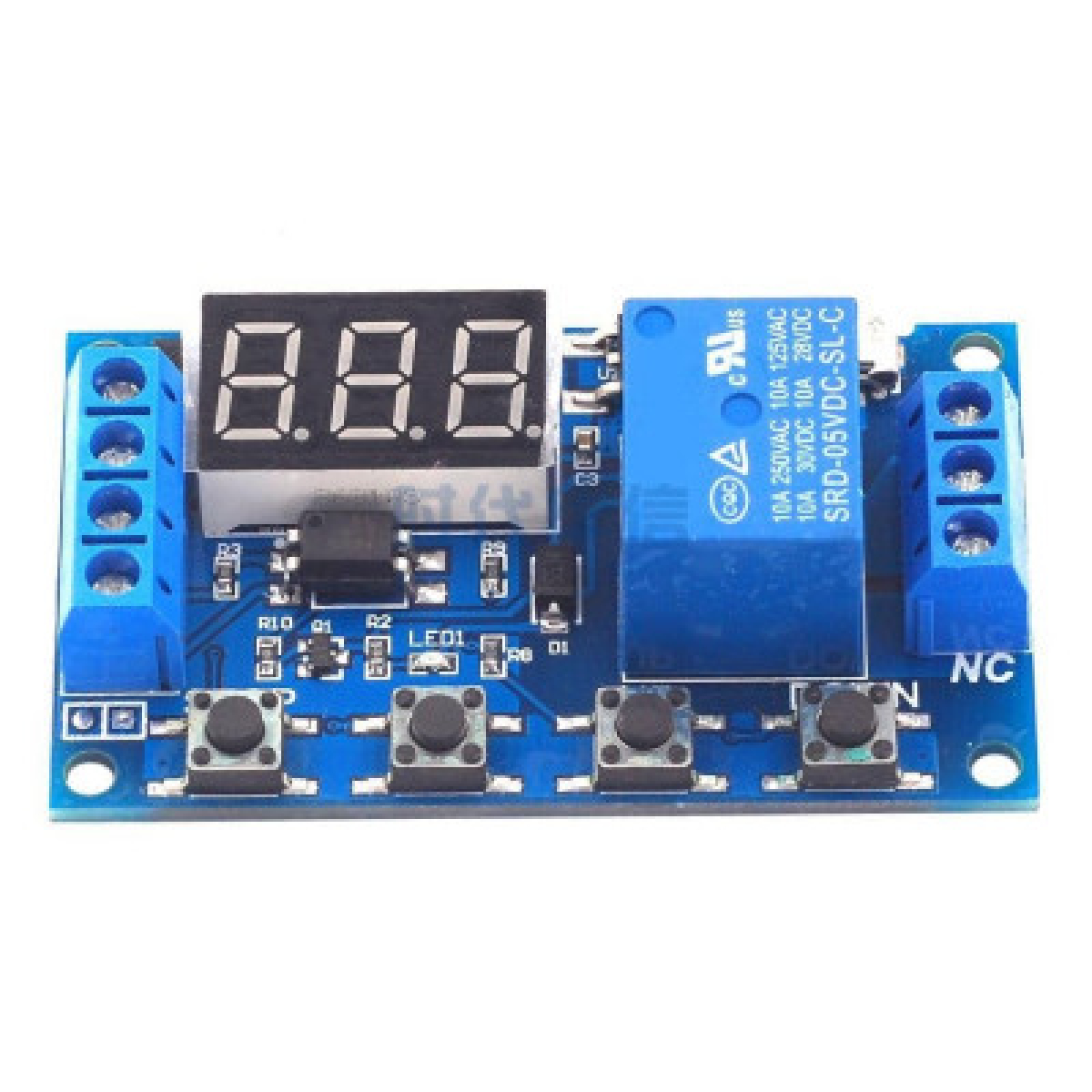

Timer Relay with Display

Name: Timer Relay with Display
SKU: HW-521
Availability: InStock

SKU: HW-521

It is 6-30V 1-Channel Delay Power Relay Module with Onboard Adjustable Timing Cycle Switches with Digital LED display It is mostly used in Home Automation Delay Timer Control Switch Module Timer Controller. The Module operates at Operating voltage range of 6-30V, also it supports micro USB 5.0V power supply. Output capability: Can control the device within DC 30V 5A or AC 220V 5A. It can be applied to many fields as there is a wide range of application.

Add to wishlist

Compare

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Optocoupler Isolation: improve the anti-interference ability, after the parameter setting, it will be in memory forever.
Wide voltage power supply (6 ~ 30V), supports micro USB 5.0V power supply, easy to use.
The interface is clear, simple, powerful and easy to understand, can meet almost all your needs.
With emergency stop function (STOP button) and reverse polarity protection which can avoid burning by reverse connection.
Adding sleeping mode, when the mode is enabled, if there is no operation within 5 minutes, the display will be turned off automatically, press any button will wake it up;
You can set different parameters of OP, CL, LOP, which are independent of each other and are stored separately;
All the parameter settings will be stored automatically when power is off.
