TDS SENSOR INDIAN

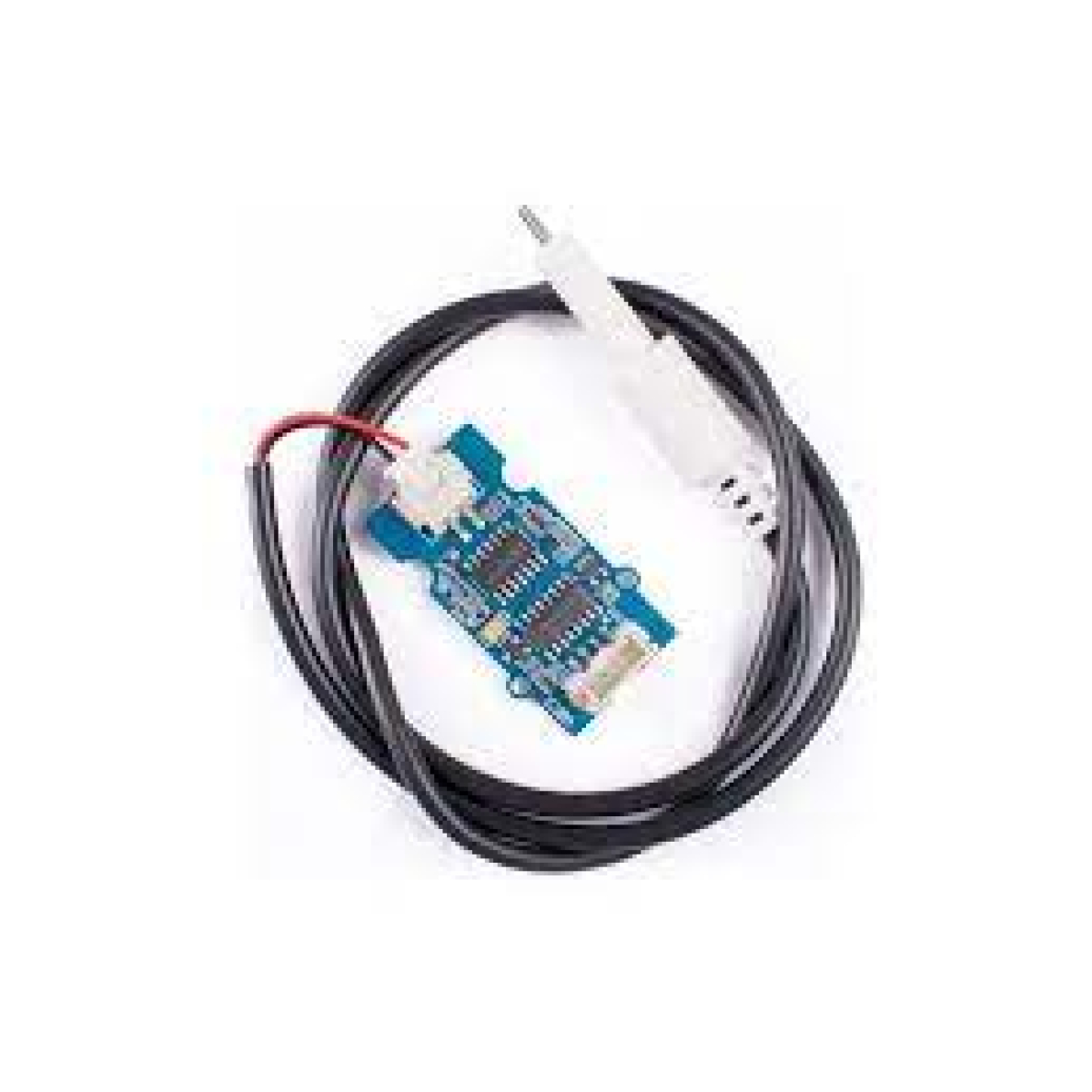

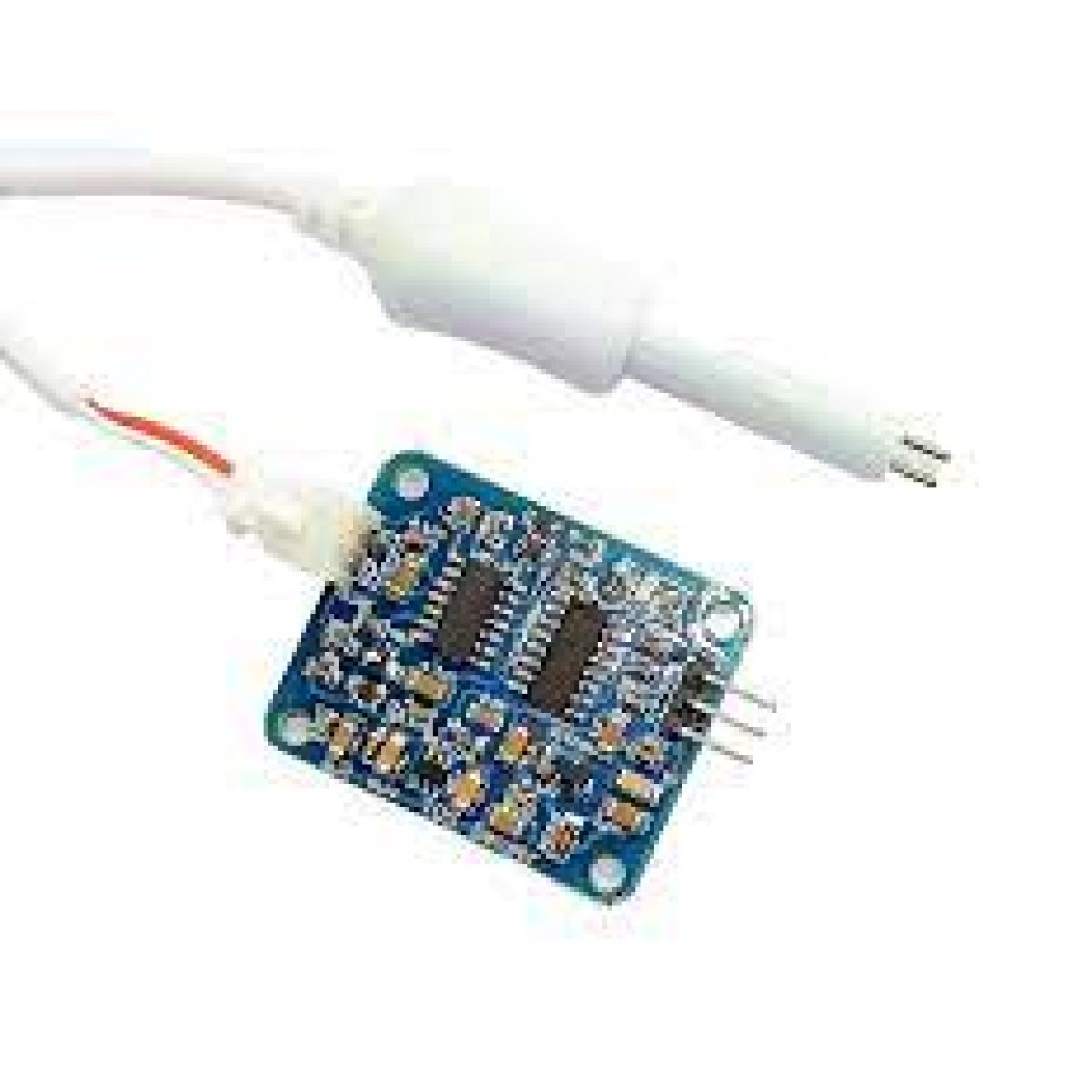

This is a SeeedStudio Grove TDS Sensor/Meter For Water Quality.

The Grove – TDS Sensor detects the Total Dissolved Solids (TDS) levels in the water which can be used to indicate the water quality. The Grove – TDS Sensor can be applied in water quality applications such as TDS meter, well water, aquarium, hydroponics, etc.

It supports 3.3/5V input voltage and 0 ~ 2.3V Output Voltage making it easy to be compatible with all Arduino Boards. The sensor also provides a waterproof probe, making the testing process much easier to handle.

Add to wishlist
Compare
18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Analog Signal, easy to implement
  2. Power indication LED
  3. Support 3.3/5V Input Voltage
  4. Good Arduino Compatibility
  5. 0 ~ 2.3V Output Voltage can be easily implemented in 3.3/5V control system
  6. Waterproof TDS Probe
  7. The Waterproof TDS probe cannot be used in water above 70°C.
  8. The sensor cannot be used to measure flowing water.
  9. The sensor cannot be used to measure water with high pollution concentration.
  10. The Grove sensor itself is not waterproof.
Additional information
Output Voltage

0 ~ 2.3V
Working Current

3 ~ 6mA
TDS Measurement Range

~ 1000ppm
Waterproof Probe Cable Length

60cm
