Straight Bar Load Cell 40Kg

Applications

  • Electronic platform scale
  • Digital scale
  • Parcel post scale
  • Electronic balance

17 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

This Load cell can be used to measure the weight of objects between 0 and 40kg. This straight bar load cell (sometimes called a strain gauge) can translate up to 40kg of pressure (force) into an electrical signal. Each load cell can measure the electrical resistance that changes in response to, and is proportional to, the strain (e.g. pressure or force) applied to the bar. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

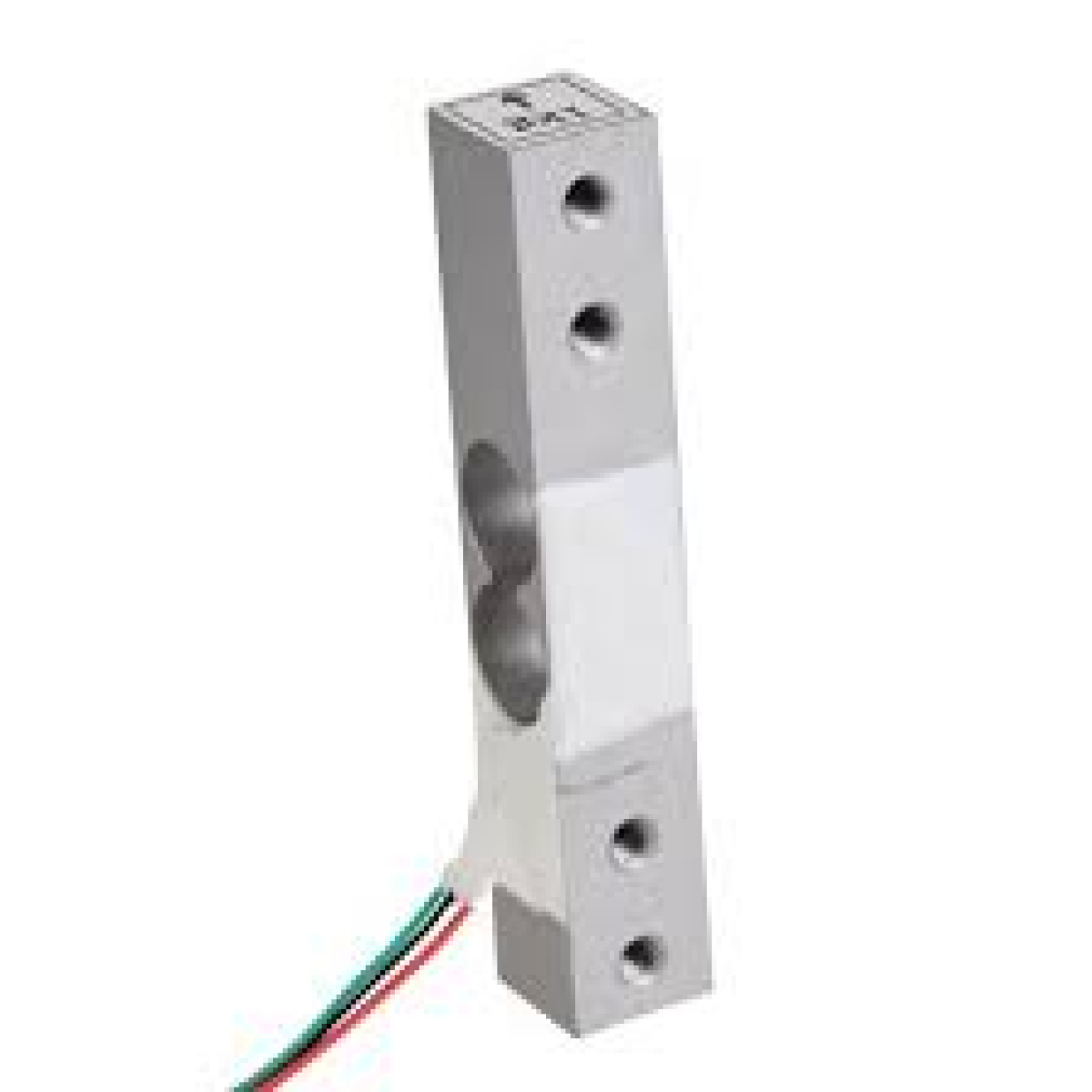

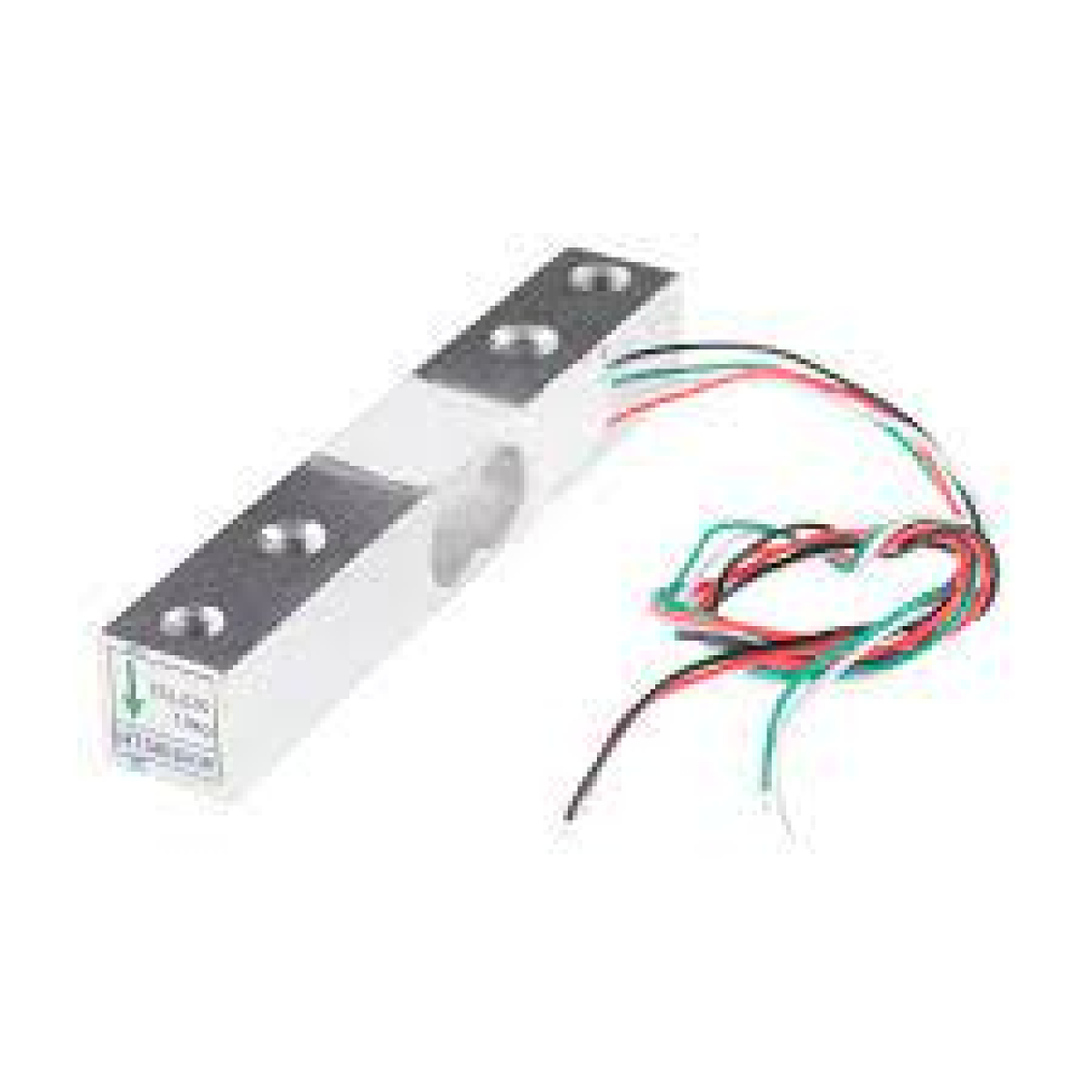

Each straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 40kg. These load cells have four strain gauges that are hooked up in a Wheatstone bridge formation. The color code on the wiring is as follows: red = E+, green = O+, black = E-, and white = O-. Additionally, these load cells feature through holes for mounting purposes.

Use this sensor using our HX711 Breakout Board to amplify its signal and connect it directly to an Arduino/Raspberry Pi or any other general-purpose microcontroller.

Additional information
Rated output(MV/V)

2.0±0.15

Temperature effect on sensitivity(%RO/°C)

0.0016

Temperature effect on zero(%RO/°C)

0.003

Operating temperature range(°C)

-35~+80

Method of connecting wire

Red(+),Black(-),Green(+),White(-)
