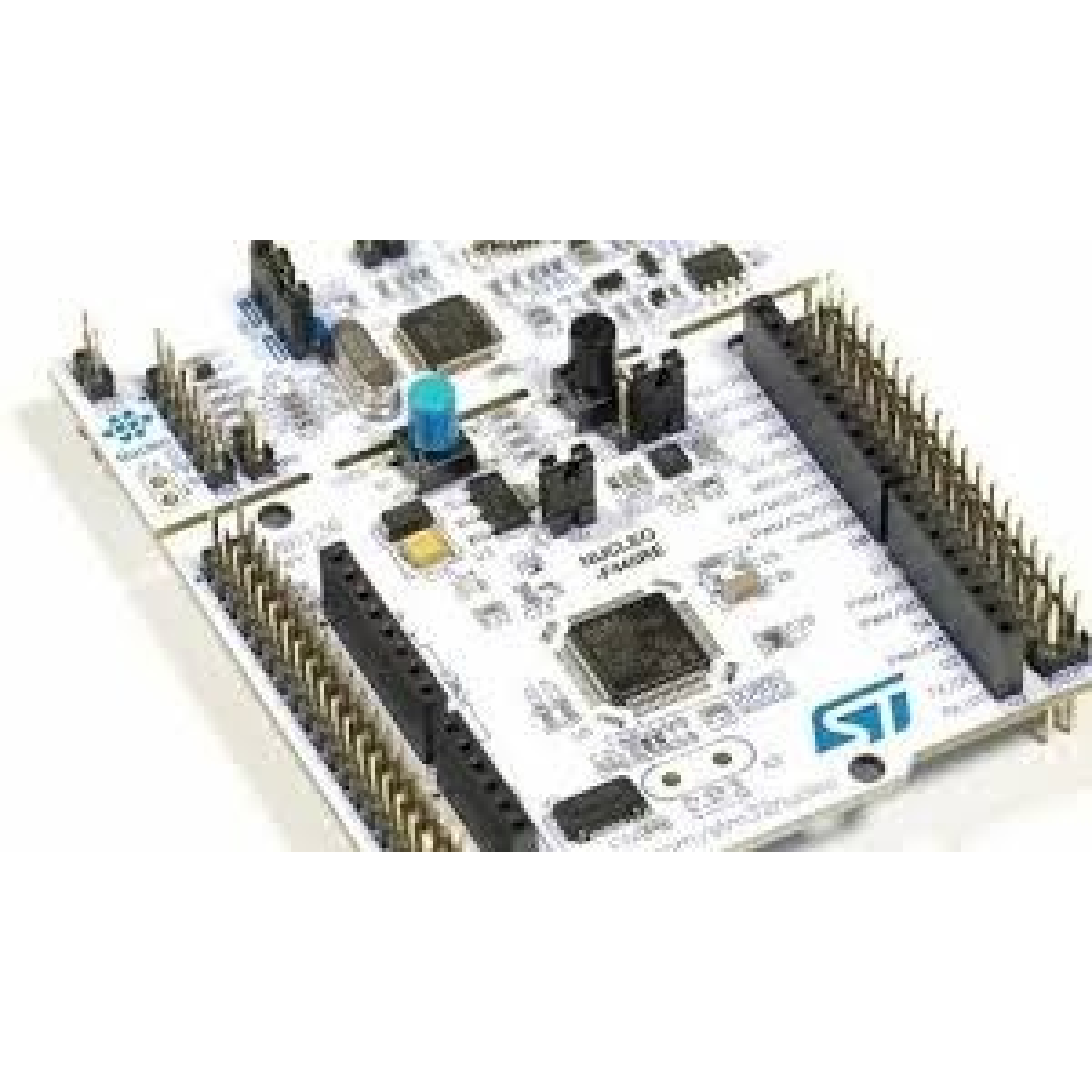

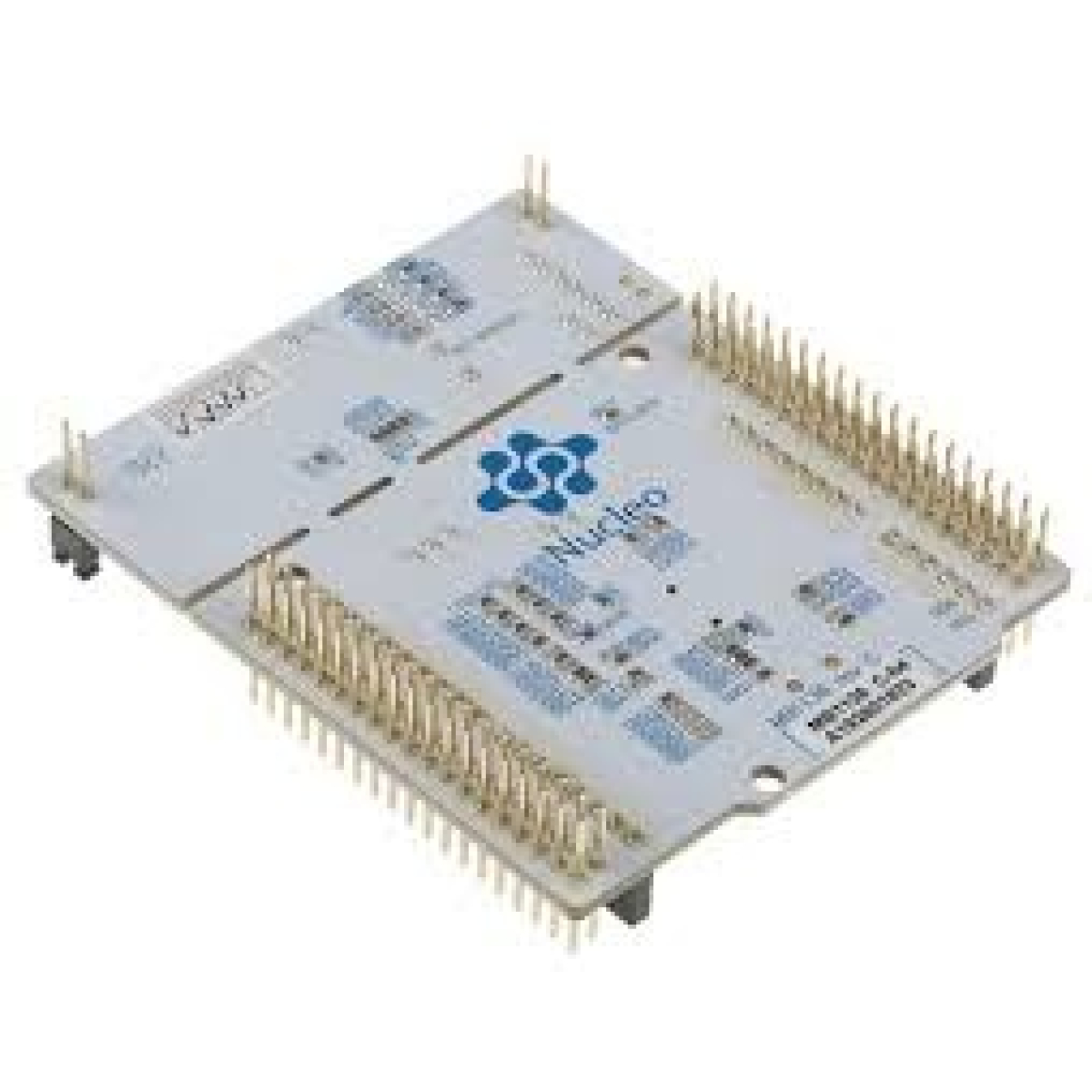

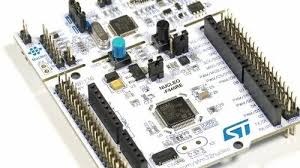

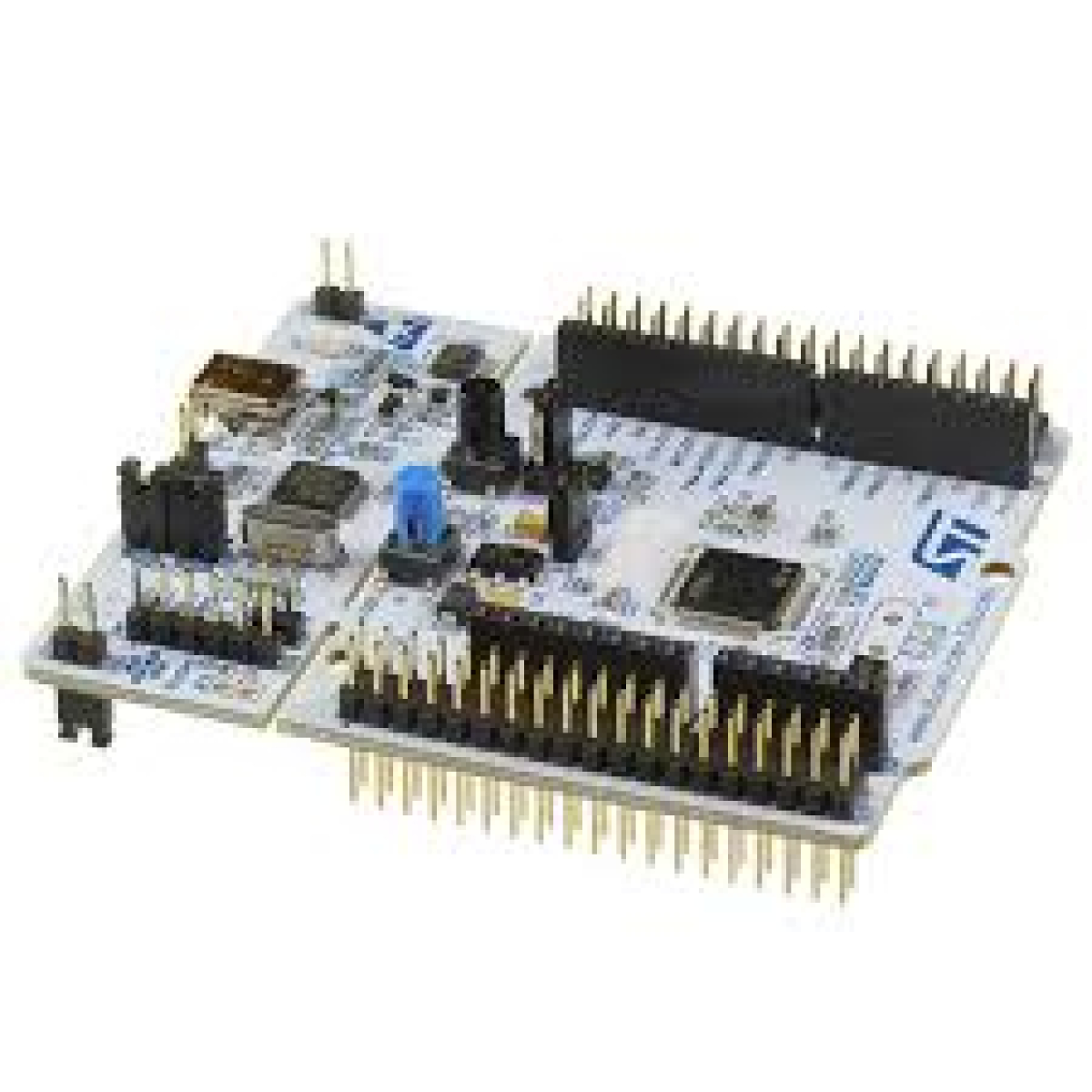

STM32 Nucleo-64 STM32F446RE Development Board

Features:

STM32 microcontroller in QFP64 package
Two types of extension resources: Arduino Uno V3 connectivity, ST morpho extension pin headers for full access to all STM32 I/Os
On-board ST-LINK/V2-1 debugger/programmer with SWD connector: Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply: USB VBUS or external source(3.3V, 5V, 7 – 12V), Power management access point
Three LEDs: USB communication (LD1), user LED (LD2), power LED (LD3)
Two push-buttons: USER and RESET
USB re-enumeration capability. Three different interfaces supported on USB: Virtual COM port, Mass storage, Debug port
Support of wide choice of Integrated Development Environments (IDEs) including IAR, ARM Keil, GCC-based IDEs

11 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Unleash your creativity by implementing new concepts with STM32 microcontroller series development board offering wide scope in developing and testing applications with on-board support of 72 MHz Cortex-M4 series microcontroller and flash memory of 512Kb.

The STMicroelectronics NUCLEO-F446RE – STM32 Nucleo-64 STM32F446RE Development Board is a mainstream level board for testing large variety of development application with unique hardware and software features, integrating ST-Link debugger/programmer with separate selection-mode switch which enable the board to be used as a standalone ST-LINK/V2-1.

The board also dual open platform support by integrating Arduino UNO V3 and ST morpho extensions, which opens wide scope for implementing specialized application work on Arduino platform and STM32 board. The STM32 development series board comes with comprehensive software HAL library provide extensive range of development environments including IAR EWARM, Keil MDK-ARM, mbed and GCC/LLVM-based IDEs and ARM mbed on-line resources for many automation and control integrated solutions.
