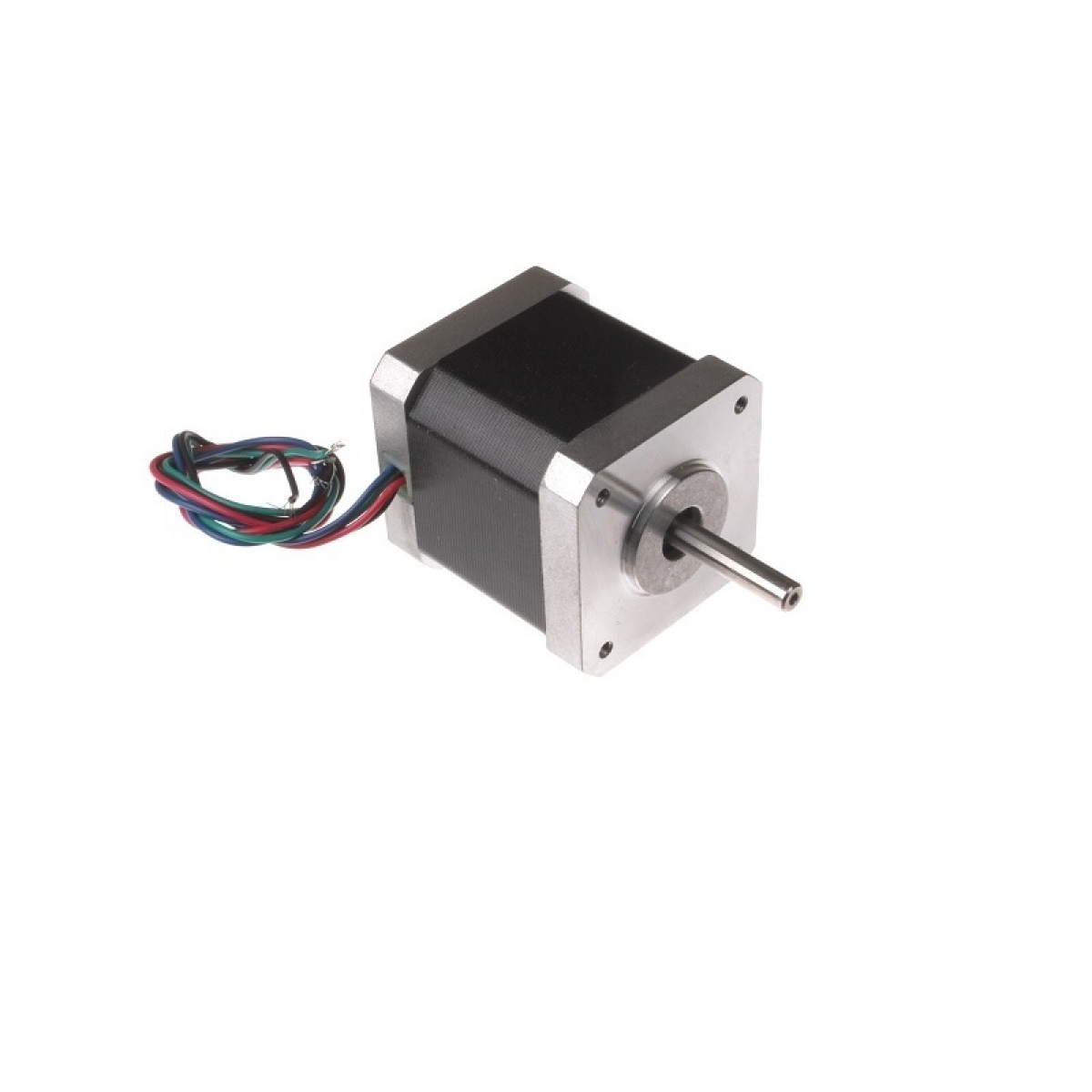

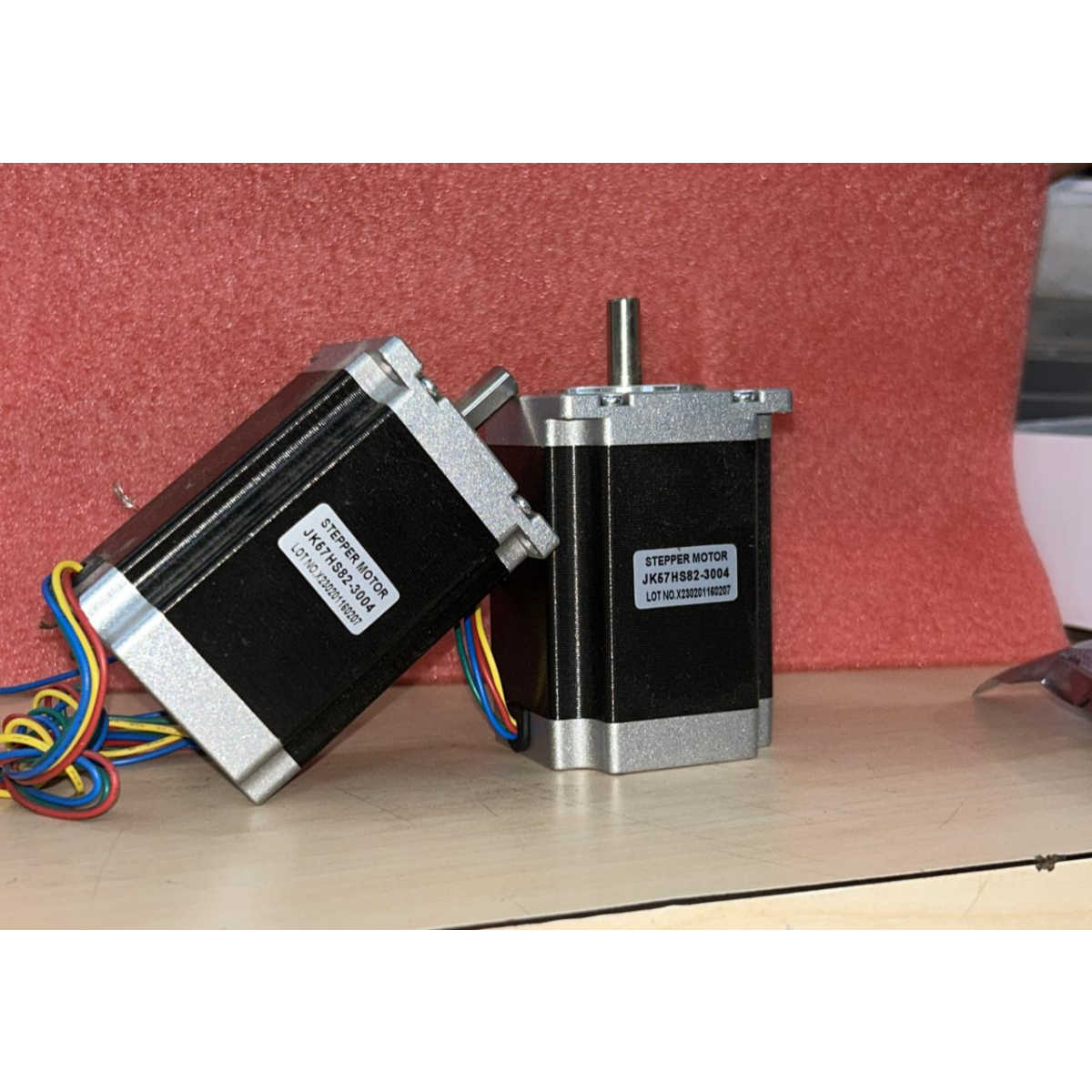

STEPPER MOTOR NEMA23 76MM 18.9 KGCM

SKU: MOTS23B

They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry. The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip. Tags, 57HS76-2804, NEMA23 18.9 kg-cm, NEMA23 20kg, NEMA23 20kg, NEMA Stepper Motor 20Kg, NEMA Motor 20Kg.

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The Nema17 1.89N-m Stepper motor can provide 1.89N-m of torque at 1.68A current per phase. The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The Nema17 1.89N-m Stepper motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver

  • The input pulse decides the rotation angle of the motor.
  • High accuracy of around 3 to 5% a step.
  • It provides good starting, stopping, and reversing.
  • Control of this motor is less costly because of the exclusion of complex control circuitry.
  • The speed is proportional to the frequency of the input pulses.
Additional information
Motor Type

NEEMA 23

Step Angle

1.8

Motor Body Length

76 mm

Operating Current

2.8A

Resistance

1.1 Ohm
