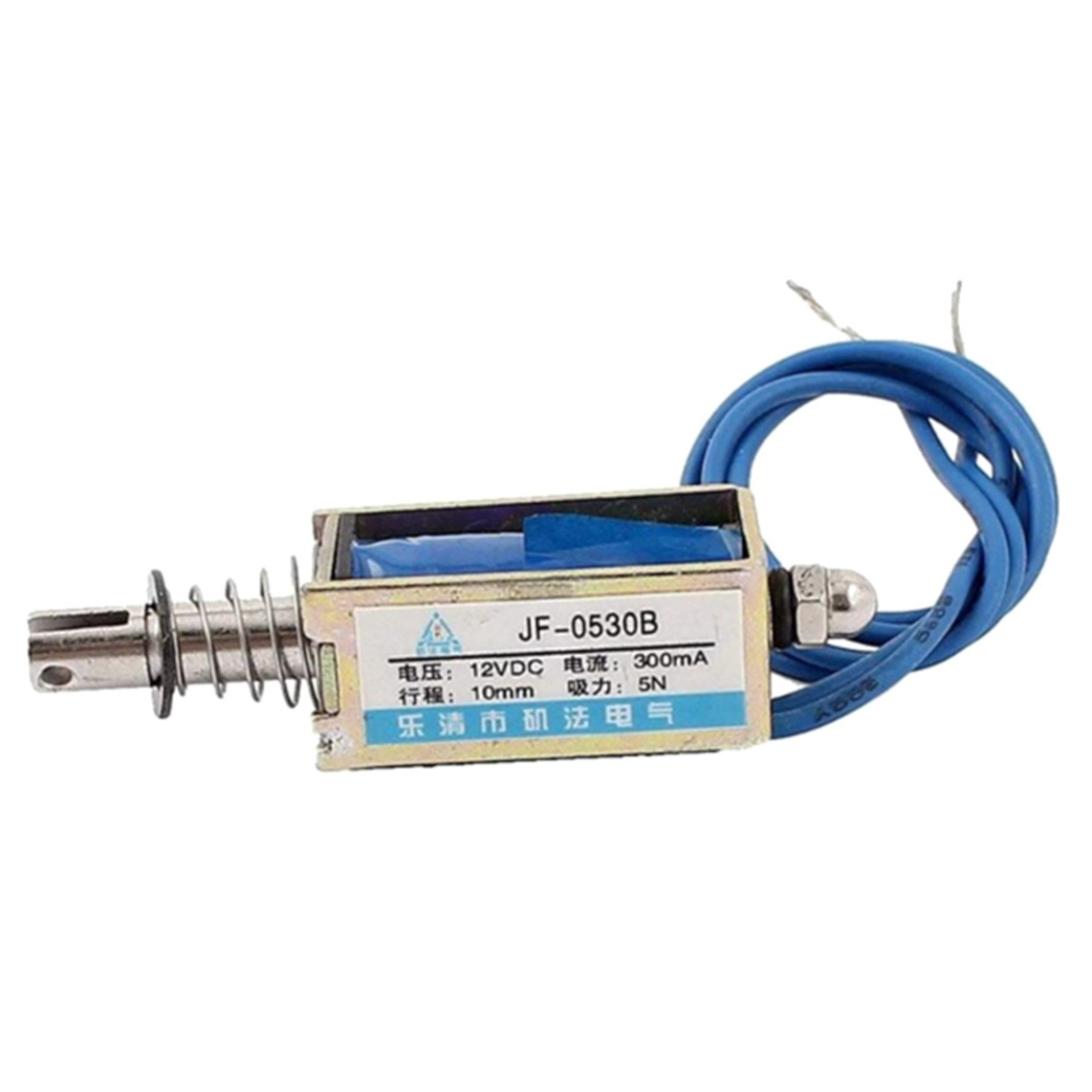

Solenoid Push Pull Jf0503 12v

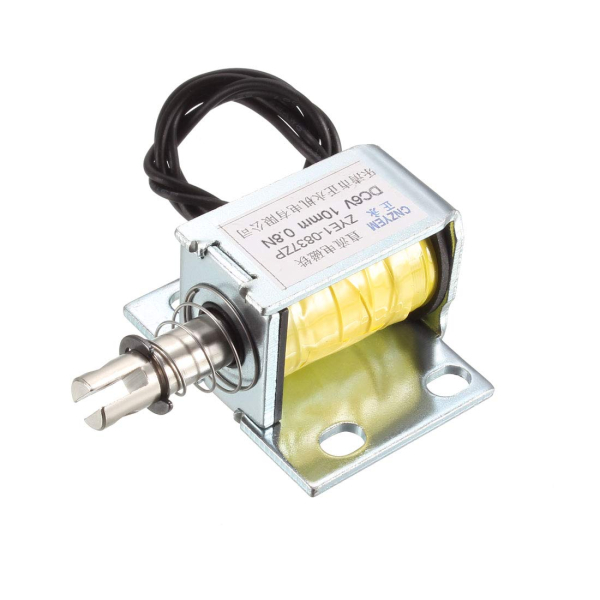

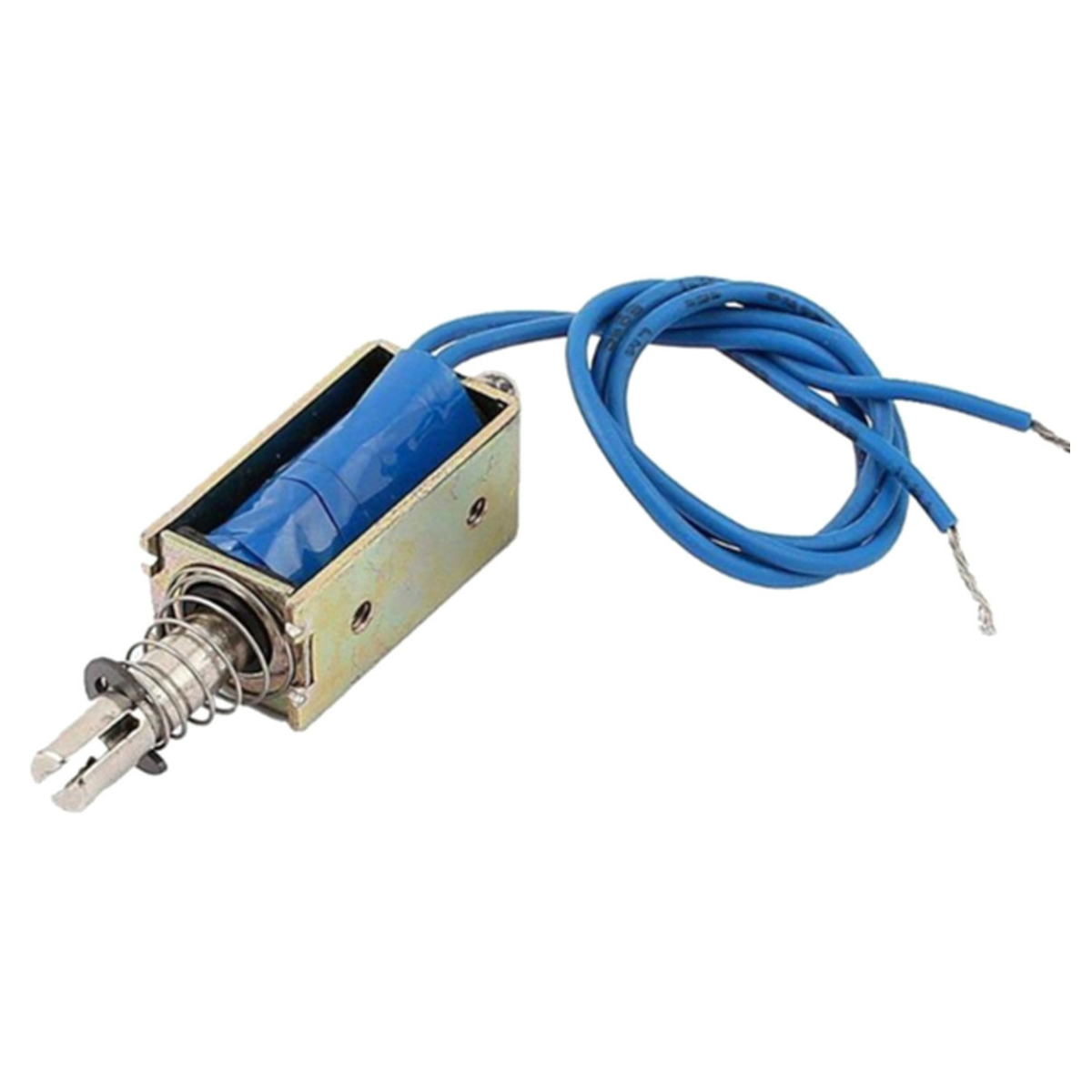

This solenoid in particular is fairly small, with a 30mm long body and a ‘captive’ armature with a return spring. This means that when activated with up to 6VDC, the solenoid moves and when the voltage is removed it springs back to the original position, which is quite handy. Many lower-cost solenoids are only push type or only pull type and may not have a captive armature (it’ll fall out!) or don’t have a return spring. This one even has nice mounting holes, it’s a great all-purpose solenoid.

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull (from one end) or push (from the other).

  • Widely used in automation equipment
  • Game Machines
  • Slot Machines
  • Ticket Vending Machines
  • Cash Register
  • Automatic Office Equipment etc.
Additional information
Rated Voltage

6V DC (you can use 5-7 DC volts, but lower voltage results in weaker/slower operation)

DC coil resistance

25 ohms

Torque

5N@6VDC

Size(L*W*H)mm

30*13*15
