SOLAR ENERGY MODULE

SKU: HW-102

Features:

Module Properties: non-isolated Buck-Boost constant current, constant voltage module (CC-CV) charging module
High-power constant current LED driver.
Battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.
Solar Panel, Wind generator voltage regulator, Car Power Supply.
Output Current: Rate 3A, Max 4A ( If more than 15W, please install the heat sink, this item do not include heatsink)
Constant current range: 0~2A (adjustable)
if use Solar as a power supply, please make sure the input power is 1.1 times the output power.

Add to wishlist

Compare

17 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

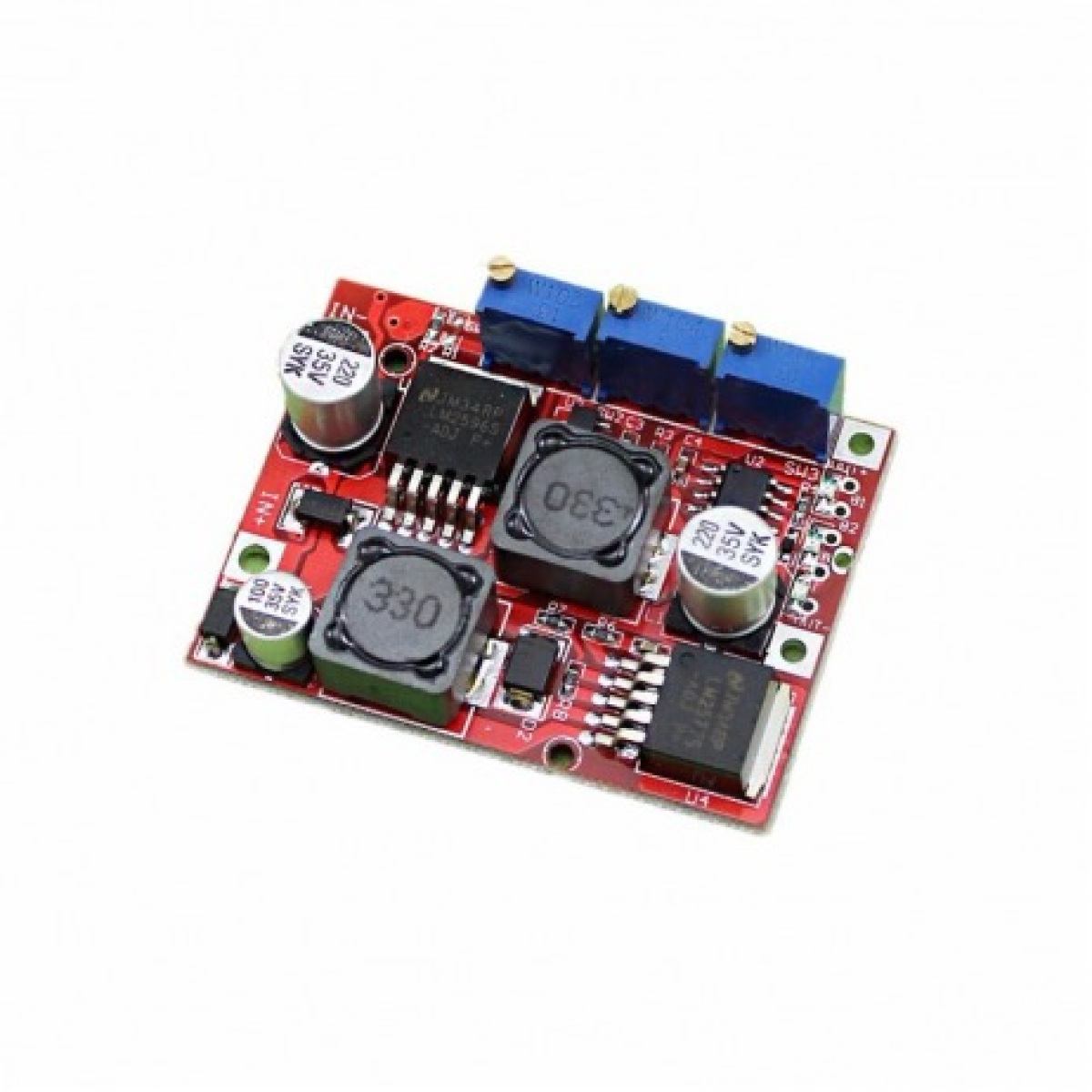

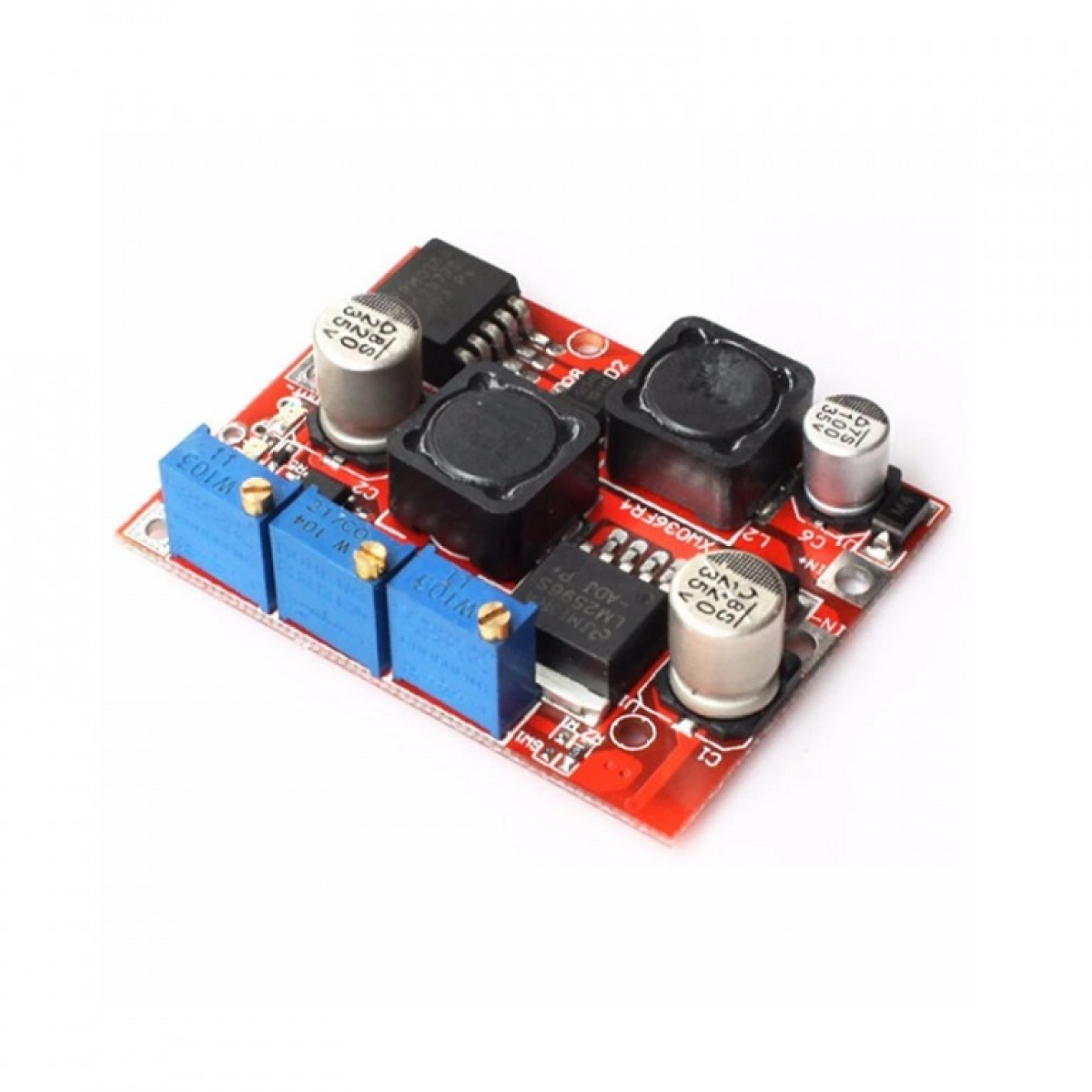

This module is based on the LM2596 chip and can convert solar or wind energy into constant current and voltage to power devices or charge batteries. It has a built-in constant current power supply and can be used as a DIY power adapter or charger.

Note:

Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)
Indicator: constant current Indicator Red, Charging indicator Red, Full charge indicator Blue.
Output short circuit protection: Yes, constant current (constant current setting values)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Connection: Welding, can be directly soldered to a PCB.

Additional information

Battery charger (including ferroelectric),	4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.
Output Current	Rate 3A, Max 4A ( If more than 15W, please install the heat sink, this item do not include heatsink)
Constant current range	0~2A (adjustable)
