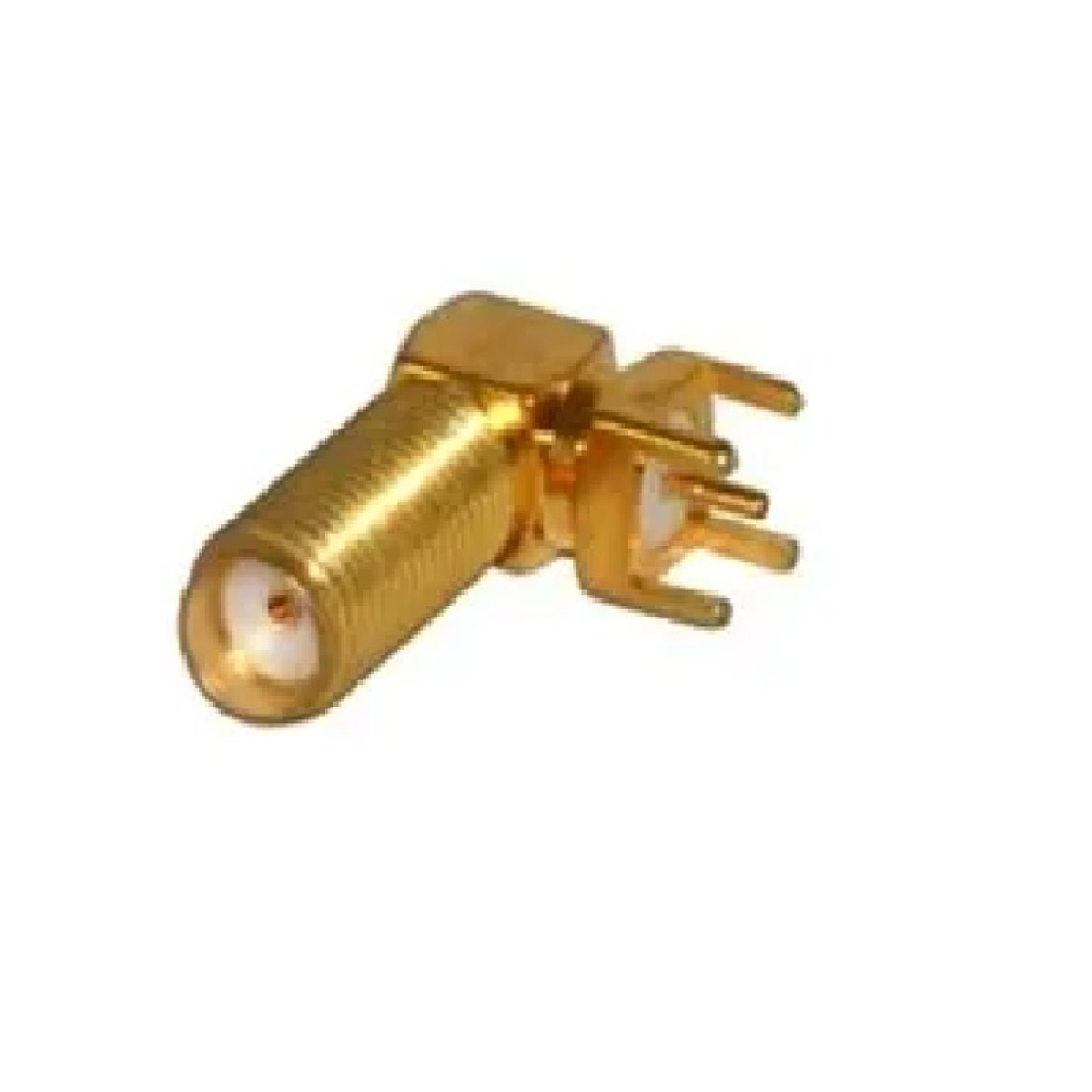

SMA CONNECTOR F VERTICAL

his is an SMA Jack Bulkhead Right Angle PCB Mount. SMA sub-miniature series are a popular general-purpose high-performance 50-ohm connector.  SMA has a screw together coupling with versions available for use up to 11 GHz and features gold plated bodies and centre contacts.

Add to wishlist
Compare
20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Impedance：50 ohm
  2. Frequency Range: 0~4 GHz
  3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  4. Working Voltage:
    335 V RMS max. for RG316, RG402
    250 V RMS max. for RG178
Additional information
Orientation

RIGHT ANGLE
Termination Style

SOLDER TYPE
Operating Temperature

-55 ~ 155°C
Impedance

50Ω
