SIM7670C 4G LM137 with Antenna(GSM 4G Foldable)- ADIY

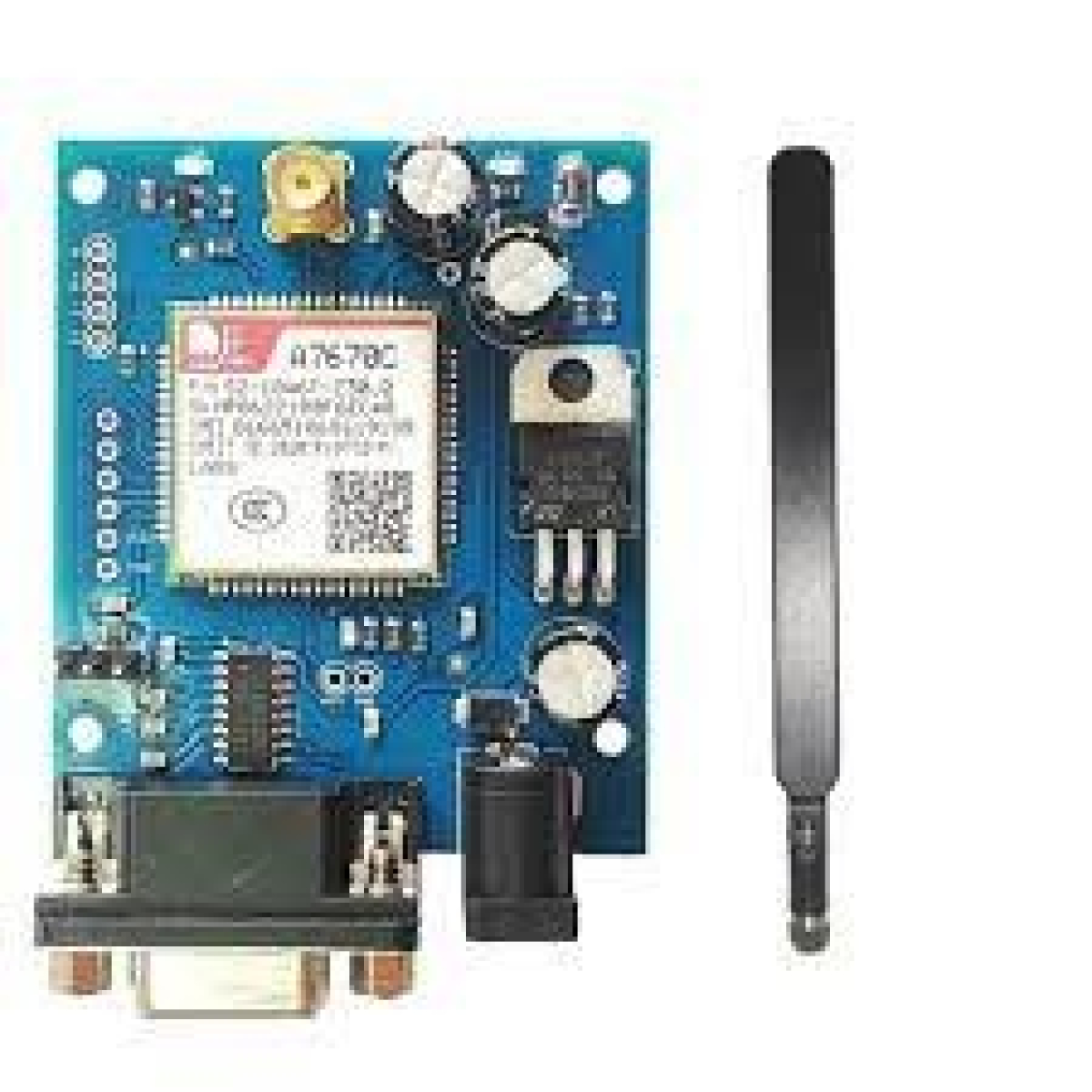

This board is centered around the SIMCOM A7670C LTE module and is furnished with an RS232 interface. The RS232 interface allows for effortless connectivity to a computer or laptop using a USB to Serial connector, or to a microcontroller using an RS232 to TTL converter. Additionally, a 3-pin header provides access to a 1.8V level UART interface, enabling direct interfacing with microcontrollers. Communication with the A7670C module is achieved through the utilization of AT commands.

Add to wishlist
Compare
18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • Serial interface
  • Based on the SIMCOM A7670C LTE modem
  • Supports LTE-FDD, LTE-TDD, and GSM frequency bands
  • Controlled via AT commands

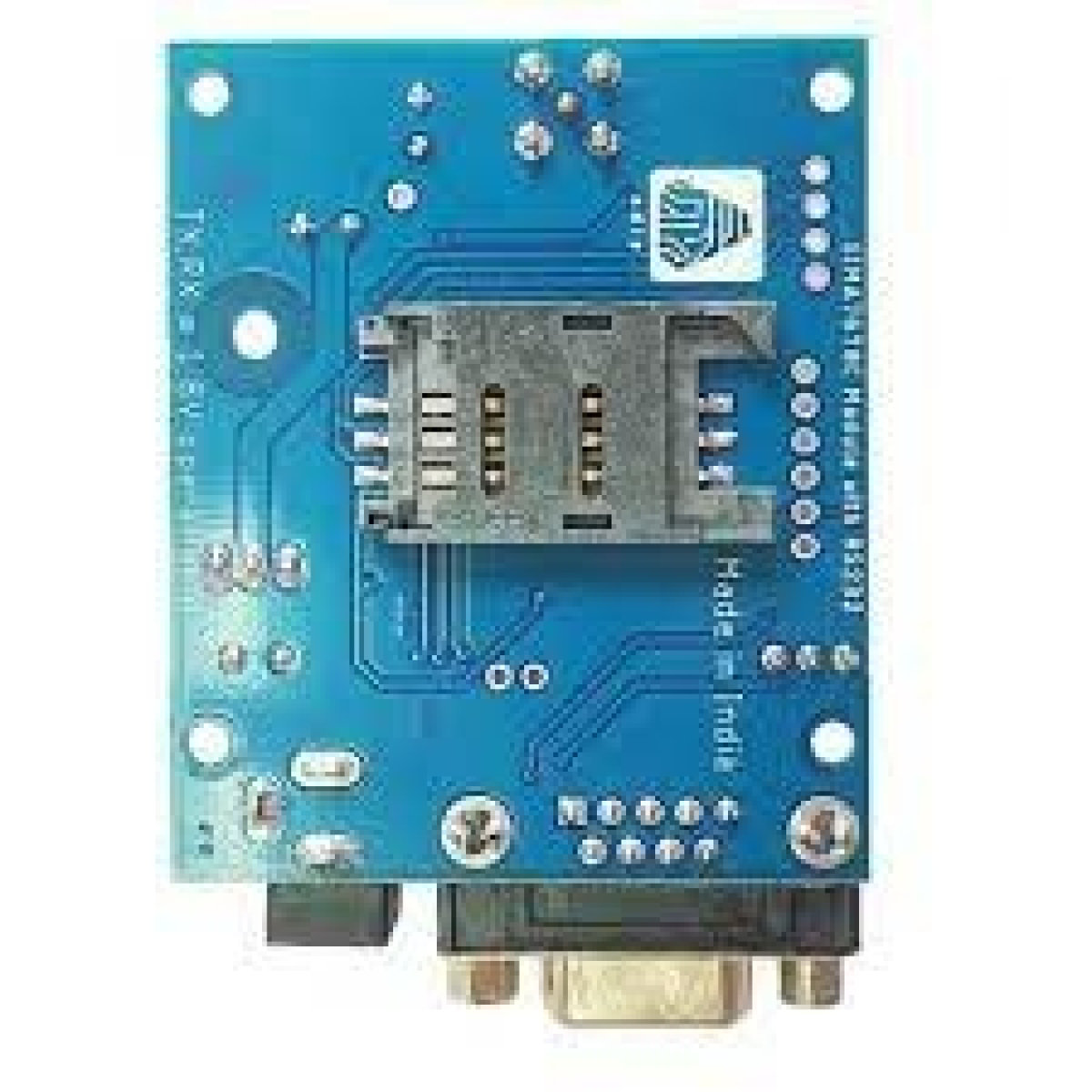

  • SIM card holder included
  • SMA antenna connector
  • DC power jack
  • RS232 interface
  • Suitable for LTE and GSM networks
  • Maximum downlink rate of 10Mbps
  • Abundant software functions such as FOTA, LBS, and SSL
  • RS232 DB9 Connector interface
  • SMA connector for external antenna
  • 1.8V UART header
Additional information
INPUIT VOLTAGE

7-12V DC
FREQUENCY BANDS

LTE-FDD : B1/B3/B5/B8

LTE-TDD : B34/B38/B39/B40/B41

GSM: 900/1800MHz
Temperature GNSS

-40°C~85°C
