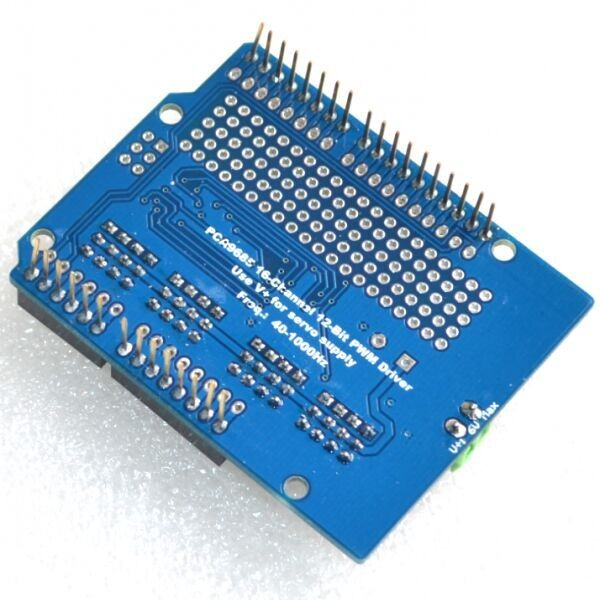

Servo Driver Module Shield 16 Channel

  1. The I2C input, PWM output control 16 roads, steering gear can 16 roads.
  2. The steering gear power independent V + input maximum 6 V.
  3. Logic signals and logical power independent output for 3V to 5 V.
  4. 40-1000 Hz frequency.
  5. You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output.

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Terminal block for power input (or you can use the 0.1″ breakouts on the side)
  2. Reverse polarity protection on the terminal block input
  3. Green power-good LED
  4. 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1″ so you can only stack 4 next to each other on 0.1″ header
  5. “Chain-able” design
  6. A spot to place a big capacitor on the V+ line (in case you need it)
  7. 330-ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
  8. Solder jumpers for the 6 address select pins
Additional information
No. of Channels

16

Resolution

12

Shipping Dimensions

8 × 6.5 × 3 cm
