RTL-SDR Blog R820T2 RTL2832U

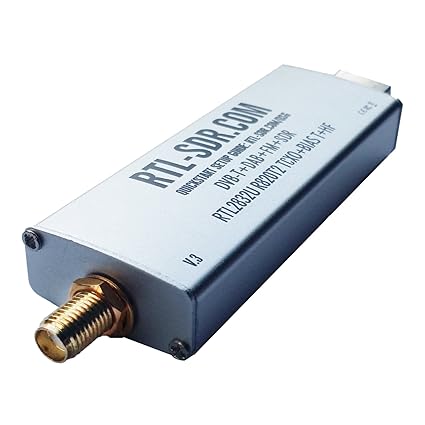

This is an RTL-SDR software defined radio receiver with RTL2832U ADC chip, R820T2 tuner, 1PPM TCXO, SMA F connector and aluminium case with passive cooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz of instantaneous bandwidth (2.4 MHz max stable, 3.2 MHz max if your application is tolerant to USB drops). (HF works in direct sampling mode – V.3 models and above only). Perfect for use as a computer based radio scanner with free software like SDR#, HDSDR, SDR-Radio, Linrad, GQRX or SDR Touch on Android. Works on Windows, MacOS, Linux, Android and even embedded Linux computers like the Raspberry Pi.

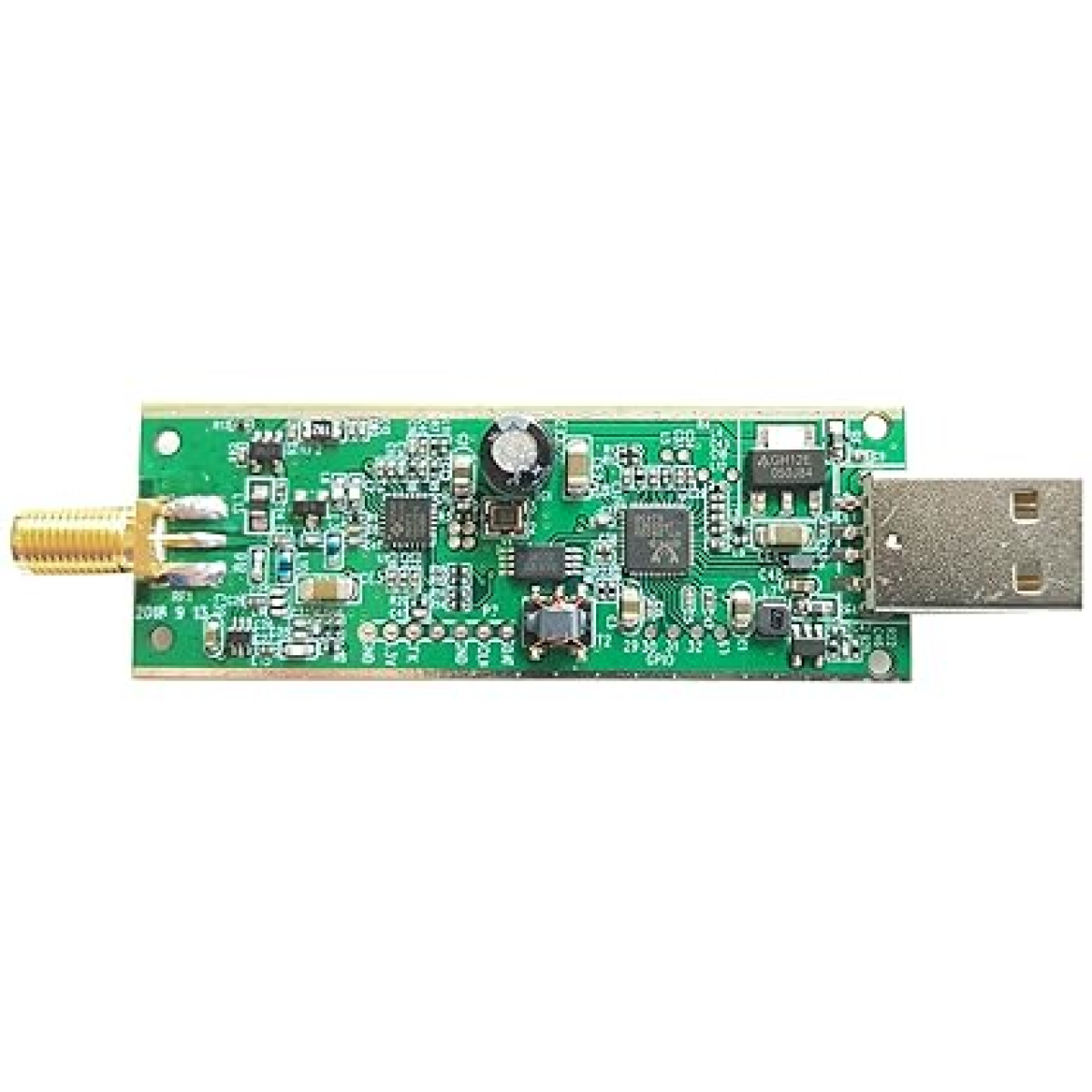

This model has several key improvements over other models. It uses the improved R820T2 tuner, has a 1PPM TCXO (2 PPM initial offset, 1 PPM temperature drift), has improved component tolerances and an SMA F connector. It also comes with a software activatable bias-tee circuit for powering external devices such as LNA’s and active antennas. It also has HF reception capabilities. Most standard RTL-SDR dongles can tune down to 24 MHz at the lowest. This model has hardware that unlocks the “direct sampling mode”, and allows for tuning down to 500 kHz. There is a built in 25 MHz low pass filter for optimizing this mode.
