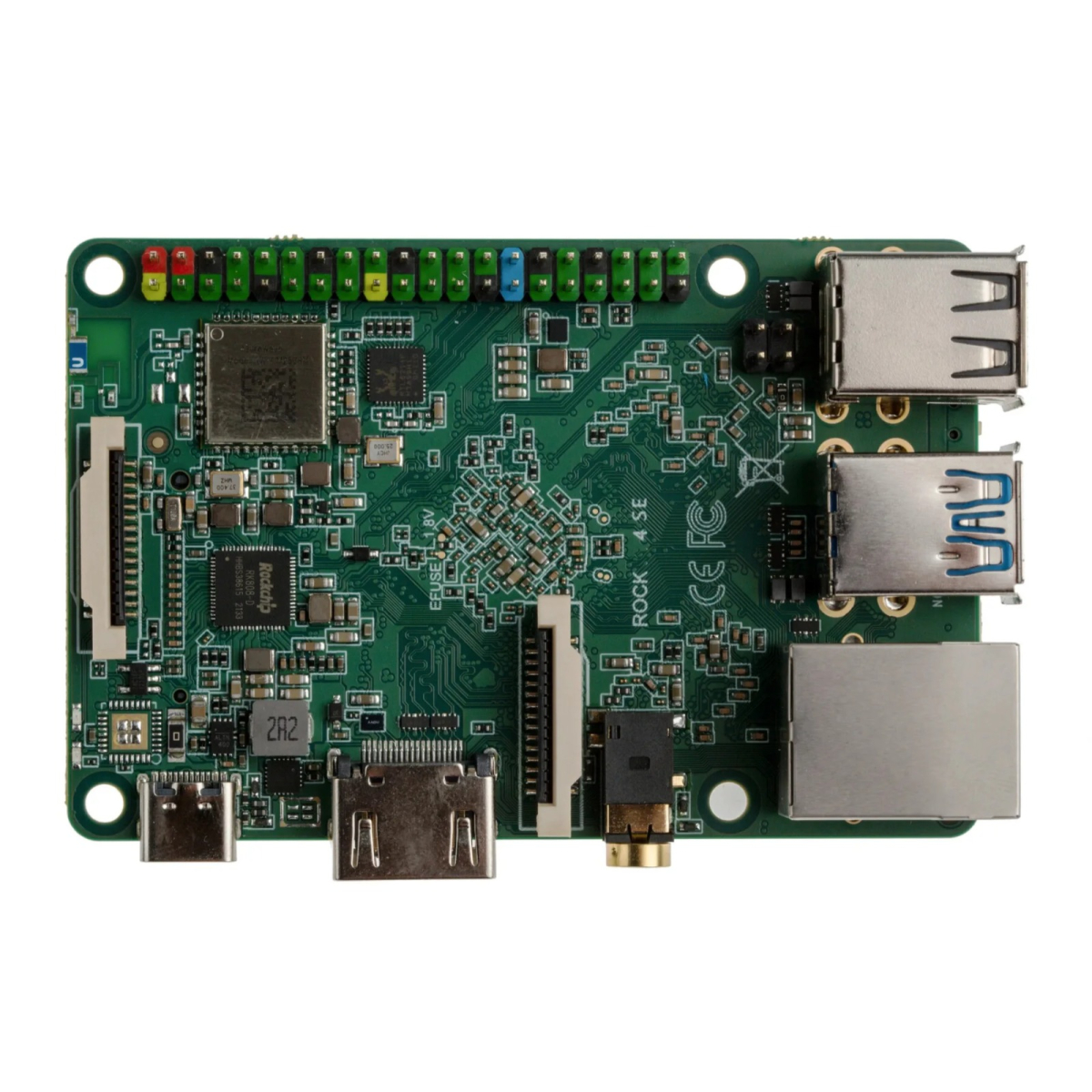

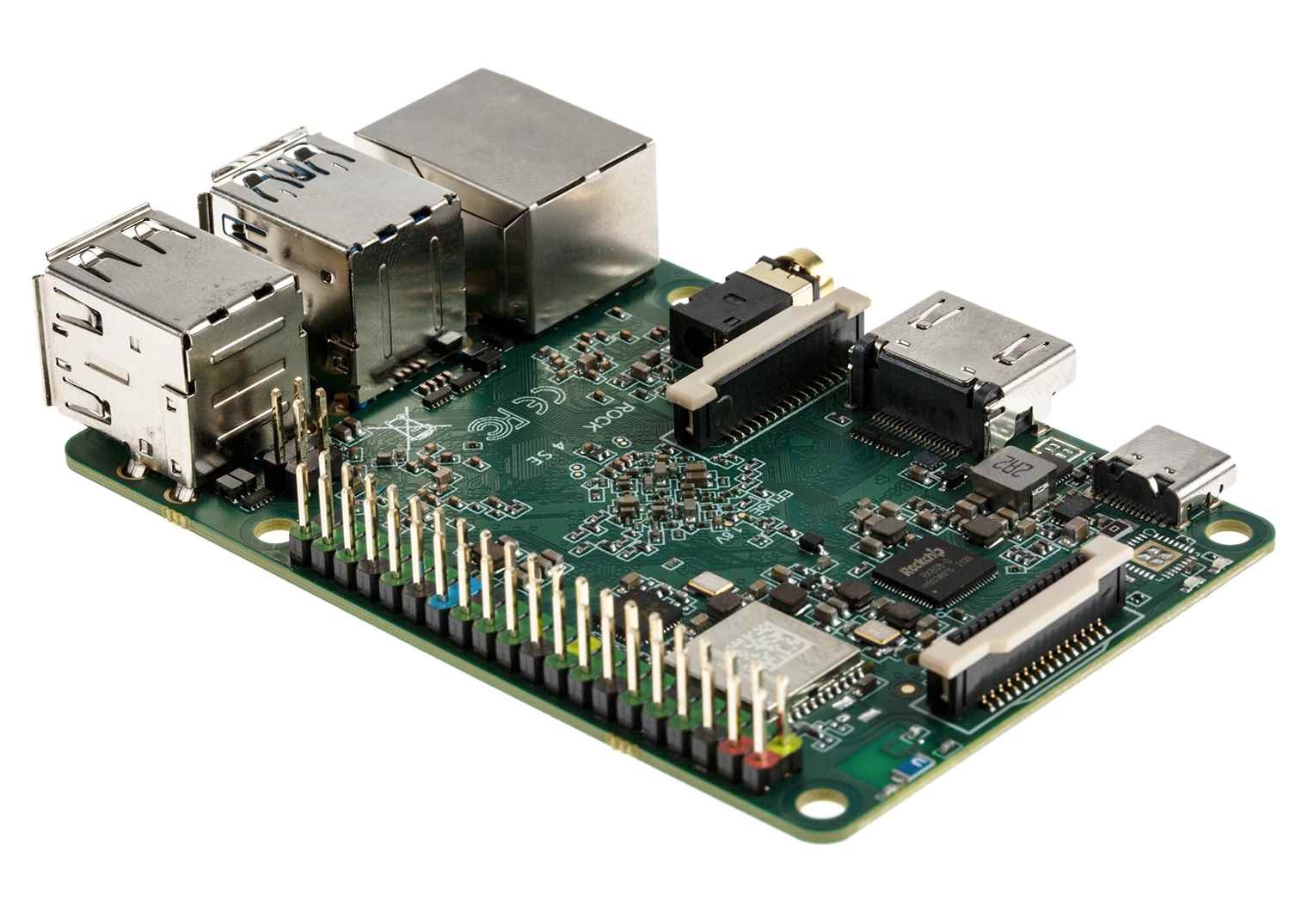

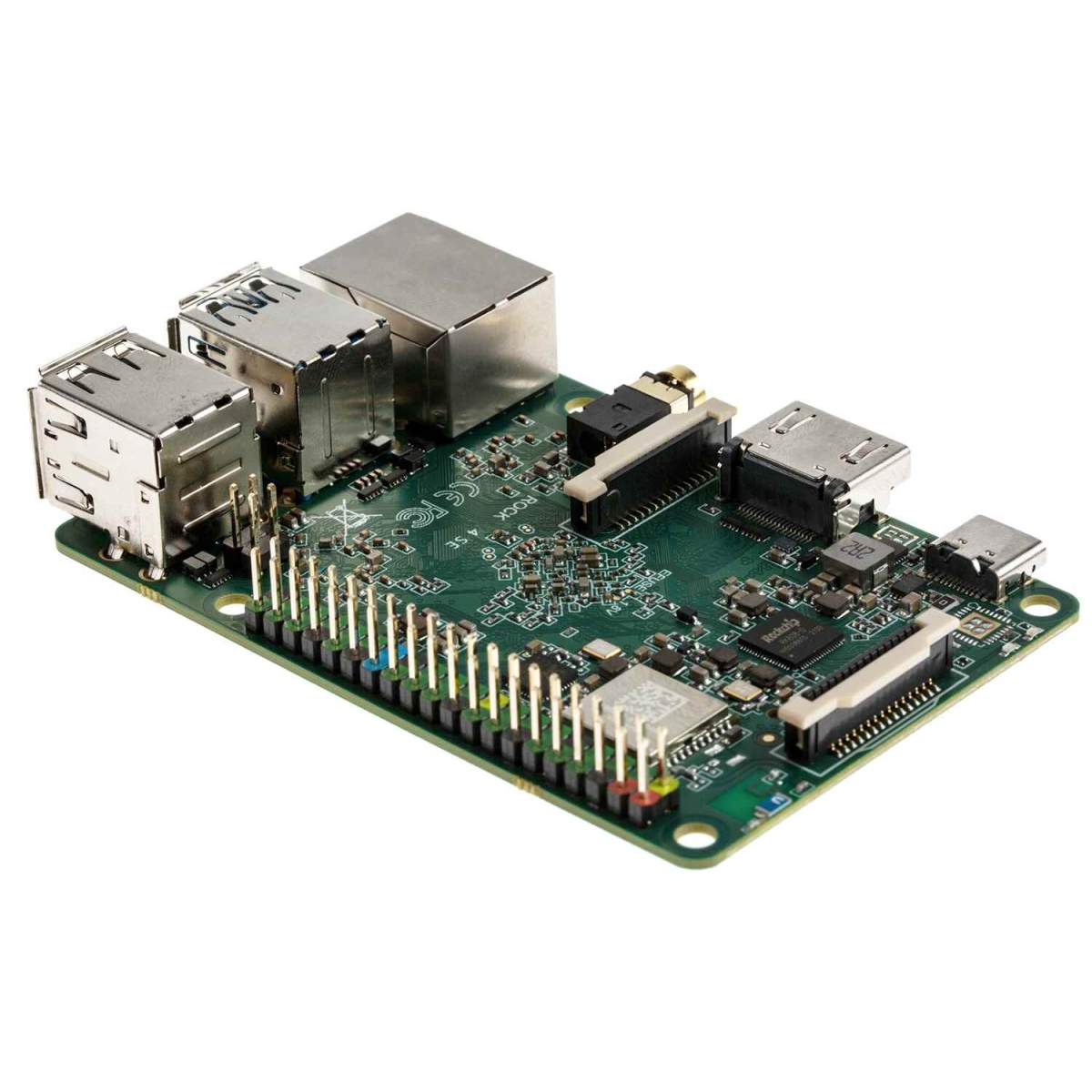

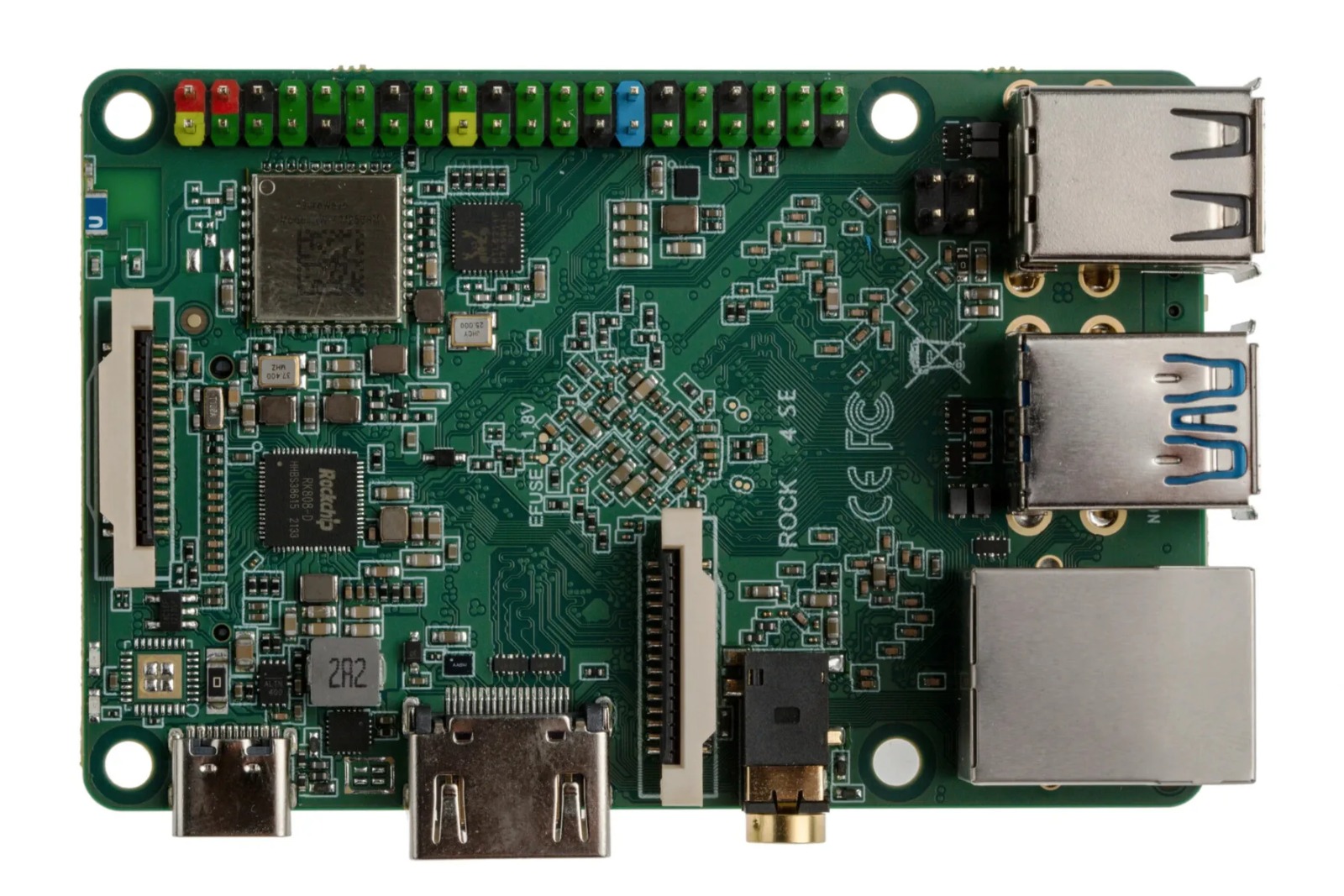

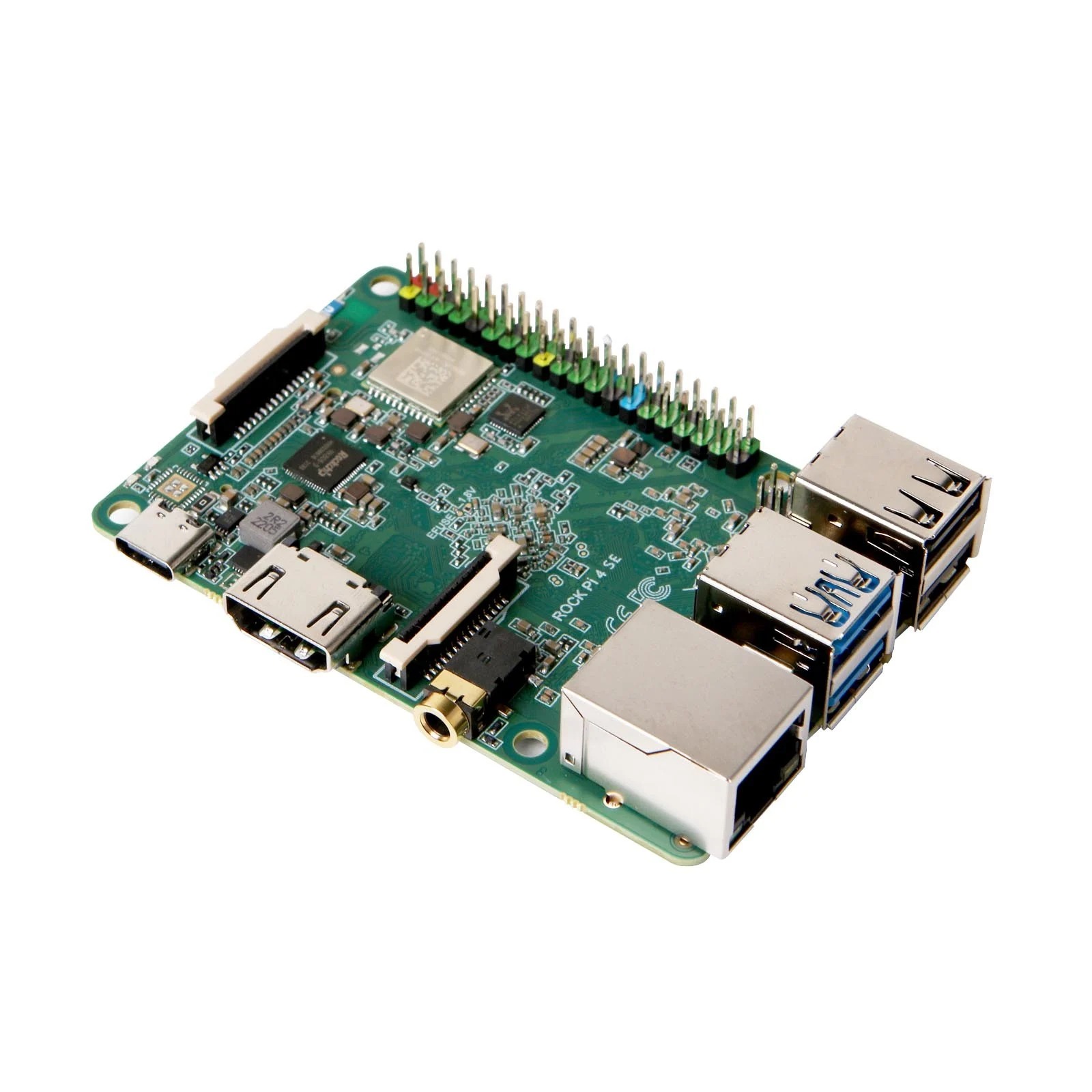

ROCK 4 SE SINGLE BOARD COMPUTER 4GB LPDDR4 RAM

ROCK 4 SE is powered by RK3399-T with a dual core Cortex-A72@1.5GHz + quad core Cortex-A53@1Ghz ARM processor, 64bit LPDDR4, up to 4K@60 HDMI, MIPI DSI, MIPI CSI, 3.5mm jack with mic, USB Port, GbE LAN, 40-pin color expansion header, RTC. ROCK 4 SE is introduced in 2022.

Add to wishlist
Compare
19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Experience the ultimate in single-board computing with the Rock Pi 4 SE, your alternative to the Raspberry Pi 4 Model B! Boasting 4GB of RAM, this compact yet powerful Rock Pi 4 SE outperforms even the Raspberry Pi 4GB model.

In the world of single-board computers, the Rock Pi 4 SE stands tall as a versatile and high-performance solution. Whether you’re a Raspberry Pi enthusiast exploring new possibilities or a tech-savvy creator seeking innovation, the Rock Pi 4 SE deserves your attention.

With a feature-rich design, the Rock Pi 4 SE is on par with the top Raspberry Pi models. Experience seamless computing, incredible connectivity, and superb graphics performance. This single-board computer, in the family of Rock Pi boards, redefines what’s possible.

Don’t limit your projects – elevate them with the Rock Pi 4 SE. Say goodbye to boundaries and embrace the next level of computing. Choose Rock Pi 4 SE and unlock a world of possibilities for your innovative endeavors!”

Additional information
PROCESSOR

64bits hexa core processor

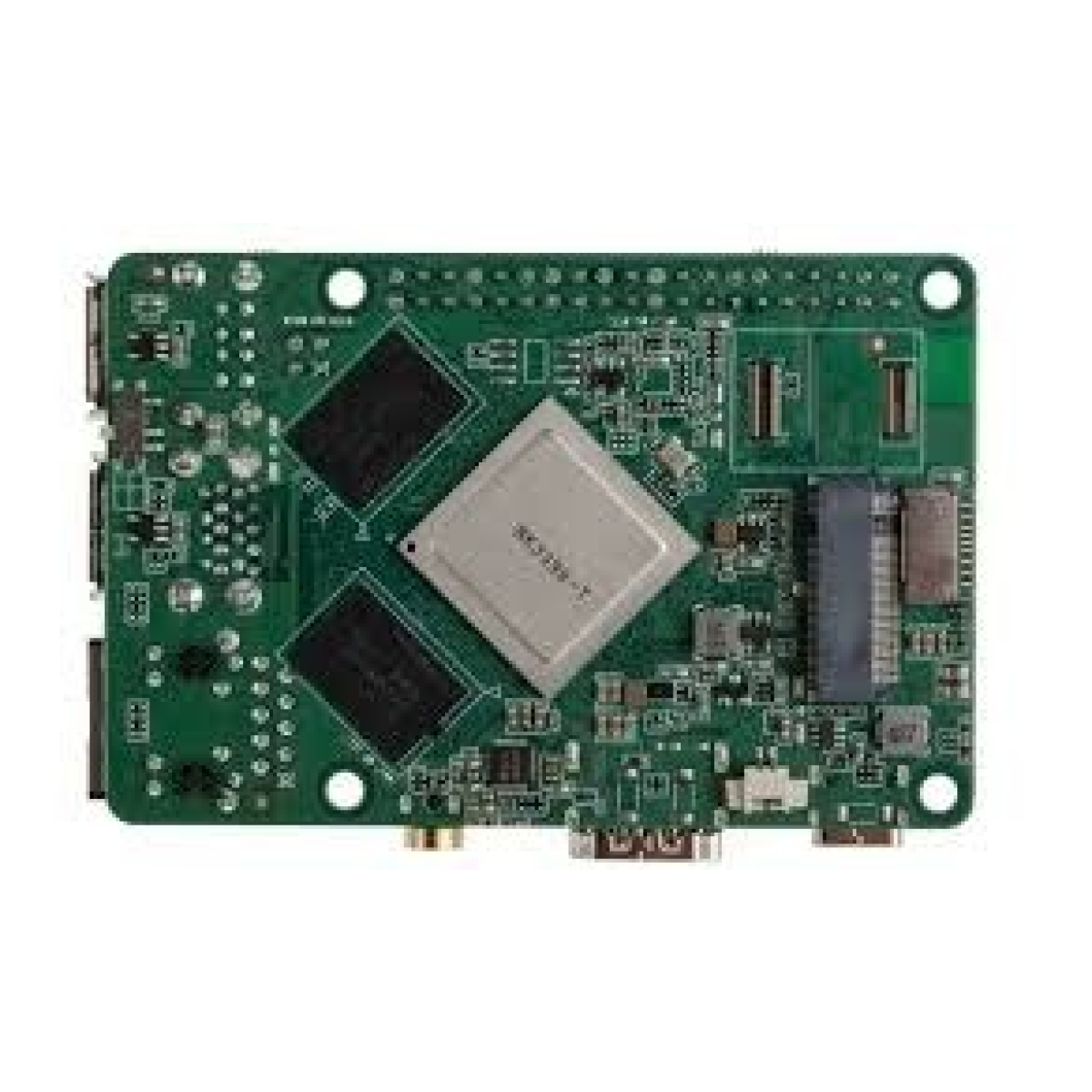

Rockchip RK3399-T
Dual Cortex-72, frequency 1.5GHz with qual Cortex-A53, frequency 1.0GHz
Mali T860MP4 gpu, support OpenGL ES 1.1/2.0/3.0/3.1/3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11.
MEMORY

LPDDR4
64bit dual channel LPDDR4@3200Mb/s, 1GB/2GB/4GB optioal
STORAGE

eMMC connector
μSD card (μSD slot supports up to 256 GB μSD card)
M.2 SSD (M.2 connector supports up to 2T M2 NVME SSD)
DISPLAY

Standard HDMI 2.0 up to 4k@60
MIPI DSI 2 lanes via FPC connector
HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.
AUDIO

3.5mm jack with mic
HD codec that supports up to 24-bit/96KHz audio.
CAMERA

MIPI CSI 2 lanes via FPC connector, support up to 800 MP camera(1mm pitch connector).
WIRELESS

802.11 ac wifi
BT 5.0
with on board or external antenna
USB

USB 3.0 OTG X1, hardware switch for host/device switch, upper one
USB 3.0 HOST X1, dedicated USB 3.0 channel, lower one
USB 2.0 HOST X2
IO

40-pin expansion header
2 x UART
2 x SPI bus
3 x I2C bus
1 x PCM/I2S
1 x SPDIF
2 x PWM
1 x ADC
6 x GPIO
2 x 5V DC power in
2 x 3.3V DC power in
POWER

USB PD, support USB Type C PD 2.0, 9V/2A, 12V/2A.
Qualcomm® Quick ChargeTM: Supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A
