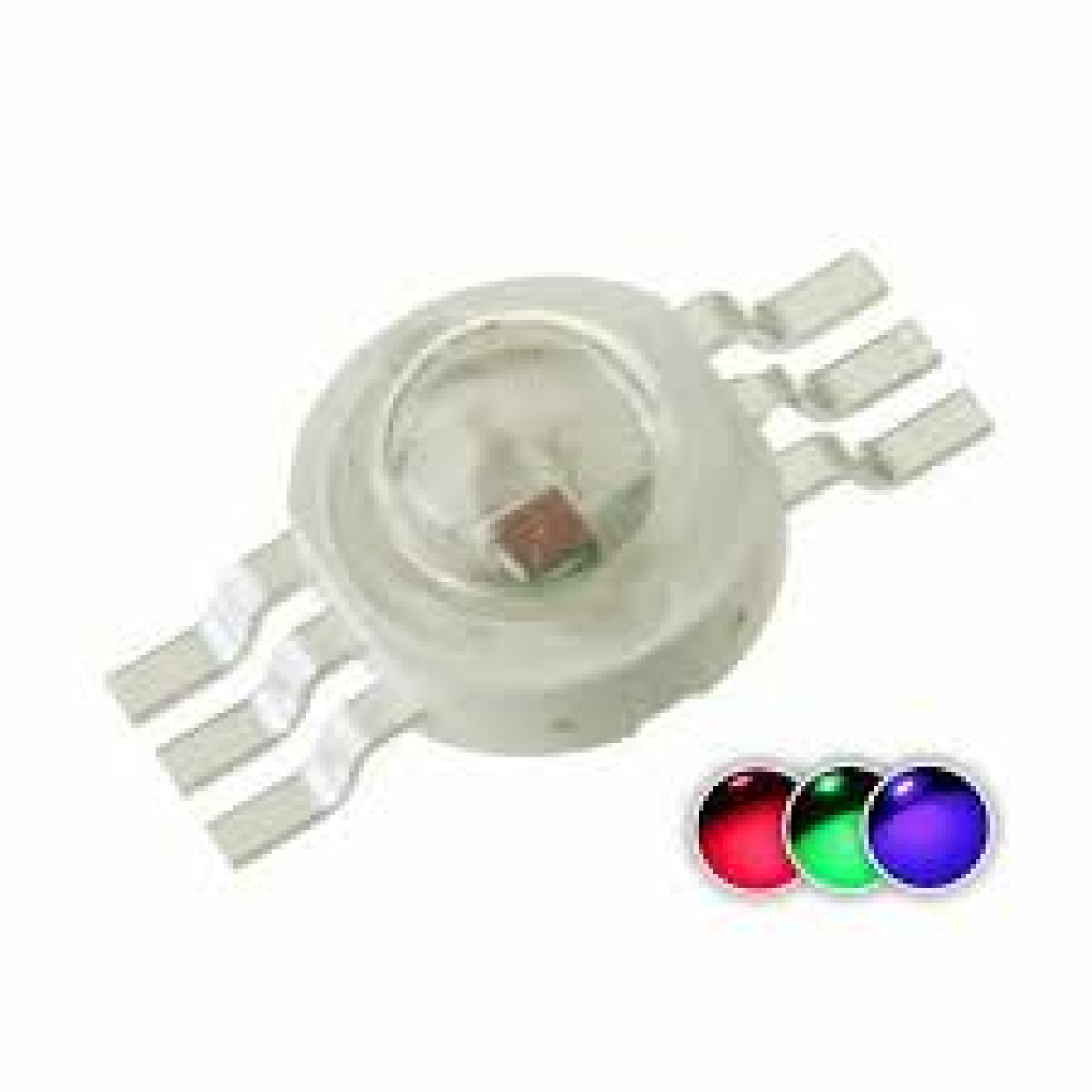

RGB LED 3W

They are extremely bright, many times more than a 5mm LED, and generally produce a wide angle of light disbursement which can be narrowed through the use of an external lense.

Pin Configuration

Pin Name Description
Three Anodes Positive terminals
Three Cathodes Negative terminals

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

This is a high-quality  9Watt Red+Green+Blue SMD LED which means each Colour is of 3Watts. It has a total of six pins, two pins for each colour LED. These LED’s consume low power and emits much intense bright light. There is a built-in heat sink at the bottom. This Led is suitable for PWM and it is fully dimmable.
The LED Bead is the fundamental element of a high-power LED module. The Bead is designed to be mounted to a heat-conducting surface to draw away excess heat from the LED. See our complete assortment of LED Bead aluminium base plates, heat sink, and accessories.

Additional information
Power

3x3W= 9W

Max Rated Current

600-700mA

Brightness

80-100(Red), 110-140(Green), 30-50(Blue)

Operating Voltage

2-2.6VDC(Red), 3-3.6VDC(Green), 3-3.6VDC(Blue)
