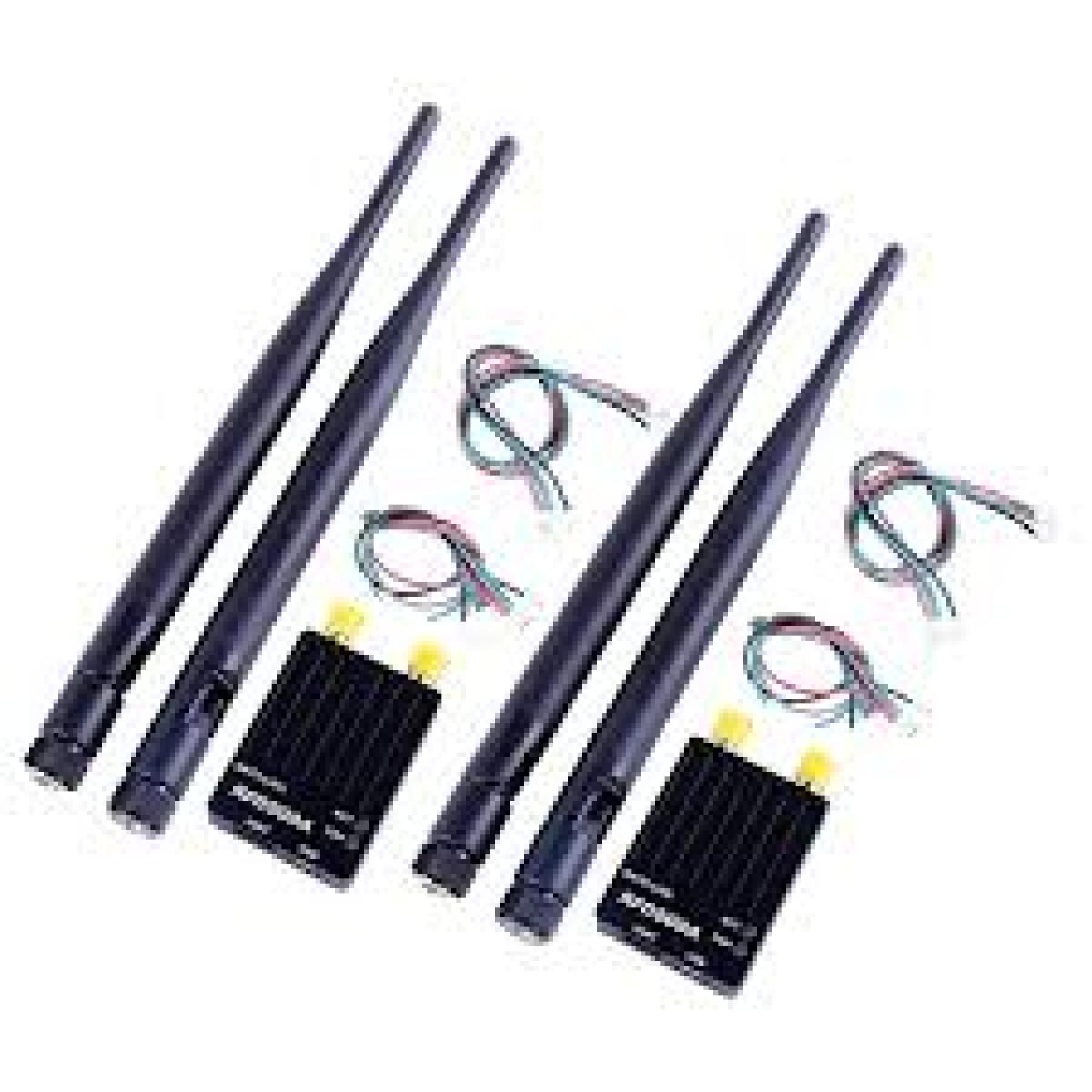

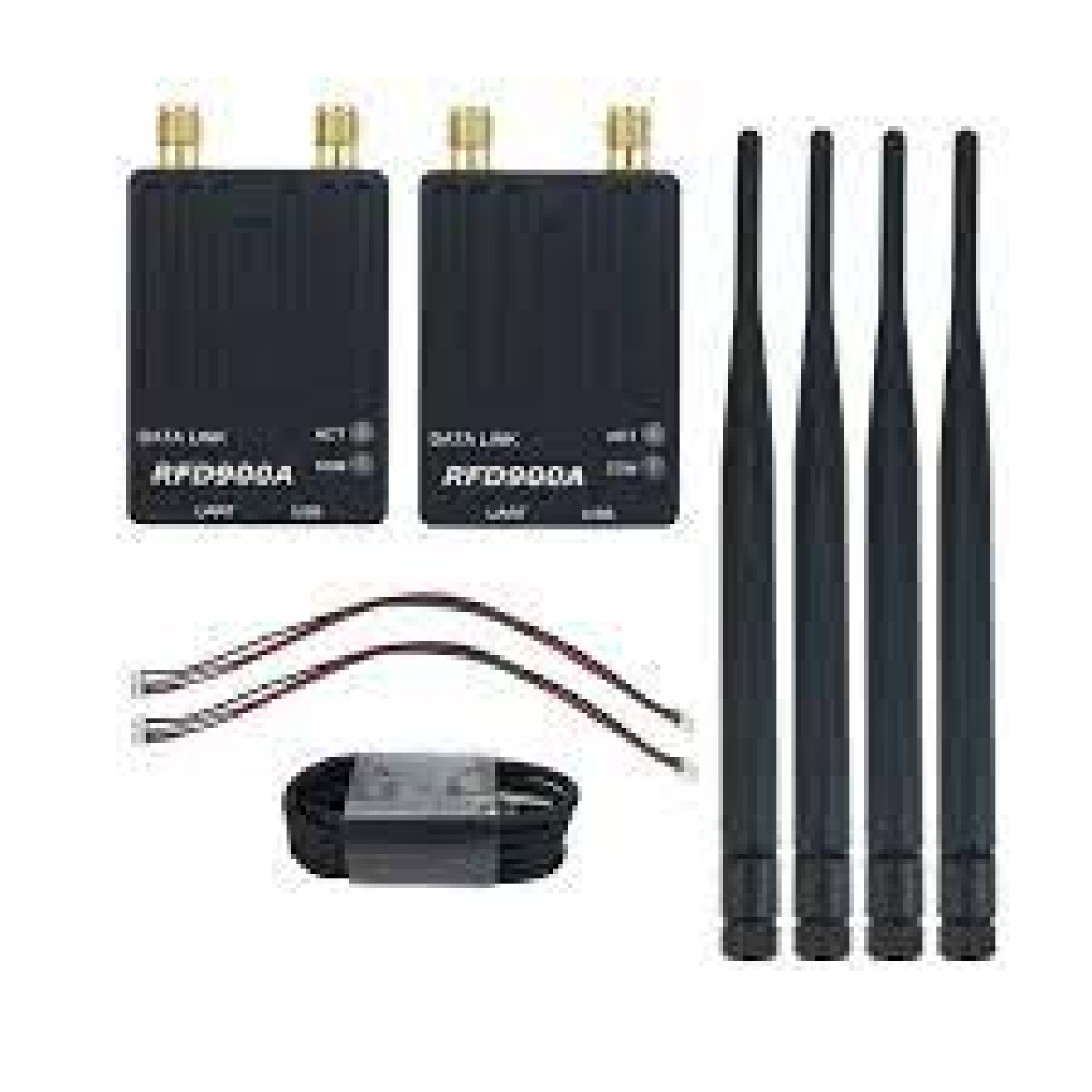

RFD900A MODULE 915MHZ 40KM ULTRA LONG RANGE

The RFD900A telemetry radio set offers high data rates, allowing for the transmission of various telemetry information such as altitude, GPS coordinates, battery voltage, and sensor data. which provides excellent range capabilities and penetration through obstacles. It is known for its robust performance and stability, making it ideal for long-range drone operations and applications where reliable data transmission is crucial.

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • RFD900A is a 32-bit processor that supports higher baud rates and airspeeds
  • Wireless data transmission module with small size and excellent performance
  • No distinction is made between transmitter and receiver modules. Each module integrates a USB serial port chip, the USB and UART interfaces are automatically switched, and the USB is preferred
  • Operating frequency range 902-928MHz, ISM band
  • The transmitting circuit adopts a low-noise amplifier greater than 20DB, and a low-pass filtering unit
  • The transmit power is adjustable and the maximum transmit power is 1W
  • High-sensitivity LNA and SAW circuit in front of the receiving circuit
  • The outdoor communication distance can be up to 40km or more in a straight line (depending on the antenna performance and communication speed requirements)
  • Over-the-air data rates up to 250Kbps
  • Dual antenna interface, support antenna diversity, differentiated antenna configuration
  • Support AT command configuration of local radio, RT command configuration of remote radio
  • With module temperature monitoring function, automatic duty cycle adjustment according to temperature to avoid module over-temperature
Additional information
Working temperature

-40℃ to +85℃

Dimensions

33 x 53 x 9.5mm/1.3 x 2.1 x 0.4"

Weight

23G/0.05LB
