Raspberry Pi Pico H

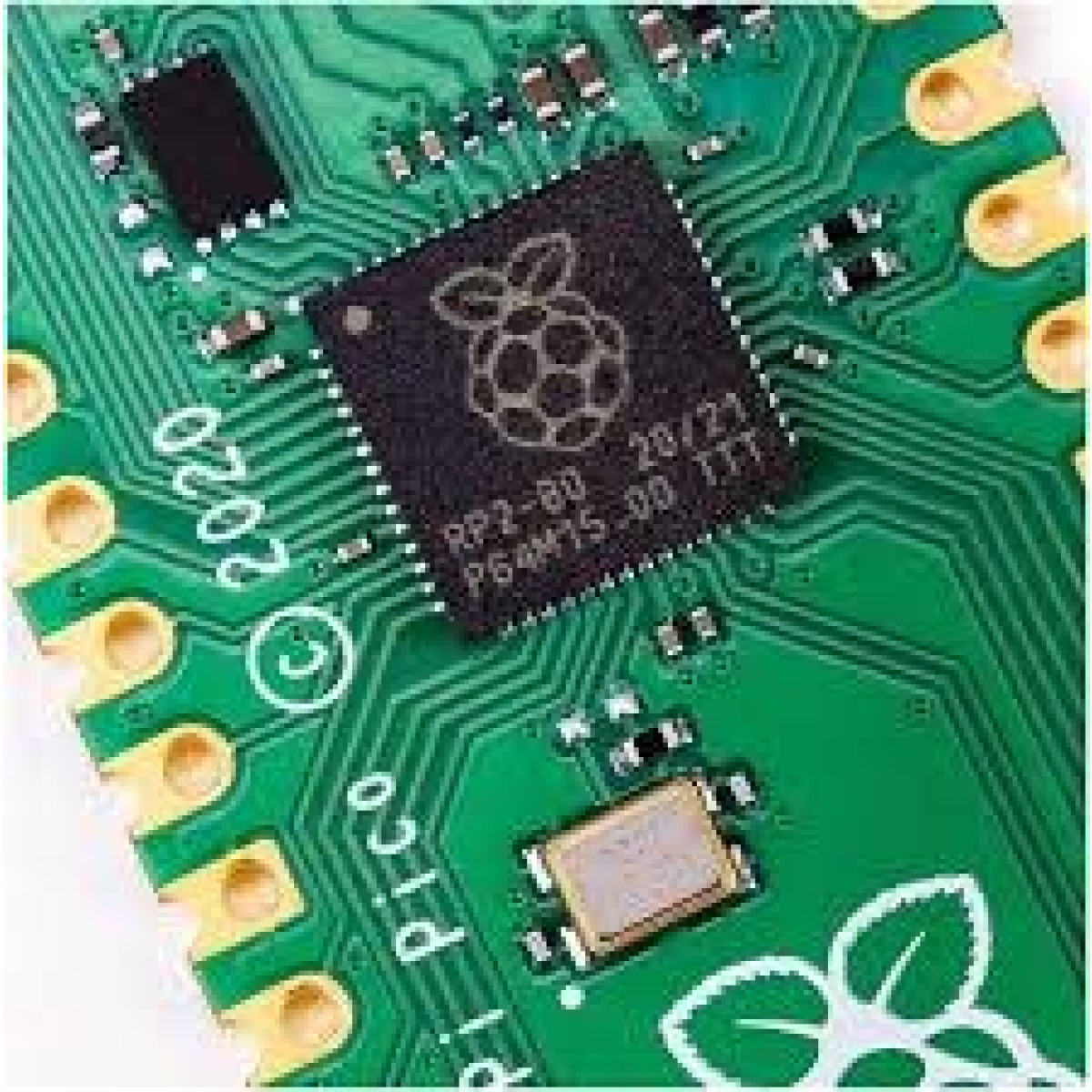

  1. RP2040 microcontroller chip designed by Raspberry Pi
  2. Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
  3. 264KB of SRAM, and 2MB of onboard Flash memory
  4. The castellated module allows soldering directly to carrier boards
  5. USB 1.1 with device and host support
  6. Low-power sleep and dormant modes
  7. Drag-and-drop programming using mass storage over USB
  8. 26 multi-function GPIO pins
  9. 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels
  10. Accurate clock and timer on-chip
  11. Onboard temperature sensor
  12. Accelerated floating-point libraries on-chip
  13. 8 Programmable I/O (PIO) state machines for custom peripheral support

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

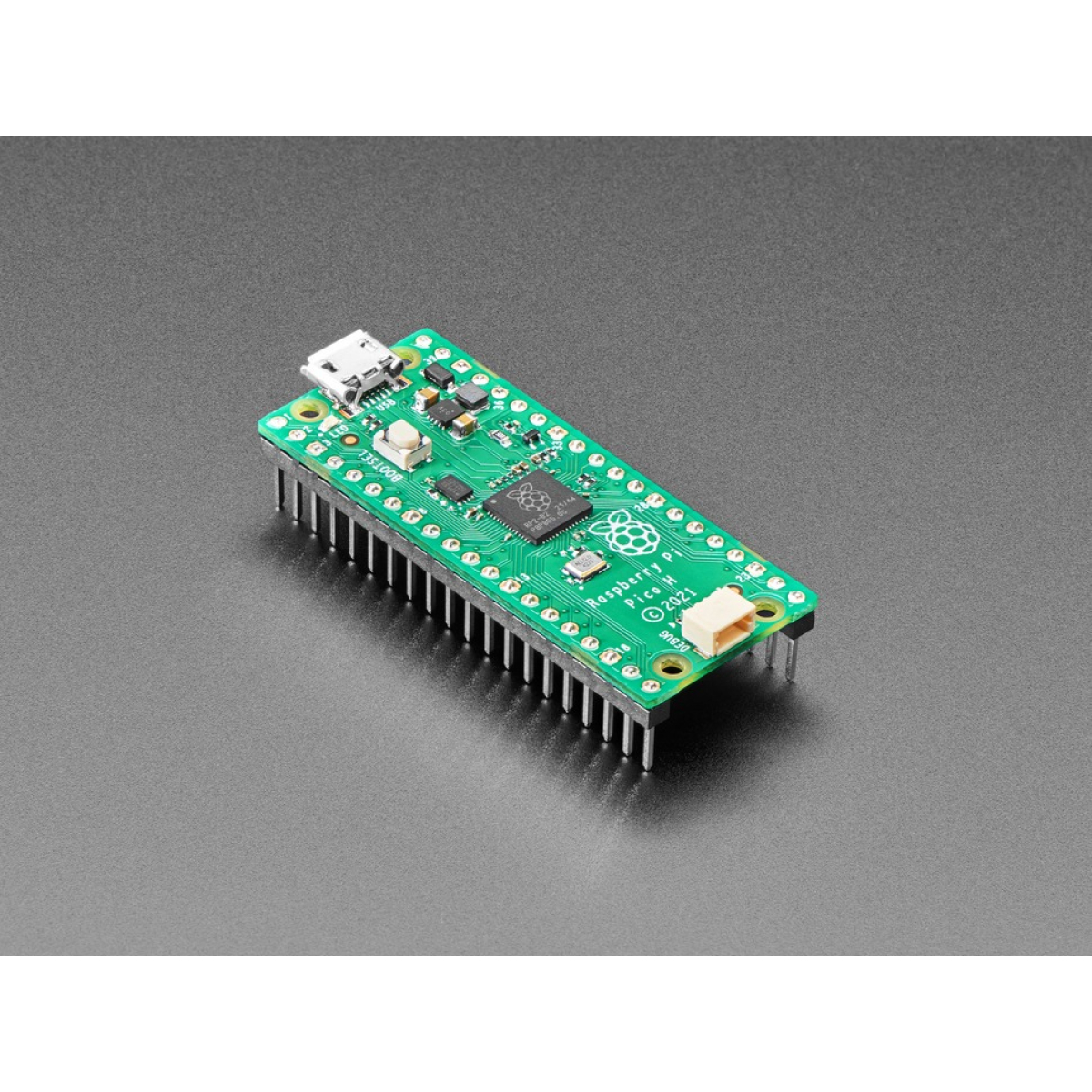

Raspberry Pi Pico H with Soldered Headers is a low-cost microcontroller board features their powerful new chip, the RP2040 , and all the fixin’s to get started with IoT embedded electronics projects at a stress-free price.

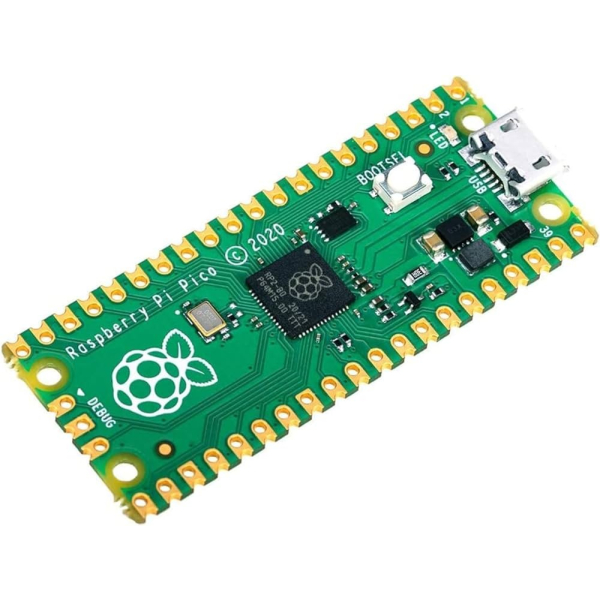

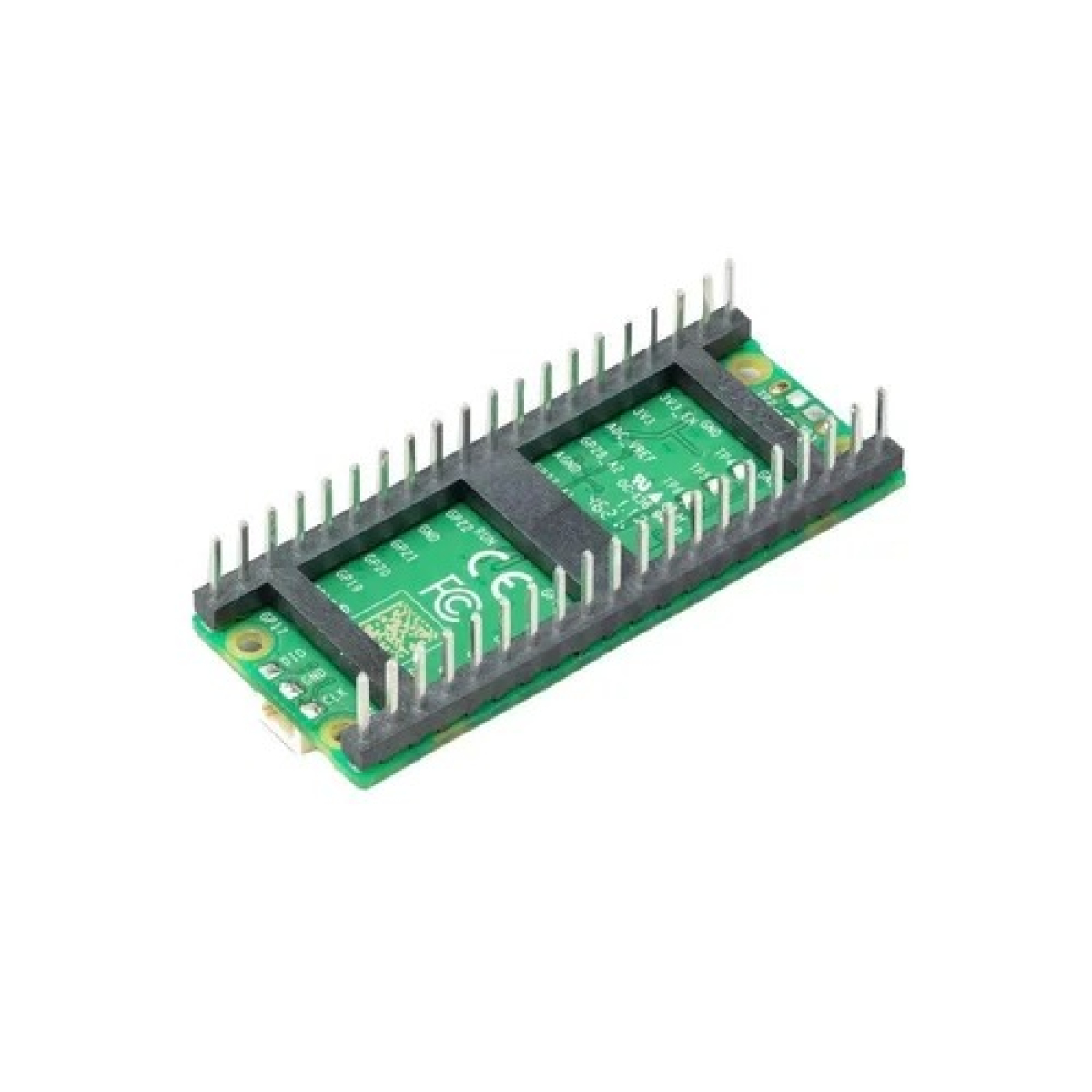

Raspberry Pi Pico H is Similar to the classic Raspberry Pi Pico  but adds pre-soldered headers and a new 3-pin debug connector.

There’s 20 pads on each side, with groups of general purpose input-and-output (GPIO) pins interleaved with plenty of ground pins. All of the GPIO pins are 3.3V logic, and are not 5V-safe so stick to 3V! You get a total of 25 GPIO pins, 3 of those can be analog inputs (the chip has 4 ADC but one is not broken out). There are no true analog output (DAC) pins.

On the slim green board is minimal circuitry to get you going: A 5V to 3.3V power supply converter, single green LED on GP25, boot select button, RP2040 chip with dual-core Cortex M0, Wireless chipset with antenna, 2 MegaBytes of QSPI flash storage, and crystal.

Additional information
Operating Voltage (VDC)

1.8 ~ 5.5

Processor

RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi

Gpio

26 Pins

Operating Temperature (°C)

-20 to 85
