| Operating Voltage (VDC) |
1.8 ~ 5.5 |
|---|---|
| Processor |
RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi |
| Interface |
2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels |
| Operating Temperature (°C) |
-20 to 85 |

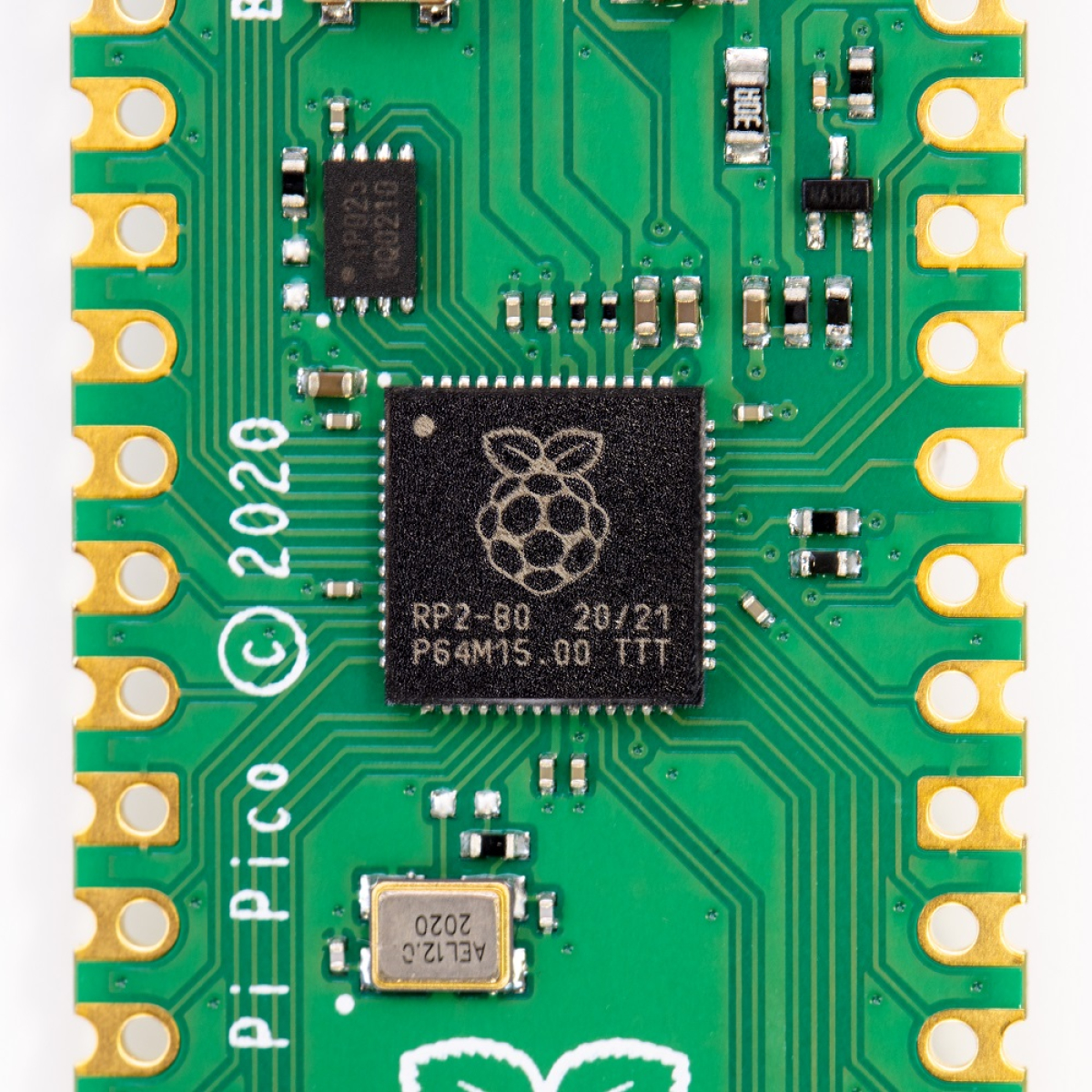

- RP2040 microcontroller chip designed by Raspberry Pi
- Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- The castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Onboard temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
