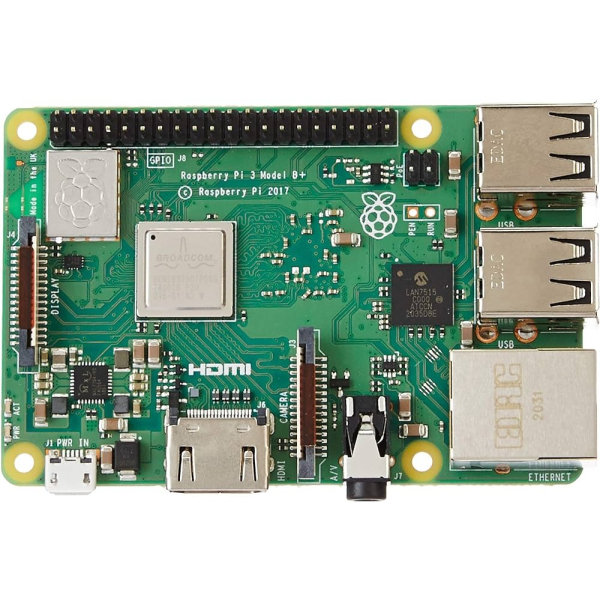

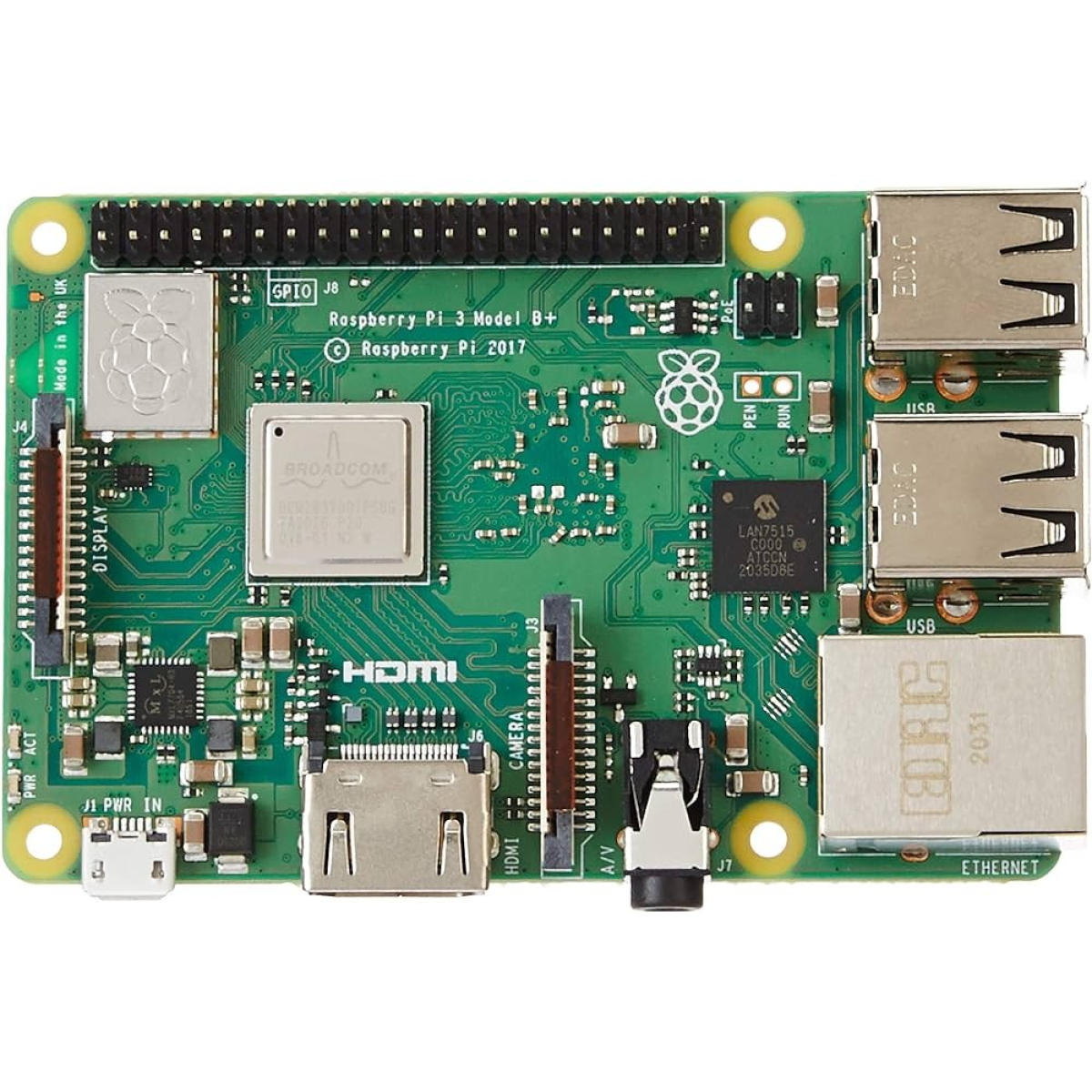

Raspberry Pi 3 B+

Features:

  1. 1GB LPDDR2 SDRAM
  2. 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
  3. Gigabit Ethernet over USB 2.0 (maximum throughput of 300 Mbps)
  4. Extended 40-pin GPIO header
  5. Full-size HDMI
  6. 4 USB 2.0 ports
  7. CSI camera port for connecting a Raspberry Pi camera
  8. DSI display port for connecting a Raspberry Pi touchscreen display
  9. 4-pole stereo output and composite video port
  10. Micro SD port for loading your operating system and storing data
  11. 5V/2.5A DC power input
  12. Power-over-Ethernet (PoE) support (requires separate PoE HAT)

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

After Huge Success of Raspberry Pi 3 Model B, Raspberry Pi Foundation has launched a new upgraded version of this model i.e Raspberry Pi 3 Model B Plus(+). It has an updated 64-bit quad core processor running at 1.4GHz with built-in metal heatsink, dual-band 2.4GHz and 5GHz wireless LAN, faster (300 mbps) Ethernet, and PoE capability via a separate PoE HAT.

It has 1GB of RAM, faster dual-band 802.11 b/g/n/ac wireless LAN, Bluetooth 4.2, and significantly faster 300Mbit/s ethernet. The Pi 3 B+ is to provide with the same Pi as before, but now with Gigabit and PoE capable Ethernet, as well as better overheating protection for the 64-bit processor.

Additional information
Processor

Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz

Ram

1GB LPDDR2

Connectivity

Gigabit Ethernet over USB 2.0

Operating Power

5V/2.5A DC

Gpio

Standard 40-pin GPIO Header

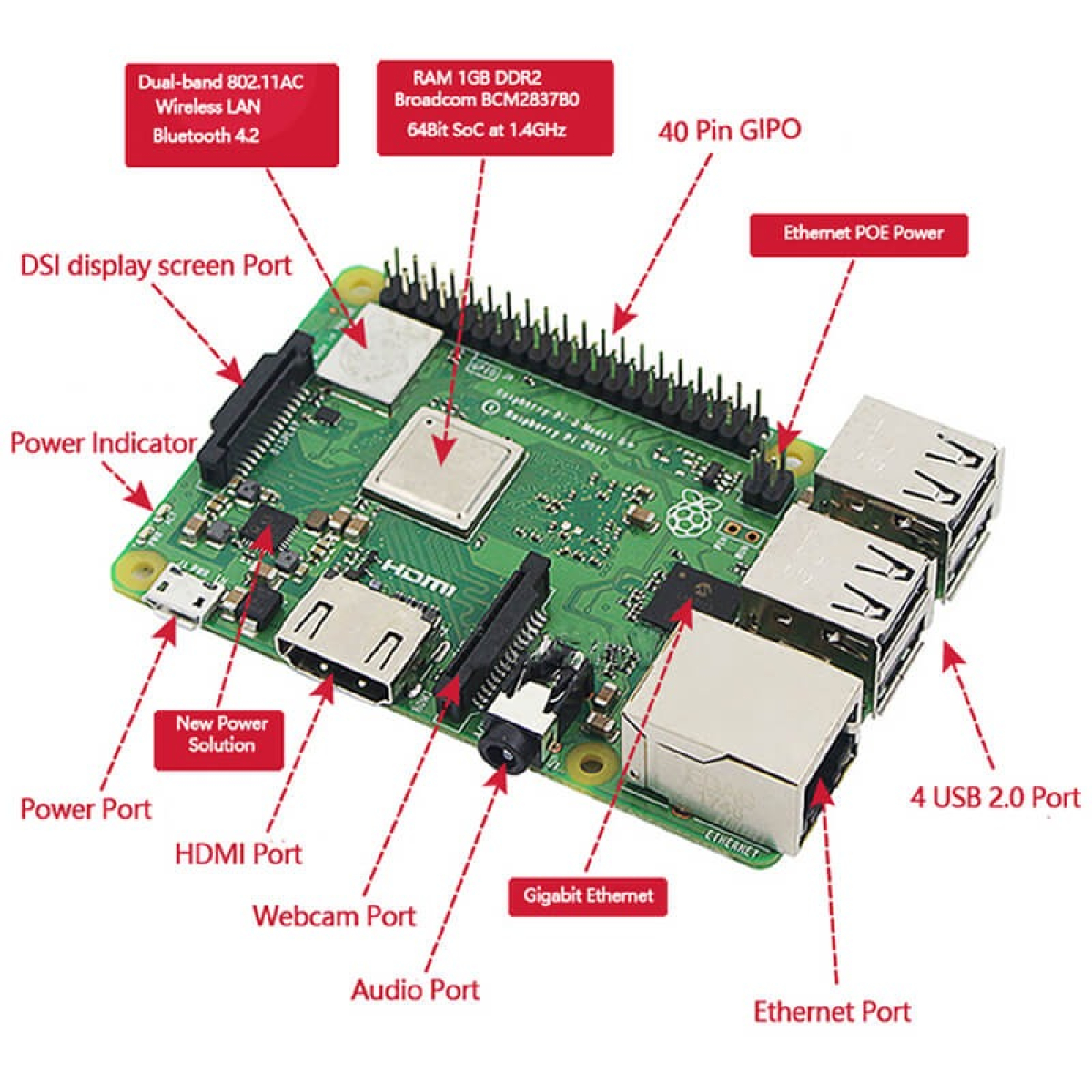

On board ports

15-pin MIPI Camera Serial Interface (CSI-2), 4 x USB 2.0 Connector, 4-pole stereo output and composite video port, 40-pin 2.54 mm (2×20 strip) GPIO, Full-size HDMI Output Port

Micro-sd card slot

Yes (FAT32 format), support maximum 32G Micro SD Card
