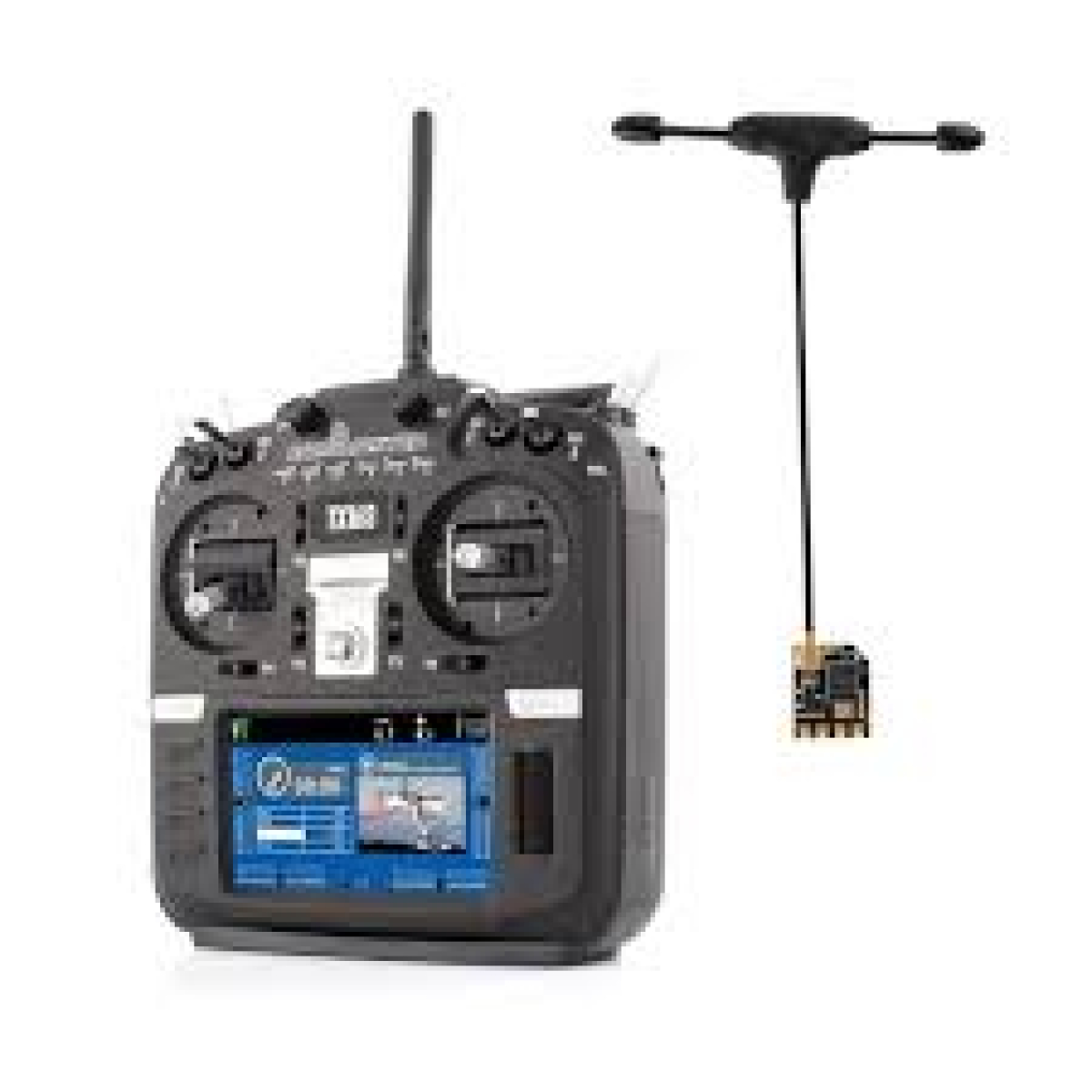

RADIO MASTER TX16S MKII WITH ELRS NANO RECEIVER

SKU: D3116

Features:

  1. Improved internal circuitry and optimized power supply.
  2. New charge circuitry with integrated reverse-polarity protection.
  3. Optimized charge IC now allows up to 2.2A internal USB-C charge current.
  4. Rear-mounted audio jack provided headphone output.
  5. V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
  6. Optional high/low rear grips are included for improved ergonomics.
  7. Improved S1/S2 knobs with clear center detents.
  8. Improved LS/RS Sliders with a smoother feel and better center detents.
  9. Redesigned battery cover for improved battery access.
  10. Retooled body shell with improved fit and finish.
  11. Trainer socket changed to standard TRS 3.5mm socket.
  12. Rear DIY Socket added for personalized mods.
  13. Improved internal plastics for better longevity.

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The Radiomaster TX16S MKII HALL V4.0 is a popular radio transmitter designed for radio-controlled models, and it’s often used in the RC hobby community. ExpressLRS is an open-source, low-latency, long-range RC link firmware, and RP1 is one of the ExpressLRS receiver options.

Support EdgeTX and OpenTX
EdgeTX is installed by default (Touch screen enabled).
Note:Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.

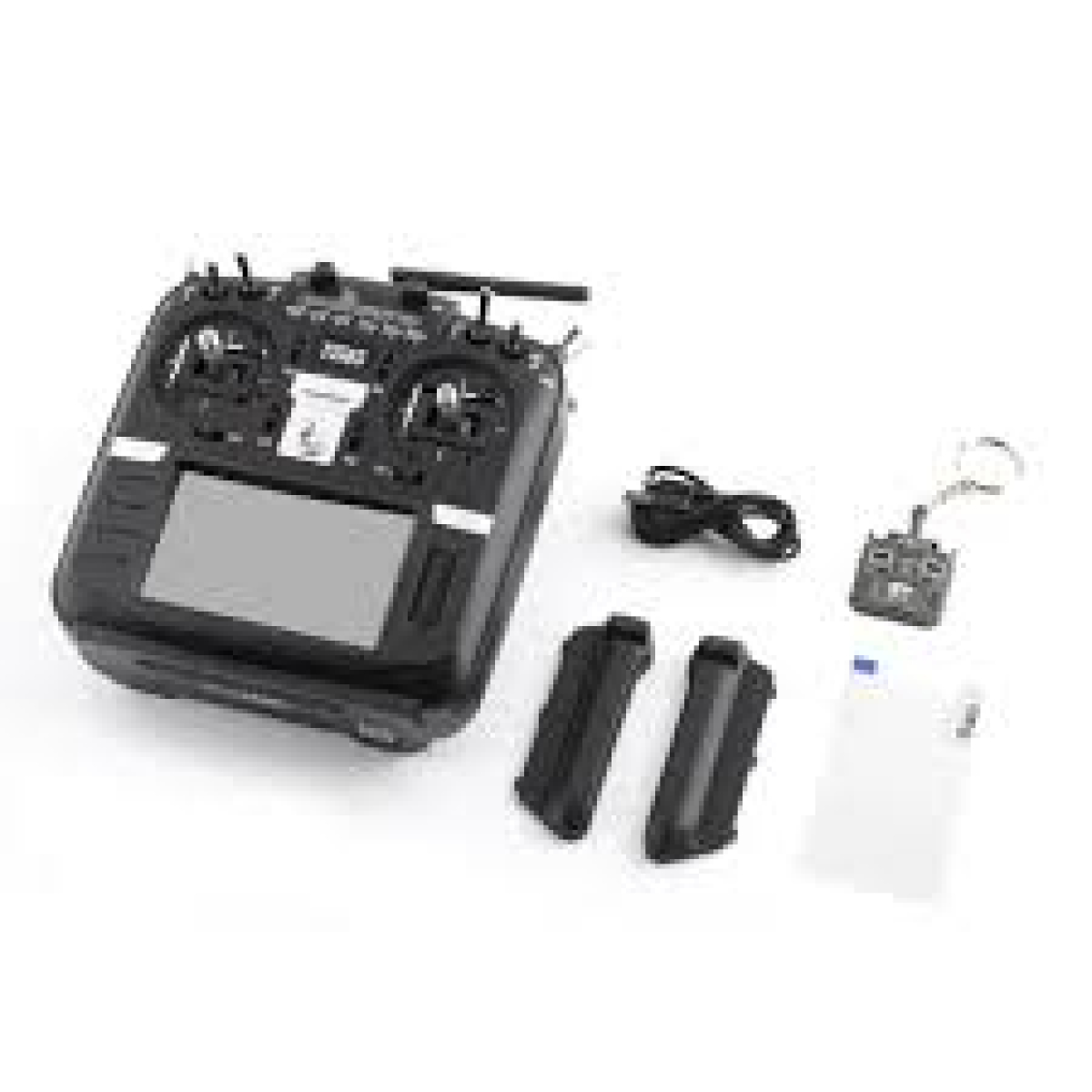

Package Includes:

1 x TX16S Mark II Radio Controller
1 x USB-C Cable
1 x Screen Protector
1 x Pair of flat grips
1 x Pair of raised grips
1 x TX16S Key Chain
1 x User Manual

Additional information
Transmitting power

Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent);
Internal ELRS : Max 250mw (transmitting power is adjustable)

Antenna gain

2db (transmit power adjustable)

Working current

400MA

Working voltage

6.6-8.4v DC

Remote control distance

>2km @ 22dbm

Channels

Up to 16 channels (depending on the receiver)

Upgrade method

Supports USB-C online / SD card offline upgrade
