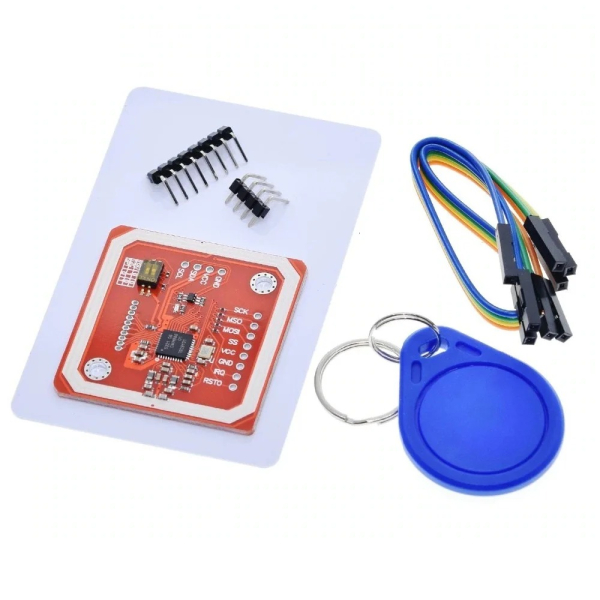

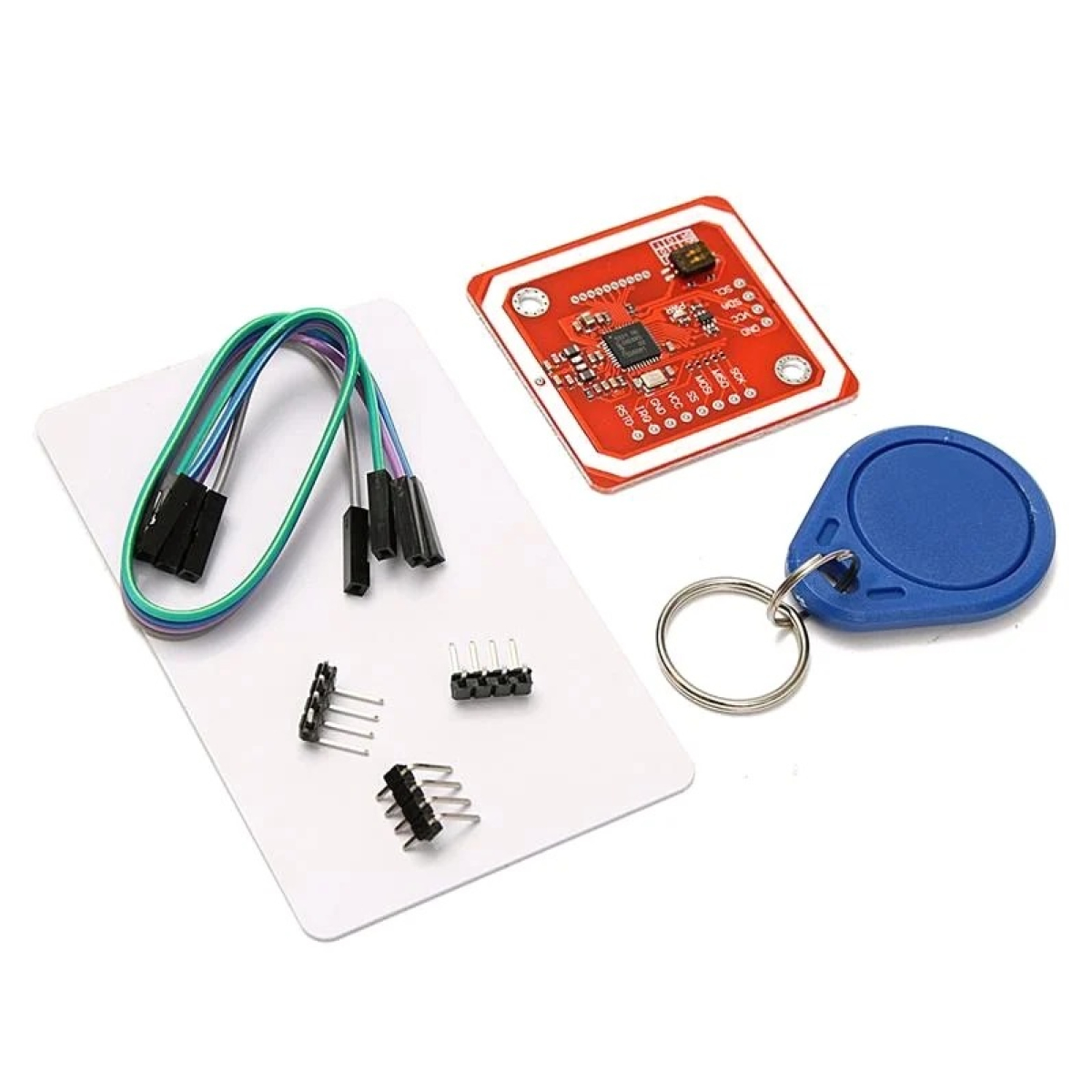

PN532 NFC RFID Read / Write Module V3 Kit

The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Module Size: 42.7mm x 40.4mm x 4mm
  2. Easy to change mode: with a small SMD toggle Switch, it becomes very easy to change among IIC, SPI and HSU modes
  3. Longer distance: the reading distance becomes 5~7cm, compared with 4~6 cm of last version
  4. Built in PCB Antenna, with 5cm~7cm communication distance
  5. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  6. Work as RFID reader/writer
  7. Work as 1443-A card or a virtual card
Additional information
Supporting Protocols

II2, SPI and HSU (High-Speed UART)
I2C / UART: 3.3V ~ 24V TTL
SPI: 3.3V TTL with 100-ohm resistors in series

Module Size

42.7 x 40.4 x 4 mm (LxWxH)
