PIR Motion Sensor

SKU: HW-416B

Features :

Infrared Sensor with Control Circuit Board
The Sensitivity and Holding Time are adjustable.
Blockade time: 2.5s (Default)
Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).

Add to wishlist

Compare

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

If you want to build a device that is used to detect sense motion and almost always used to detect whether a human has moved in or out of the sensors range. Then this Sensor is needed for you. you can buy this sensor from AGARWAL ELECTRONICS.COM at a reasonable price

The PIR Motion Sensor Detector Module HC SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensors.

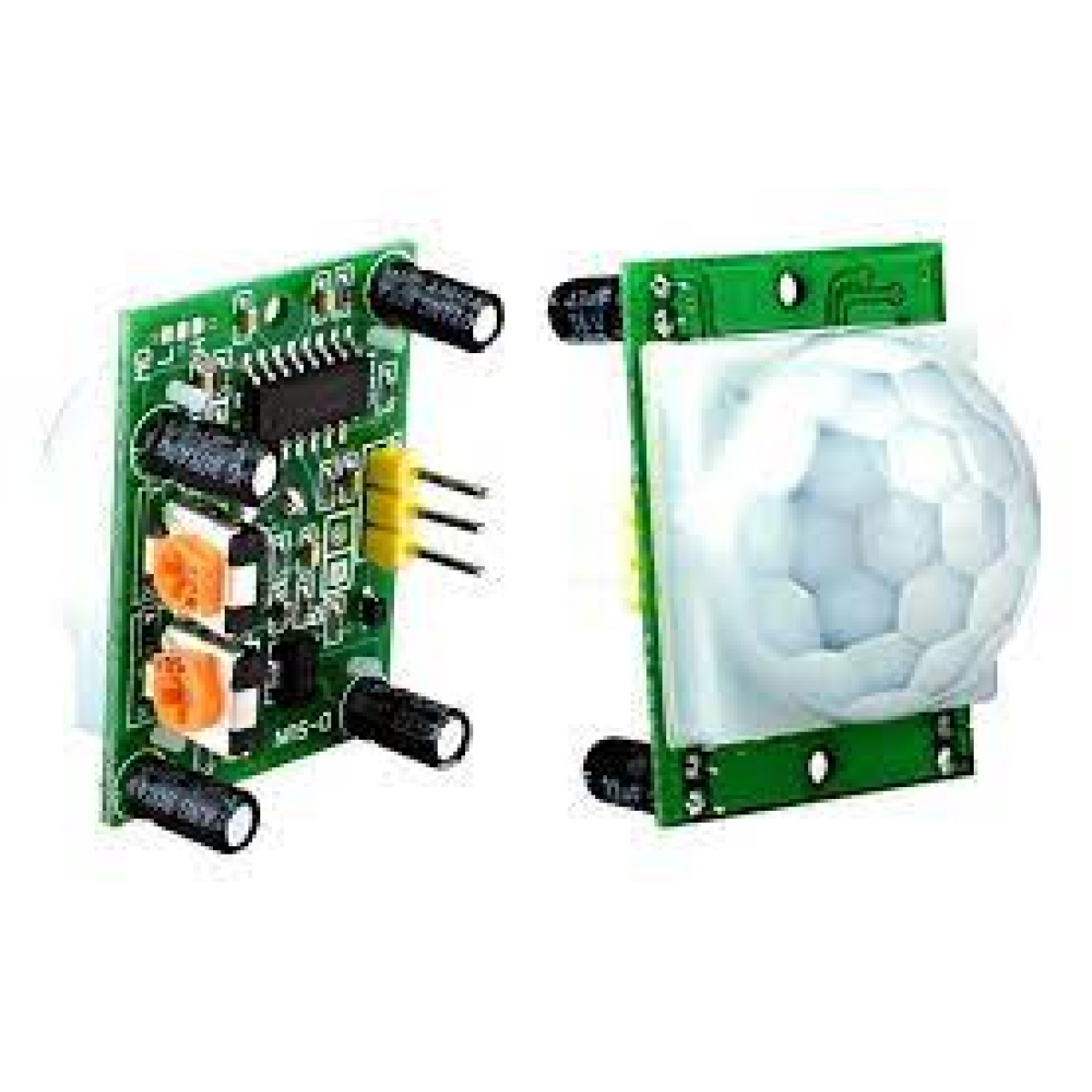

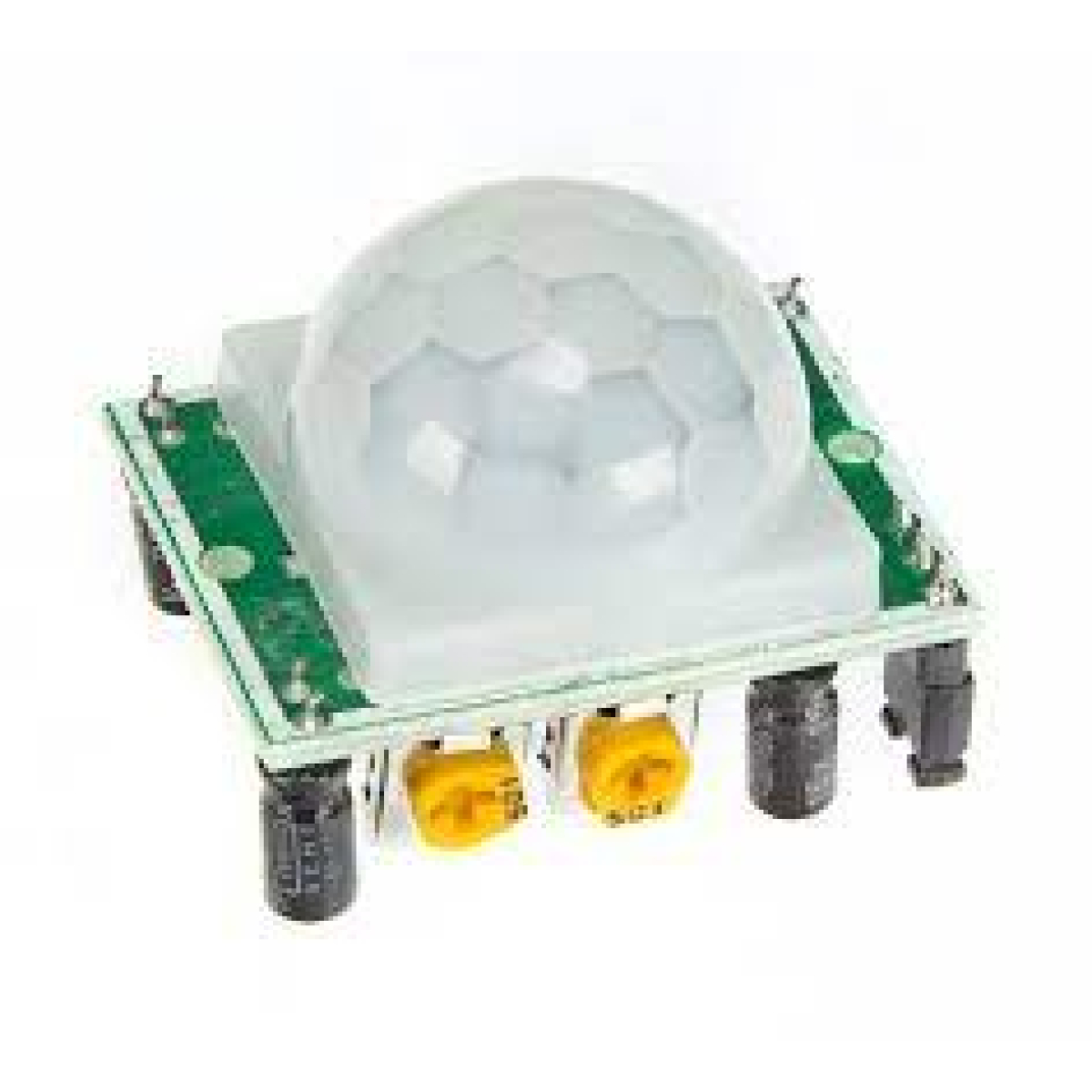

The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment potentiometer and sensitivity adjustment Potentiometer. Compatible with ARDUINO , RASPEBEERY PI , AVR, PIC , 8051 , etc.

Additional information

Operating Voltage (VDC)	4.5 ~ 20
Average Current Consumption (mA)	0.06
Distance Measuring Range (CM)	300 ~ 700
Dimensions in mm (LxWxH)	32 x 24 x 18
Operating Temperature (°C)	-20 TO 80
Detection Angle	<140°
