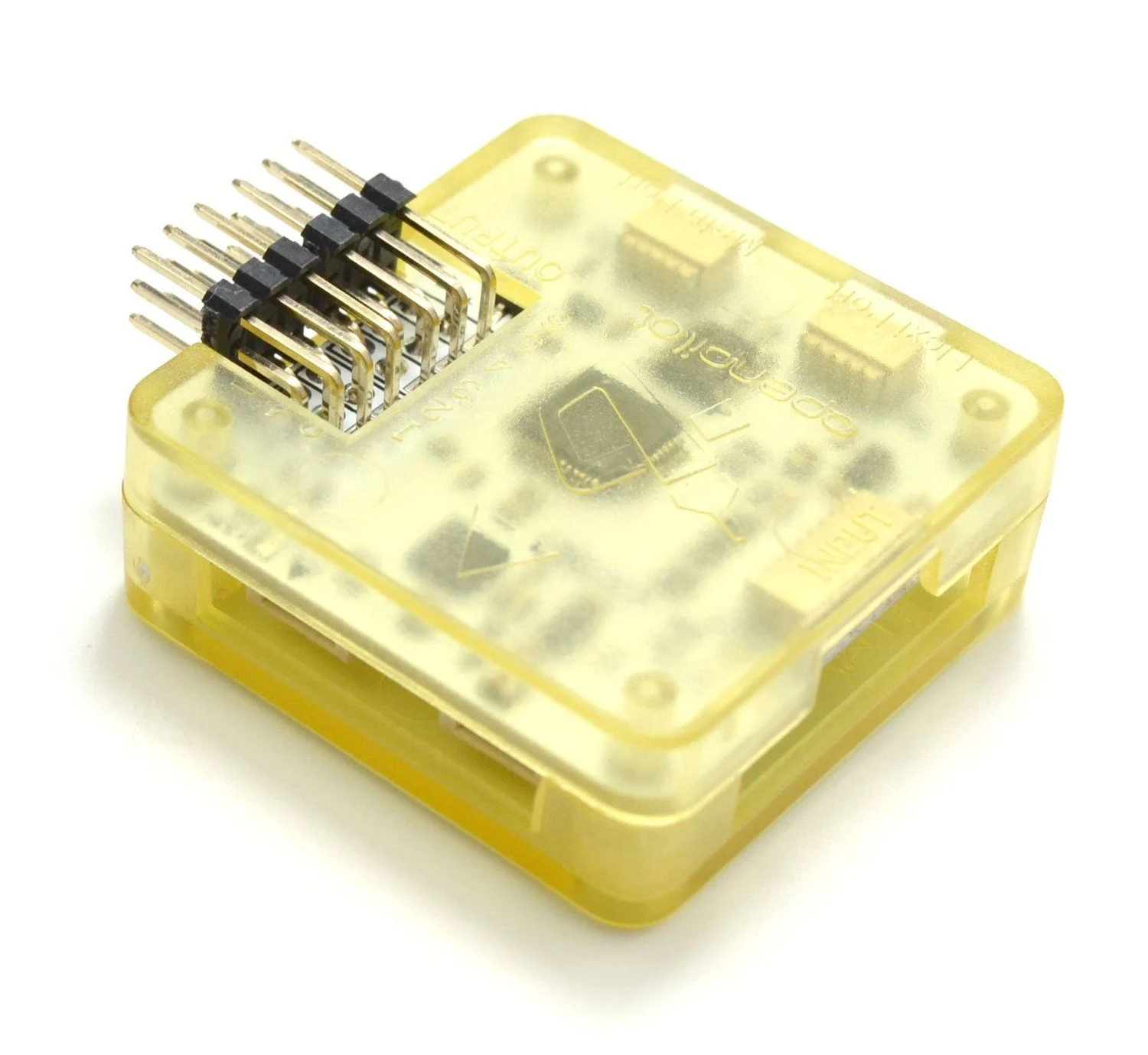

OpenPilot CC3D EVO Flight Controller with Side Pins

Are you want to be an Electronic Geek in the future and going to build your own drone then this Flight controller is best for you. The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESC’s), which translates this desired speed into a signal that the motors can understand.

This OpenPilot CC3D EVO Flight Controller Side Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. It also supports S.BUS. Evo is equipped with a powerful 32-bit STM32 processor with 128kb Flash and 20kb RAM. The 3-axis MEMs technology is used for both gyro and accelerometer.

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Runs as an App
  2. Easy to use interface
  3. Very intuitive setup Wizard
  4. Evolving code
  5.  It Used to configure the board
  6. It can run the multiple platforms
  7. With a function of being directly plugged into the satellite receiver(It needn’t conversion cable)
  8. Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
  9. 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
  10. Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
  11. Software support for Windows, Mac, and Linux.
  12. Direct high-speed USB support with no drivers required, a true plug and play device.
  13. Spektrum satellite receiver support.
  14. Futaba S-BUS hardware support.
  15. Innovative Flexi-port technology for superior port flexibility.
  16. 4Mbits on-board EEPROM for configuration storage.
Additional information
Input Voltage (V)

5V

Sensors

3-Axis Gyrometer, Accelerometer

Processor

Micro-Controller STM32, Sensor IC: MPU6000

Dimensions (mm) LxWxH

40 X 40 X 18
