NRF24L01+PA+LNA SMA Wireless Transceiver Antenna

Name: NRF24L01+PA+LNA SMA Wireless Transceiver Antenna
SKU: HW-725
Availability: InStock

SKU: HW-725

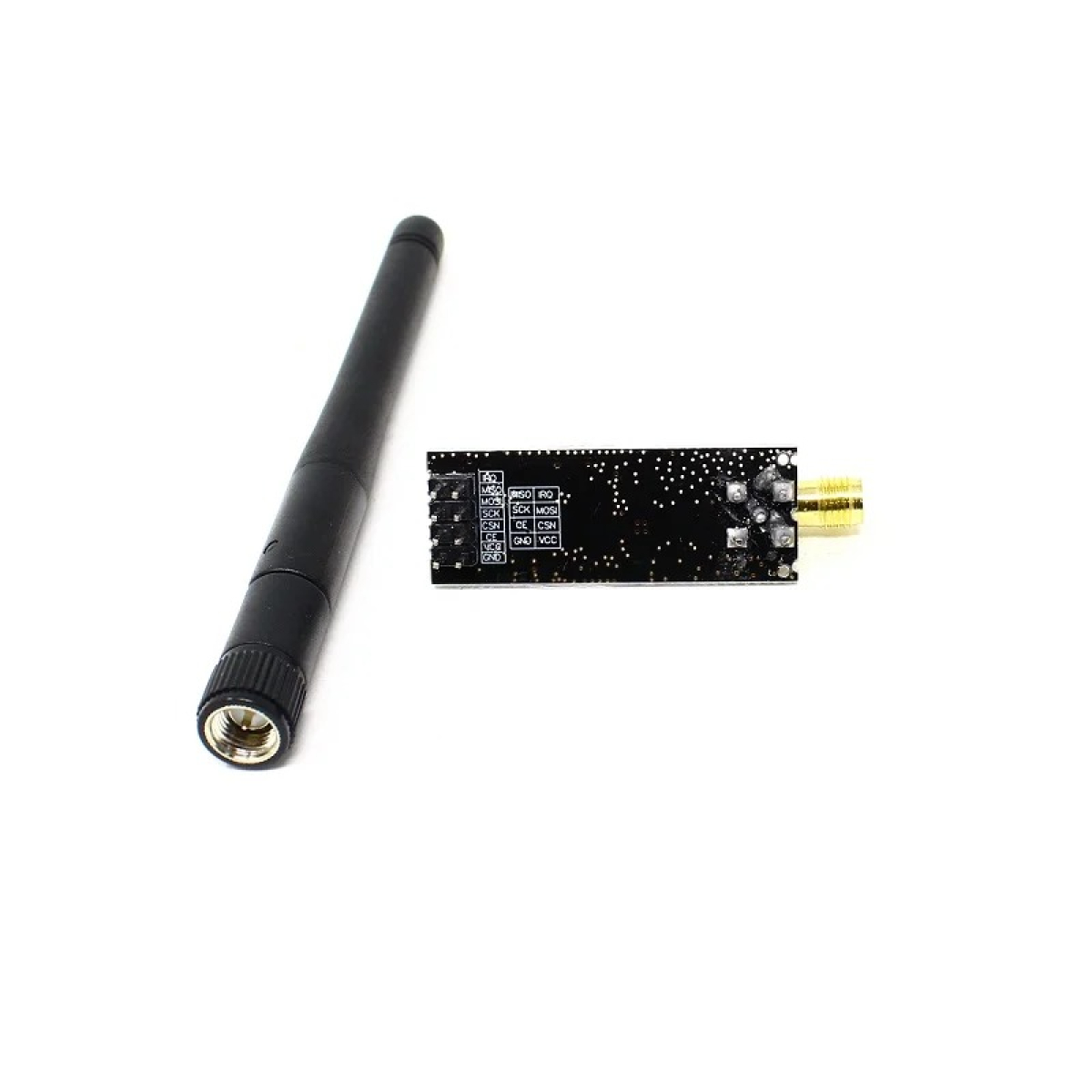

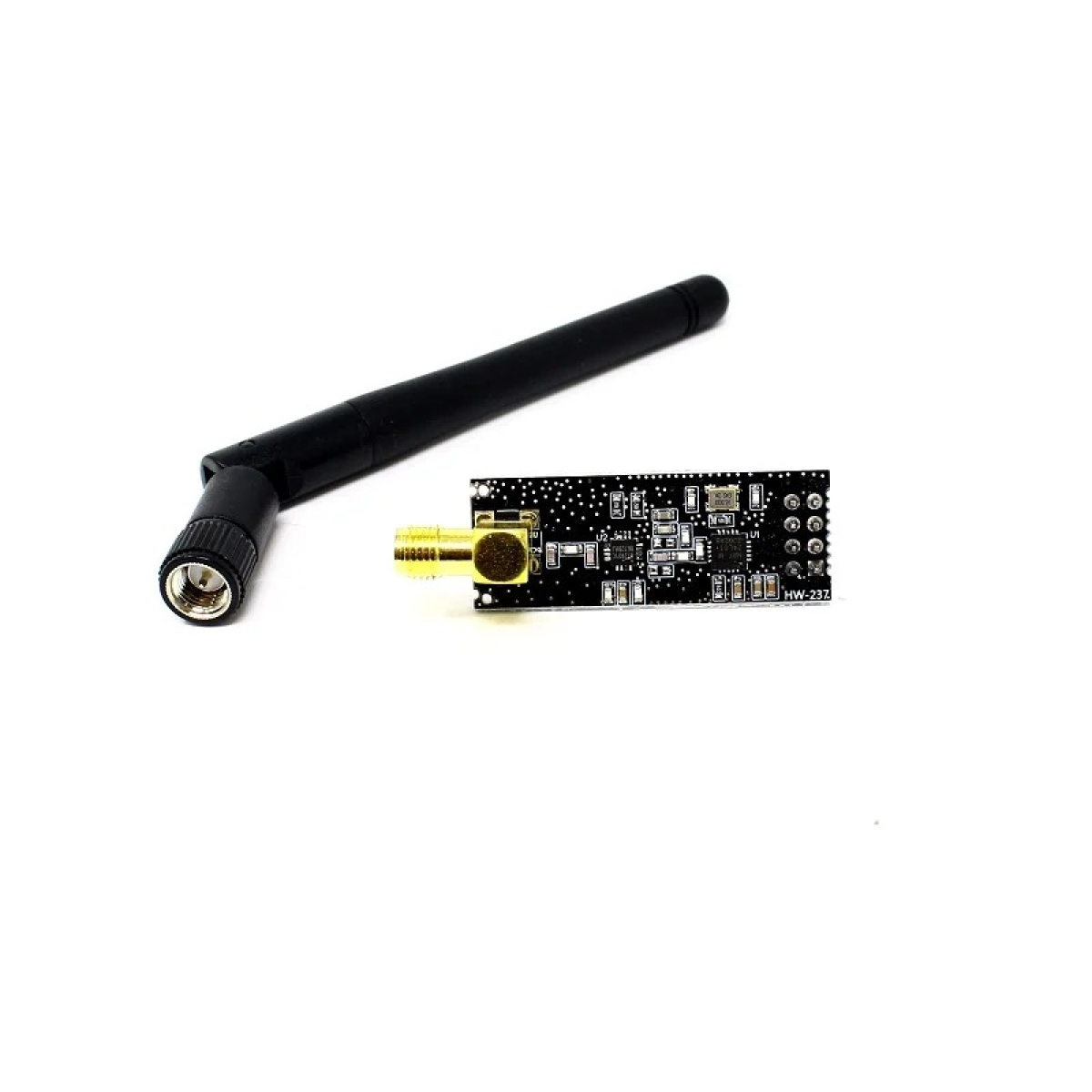

This board features a reverse polarized SMA connector for maximum RF range. And there is PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts.

This module comes with the 2.4G antenna (2DB), with a 250Kbps transmission rate on open-air it can reach the 800-1K meters communication distance.

Add to wishlist

Compare

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Voltage: 3-3.6V (recommended 3.3V) V.
Maximum output power: +20dBm.
Power-down mode current: 4.2uA.
Operating Range: 1Km
Antenna Gain (peak): 2Dbi.
2MB rate (Open area): 520m.
1MB rate (Open area): 750m.
250Kb rate (Open area): 1100m.
It uses 2.4GHz global open ISM band, with license free.
SPI interface facilitates the communication with MCU I/O port.

Additional information

Input Supply voltage (V)	3 ~ 3.5 (recommended 3.3V)
Working current in transmit mode (mA)	115
Maximum output power (dBm)	+20
Power-down mode current (μA)	4.2
Operating Range (Km)	1
