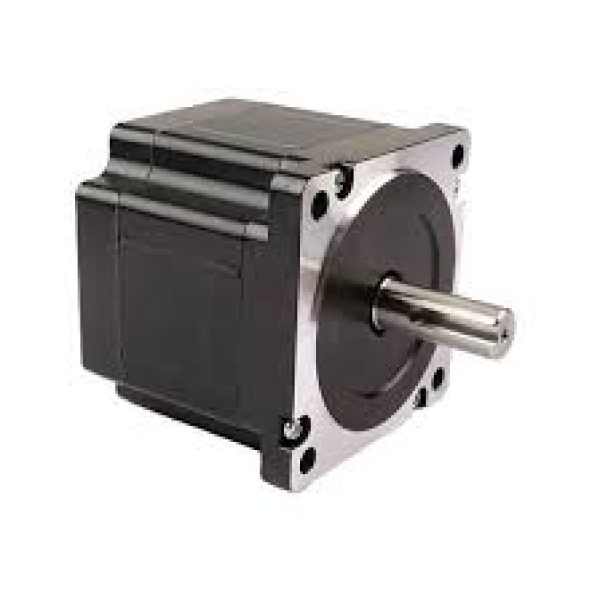

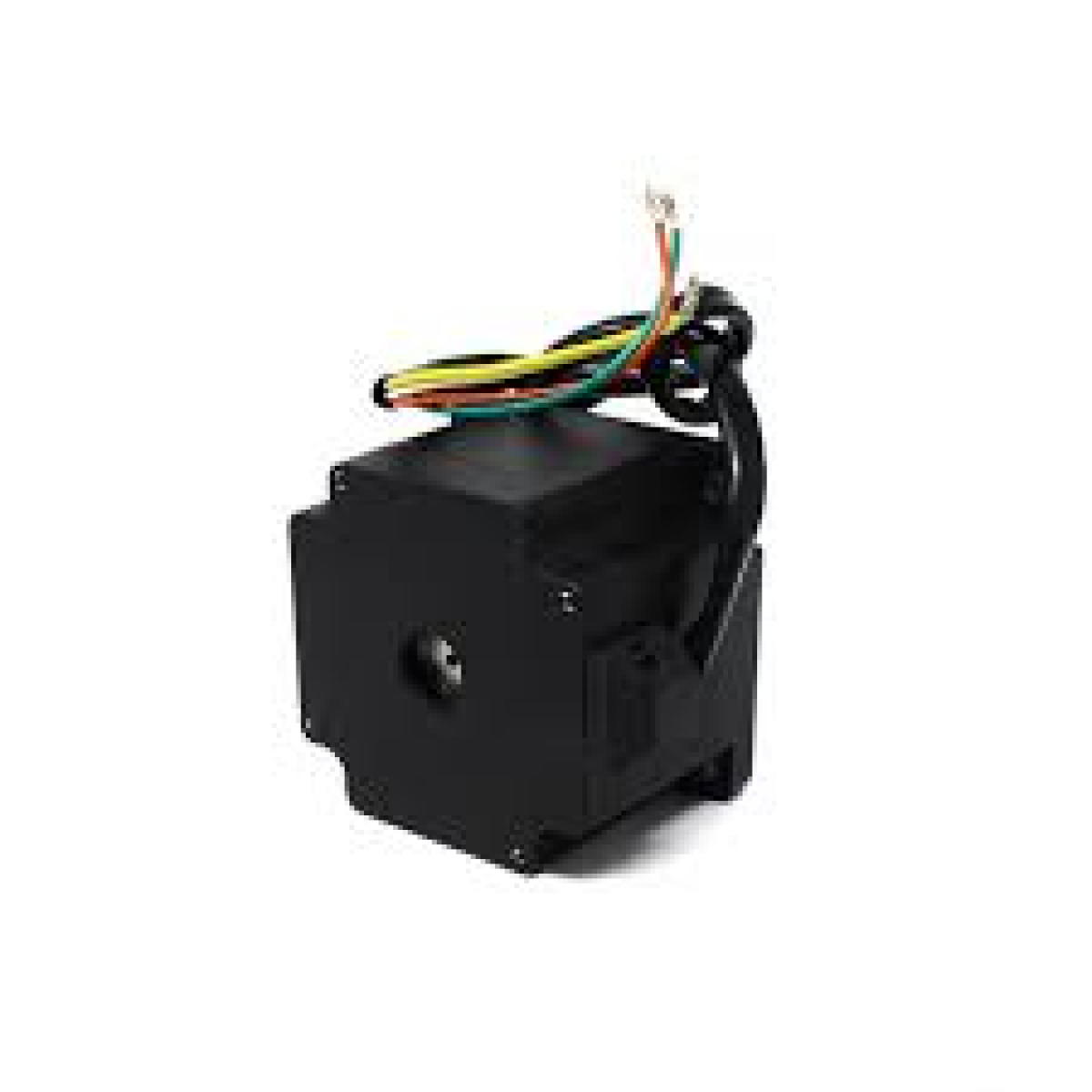

NEMA34 34kg Stepper

It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The Nema17 34kg-cm Stepper motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

  1. The input pulse decides the rotation angle of the motor.
  2. High accuracy of around 3 to 5% a step.
  3. It provides good starting, stopping, and reversing.
  4. Control of this motor is less costly because of the exclusion of complex control circuitry.
  5. The speed is proportional to the frequency of the input pulses.
Additional information
Operating Current (A)

5.9

Resistance (Ω)

0.28

Inductance (mH/Phase)

1.7

Holding Torque (Kg-Cm)

34
