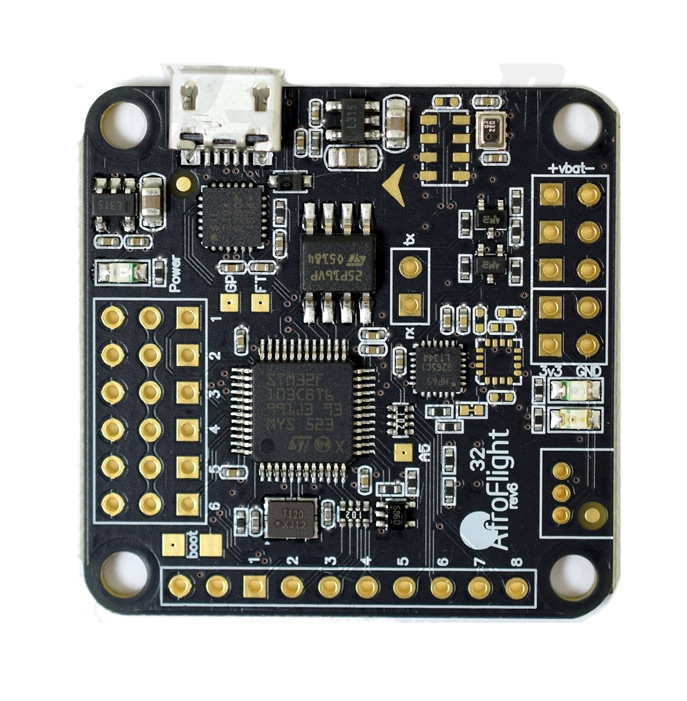

Naze32 10DOF Flight Control Board

Name: Naze32 10DOF Flight Control Board
SKU: 3857
Availability: InStock

Naze32 10DOF Flight Control board is designed to run on most frames with stock PIDs, just a few minor settings to get it going. It flies extremely well and offers stunt mode (no auto-level), Horizon Mode (auto level when sticks near the center, so you can still flip, etc), and Angle mode (always auto level and limit bank and pitch to 45 degrees). Tight flips and pinpoint point rolls are possible.

The plus version includes a Magnetometer and Barometer required for GPS functionality and heads free modes. Designed for standard servo connectors (no special cables), and vertical pins to reduce overall footprint. It will run the 32 bit port of the MultiWii RC flight controller firmware, running an ATmega32u4. Use the Chrome Baseflight Configurator for the GUI.

Add to wishlist

Compare

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Axis: 2000 degrees/second 3-axis MEMS gyro.
Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line.
Built-in FrSky telemetry inverter (shared w/main port).
A modern 32-bit processor running at 3.3V/72MHz (STM32F103CB).
Onboard MicroUSB for setup and configuration.
Multi WiFi-based configuration software for easy setup.

Additional information
