Multi Band PCB Antenna

This is a PCB Antenna having a frequency of 698-960MHz, 1710-2690MHz & 3400 – 3800MHz with 2/ 2.5/ 3.5 dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. This antenna comes with an IPEX MHF1 Female connector to connect with application. (We can also arrange your Required connector if you need the antenna in bulk quantity) One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Frequency (MHz): 698-960MHz, 1710-2690MHz & 3400 – 3800MHz
  2. Gain: ~2/ 2.5/ 3.5 dBi
  3. Impedance (Ω): 50

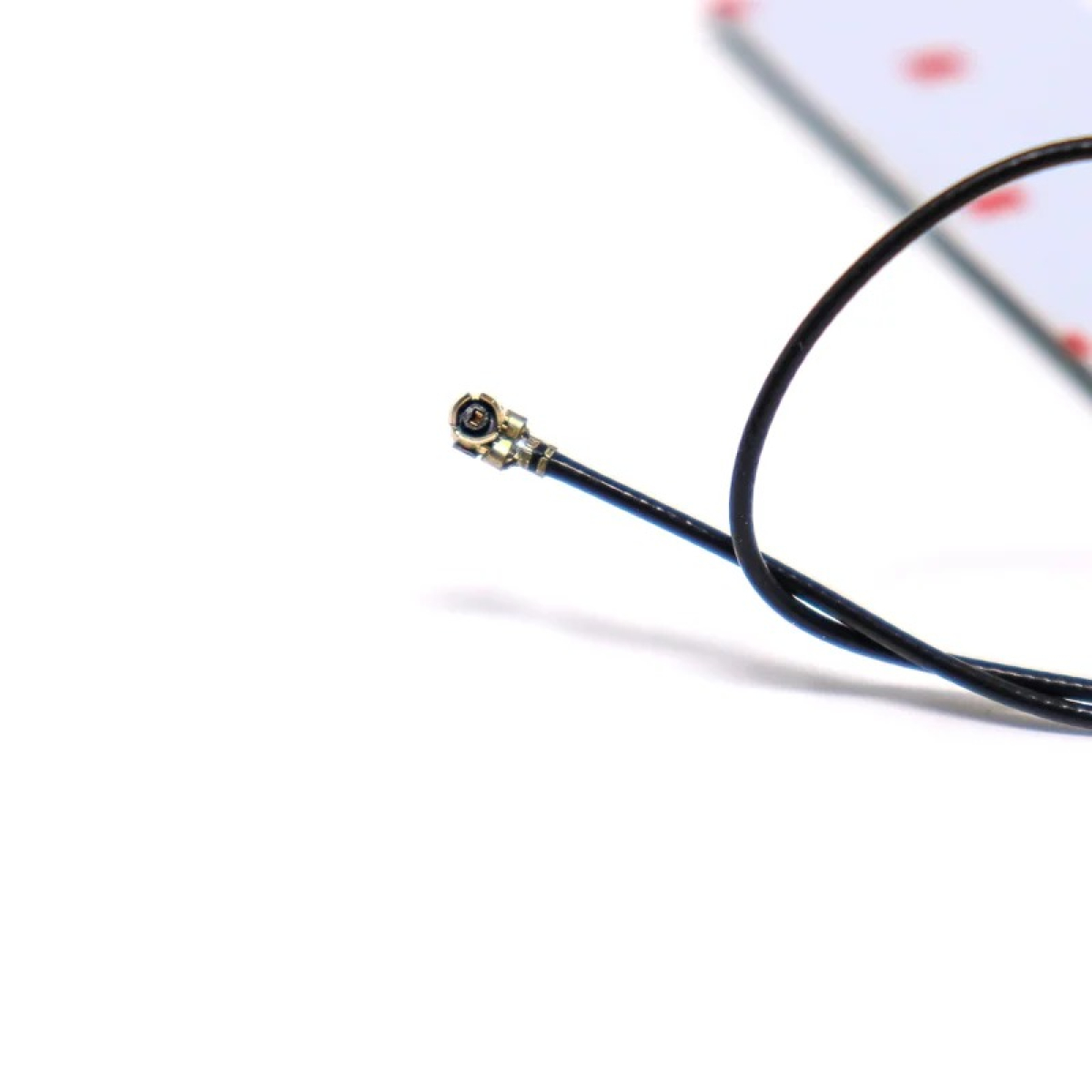

  4. Connector Type: IPEX MHF1 (Female)
  5. VSWR : <3.0
  6.  Internal PCB Antenna for 2G / 3G / 4G / 5G / WiFi Applications
  7. Compact Size
  8. High quality
  9. Low cost

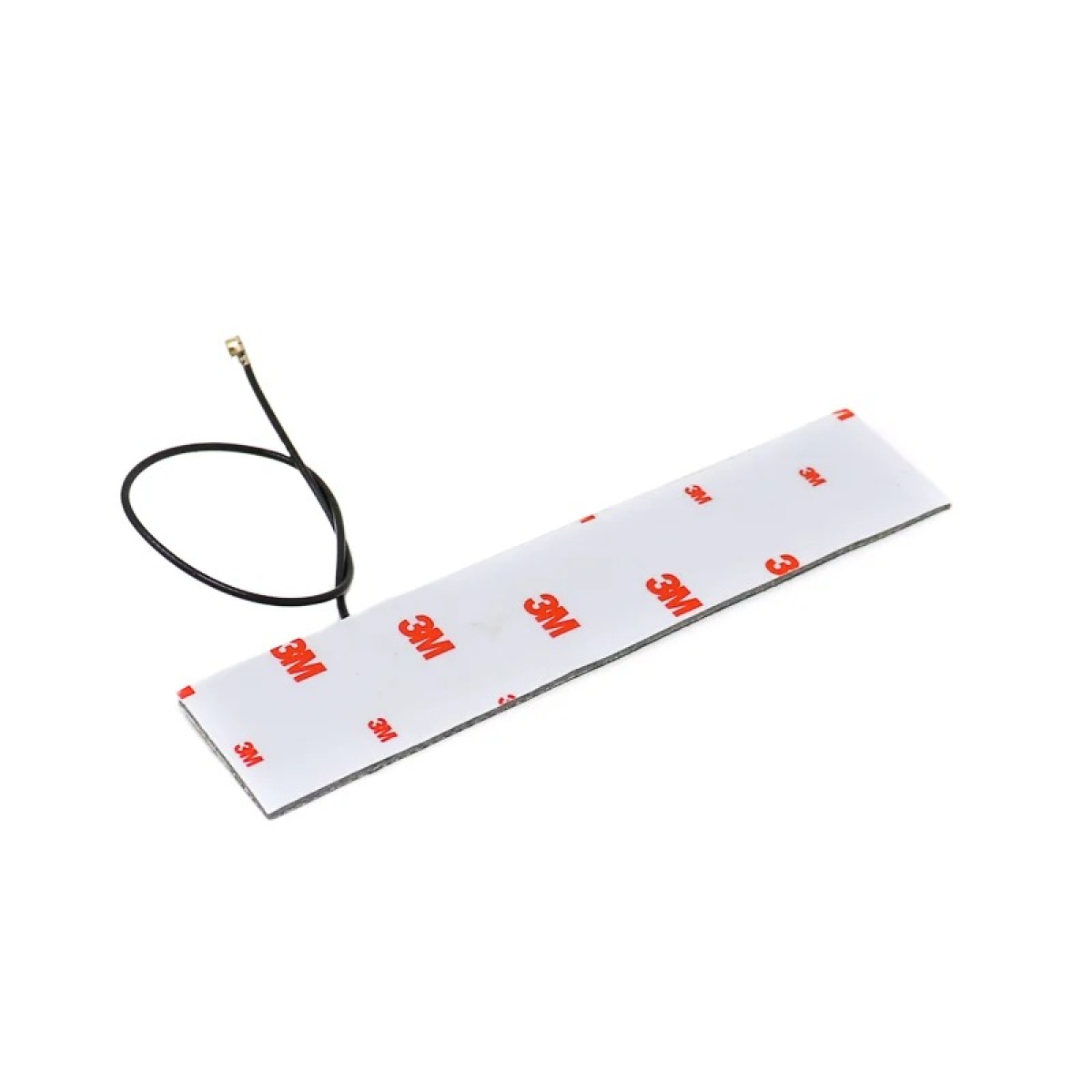

  10. 3M high-quality adhesive
  11. Masking for corrosion-free
Additional information
Gain

~ 2/ 2.5/ 3.5 dBi

HPBW

H: 3600; V: 300/400/450

CABLE

Coax 0.81/ 1.13mm/ RG178/ RG316

Operating Temperature Range (°C):

-30 TO 60
