Interface |
I2C |
---|---|
Weight (gm) |
10 |
Shipping Weight |
0.015 KG |
Shipping Dimensions |
5 X 5 X 1 CM |
- Connection Interface: I2C.
- Operating Voltage: 2.5-3.6 VDC
- Application: Capacitive Touch Sensor Controller
- Number of touch inputs:12

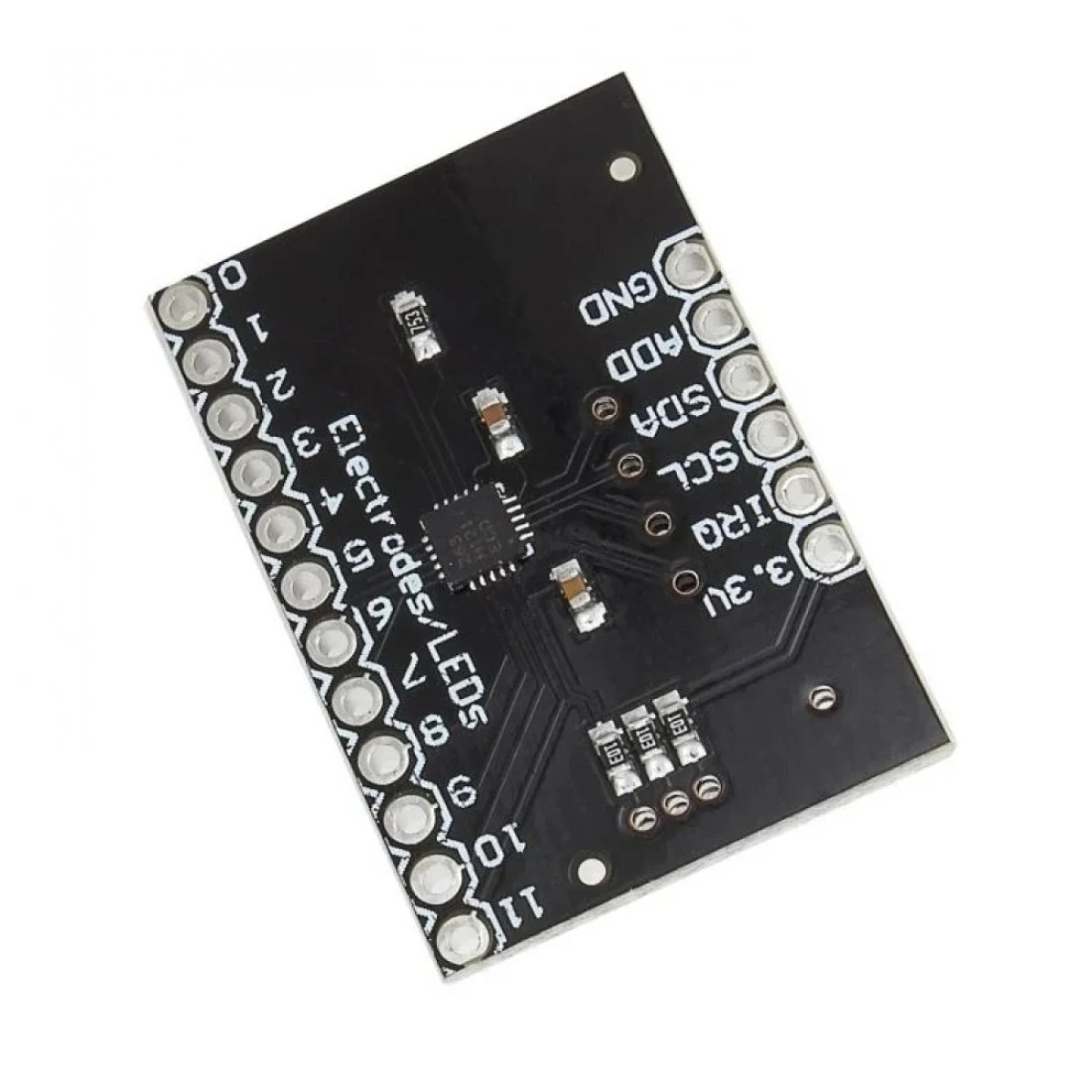

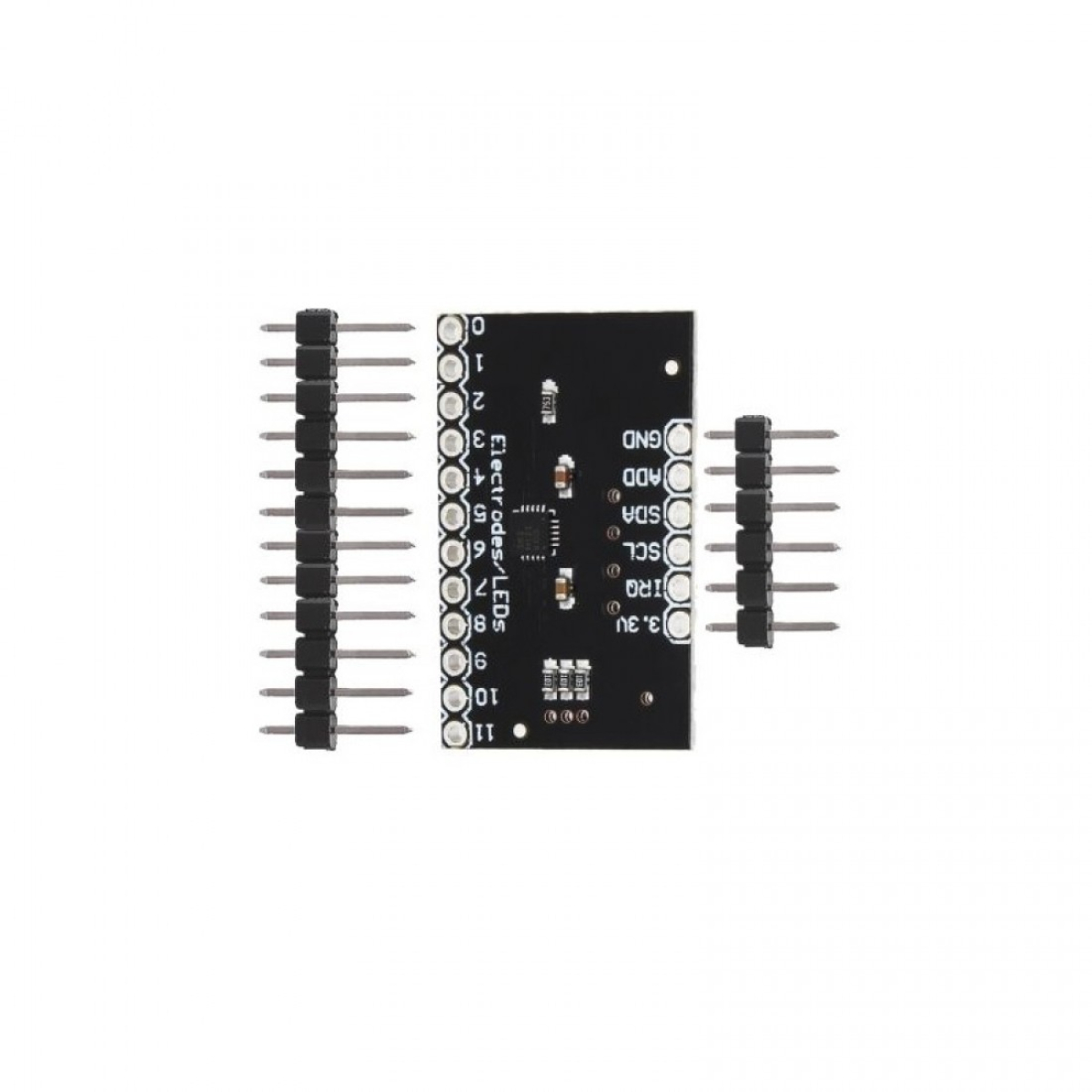

This MPR121 is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode The MPR121 also features eight LED driving… pins, when these pins are not configured as electrodes, they may be used to drive LEDs. There a four jumpers on the bottom of the board, all of which are set (closed) by default.
Interface |
I2C |
---|---|
Weight (gm) |
10 |
Shipping Weight |
0.015 KG |
Shipping Dimensions |
5 X 5 X 1 CM |
