MQ7 – Carbon (co)

SKU: HW-115

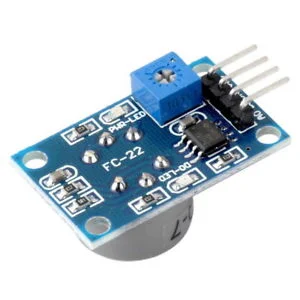

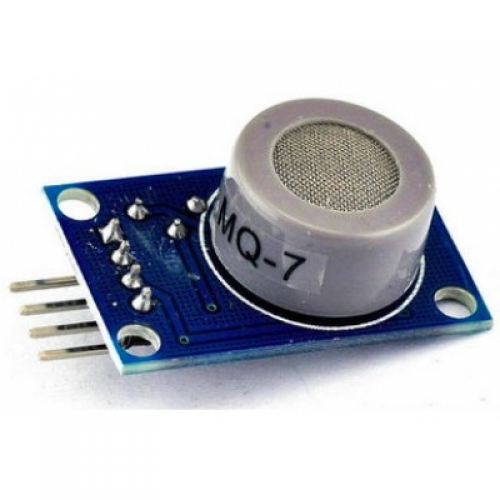

MQ-7 CO Carbon Monoxide Coal Gas Sensor Module detects the concentrations of CO in the air and outputs its reading as an analog voltage. The sensor can measure concentrations of 10 to 10,000 ppm.

The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5 V.

This module provides both digital and analog outputs. The threshold level for digital output can be easily adjusted using the preset on the board. The MQ-7 sensor module can be easily interfaced with Micro-controllers, Arduino and etc.

Add to wishlist
Compare
10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. The analog output voltage, the higher the concentration the higher the voltage.
  2. The carbon monoxide detection with better sensitivity.
  3. There are four screw holes for easy positioning.
  4. With a long service life and reliable stability.
  5. Rapid response and recovery characteristics.
Additional information
Range

10 ~ 1000 ppm
Characteristic gas

100 ppm CO
Heating current

≤ 180 mA
Ambient temperature (°C)

-20 ~ + 50
