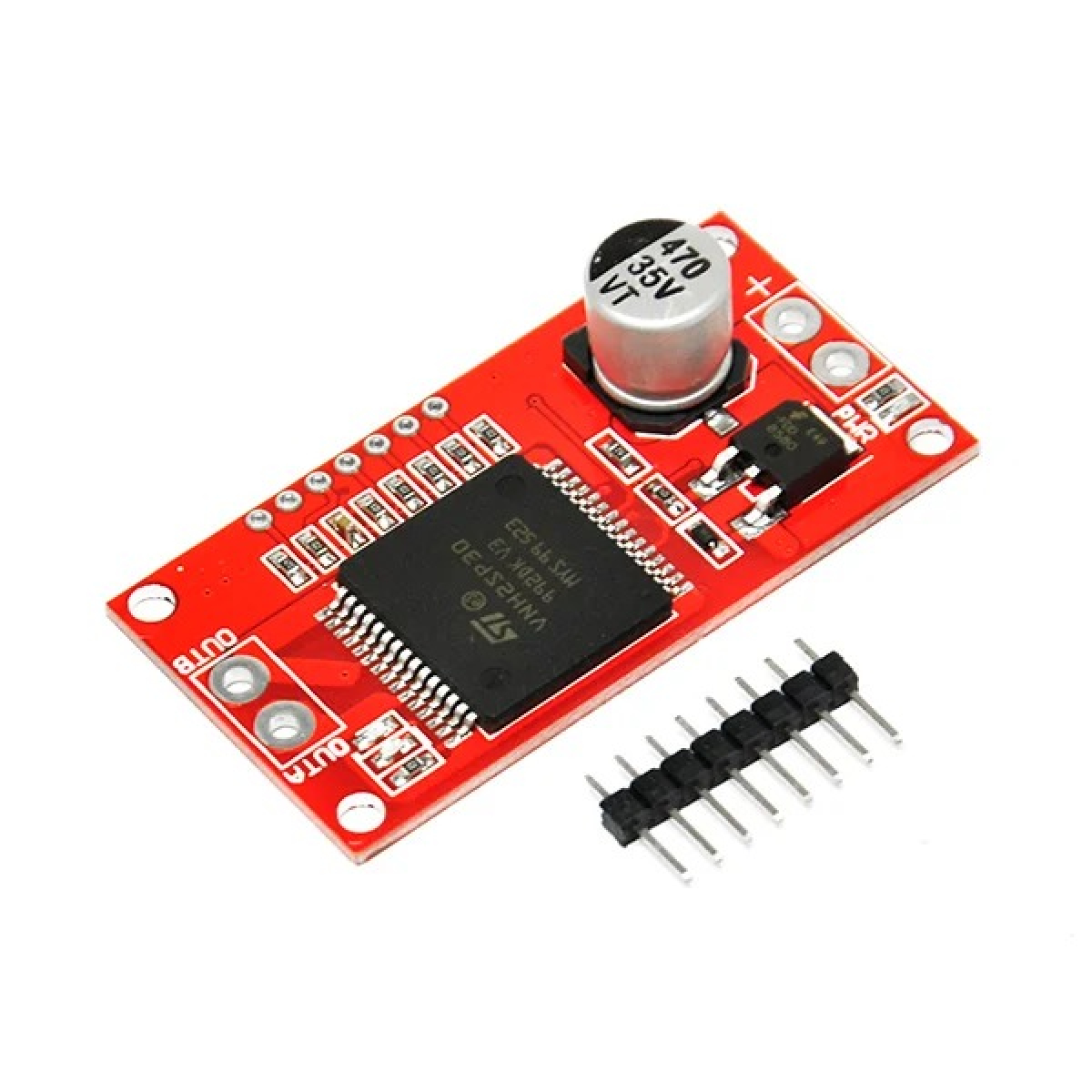

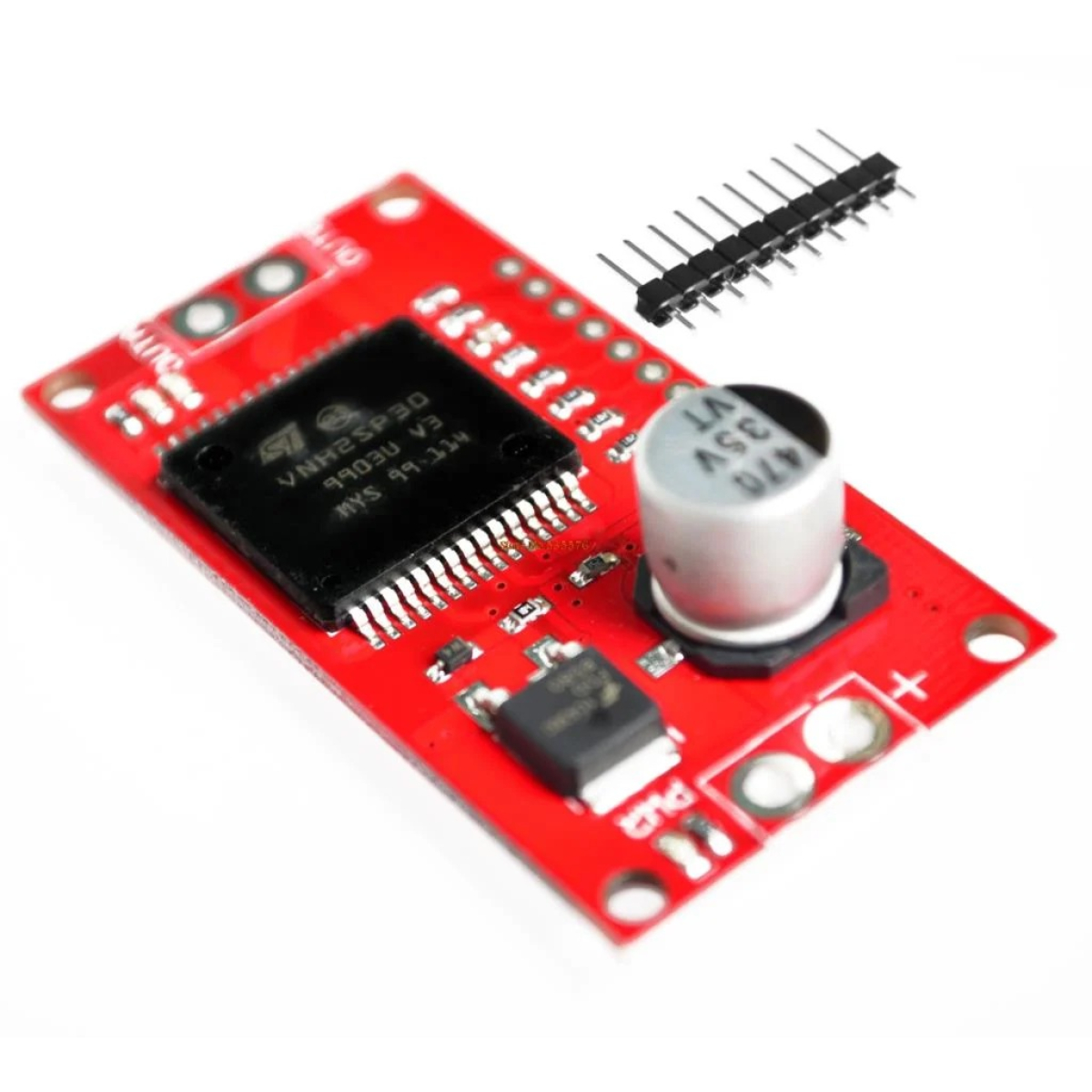

Monster Moto Shield VNH2SP30 Motor Driver 14A (Peak 30A)

SKU: HW-241

Monster Moto Shield VNH2SP30 Motor Driver 14A (Peak 30A) is essentially a ramped-up version of our Ardumoto motor driver shield. For this Monster Moto Shield, we’ve replaced the L298 H-bridge with a pair of VNH2SP30  full-bridge motor drivers.

Add to wishlist
Compare
16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Voltage Max: 16V
  2. Maximum current rating: 30 A
  3. Practical Continuous Current: 14 A
  4. Current sensing available to Arduino analog pin
  5. MOSFET on-resistance: 34 mΩ
  6. Maximum PWM frequency: 10 kHz
  7. Thermal Shutdown
  8. Undervoltage and Overvoltage shutdown.
Additional information
Over-Current Protection (A)

YES
Arduino Sheild

No- can be used with Wire connection
Dimensions in mm (LxWxH)

55 X 28 X 12
Maximum PWM frequency

20 kHz
