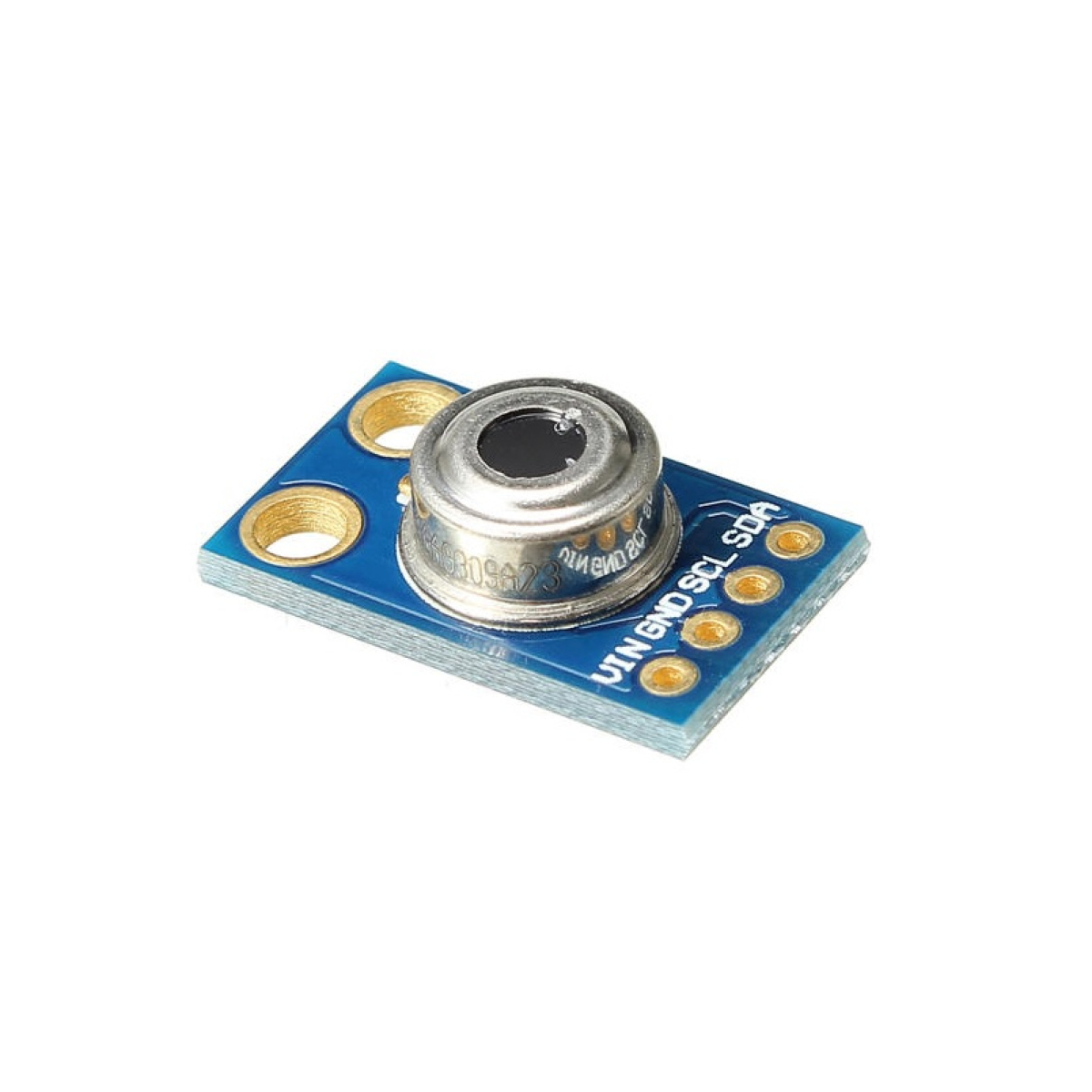

MLX90614 Module GY906

Name: MLX90614 Module GY906
SKU: HW691
Availability: InStock

SKU: HW691

If You are wandering to Build a Device Which is used to measure the temperature of a hot object like machines, flames, hot iron, device CPU. Then this MLX90614 ESF Non-Contact Human Body Infrared Temperature Measurement Module is Needed for you.

The MLX90614 ESF is an Infra-Red thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.

Add to wishlist

Compare

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Works from 3.3V to 5V input, Module has power regulator IC built-in.
Standard I2C interface with built 2x pull up resistors
When measuring the temperature, please maintain a measuring distance of 1 cm
Small size, low cost
Easy to integrate
The factory was calibrated in a wide temperature range: -40 to 125 °C for sensor temperature and -70 to 380 °C for object temperature.
High accuracy of 0.5°C over the wide temperature range (0..+50 C for both Ta and To)
Medical accuracy of 0.1°C in a limited temperature range available on request
The measurement resolution of 0.01°C
SMBus compatible digital interface for fast temperature readings and building sensor networks
Customizable PWM output for continuous reading
Simple adaptation for 8 to 16V applications
