Input Voltage |
115V~240V AC |
---|---|
Output Voltage |
12V DC |
Maximum Output Current |
6A |
Rated Power |
72W |
Efficiency |
89% |
Operating Temperature |
-30°C to 70°C |
SIZE |
98x100x30mm |

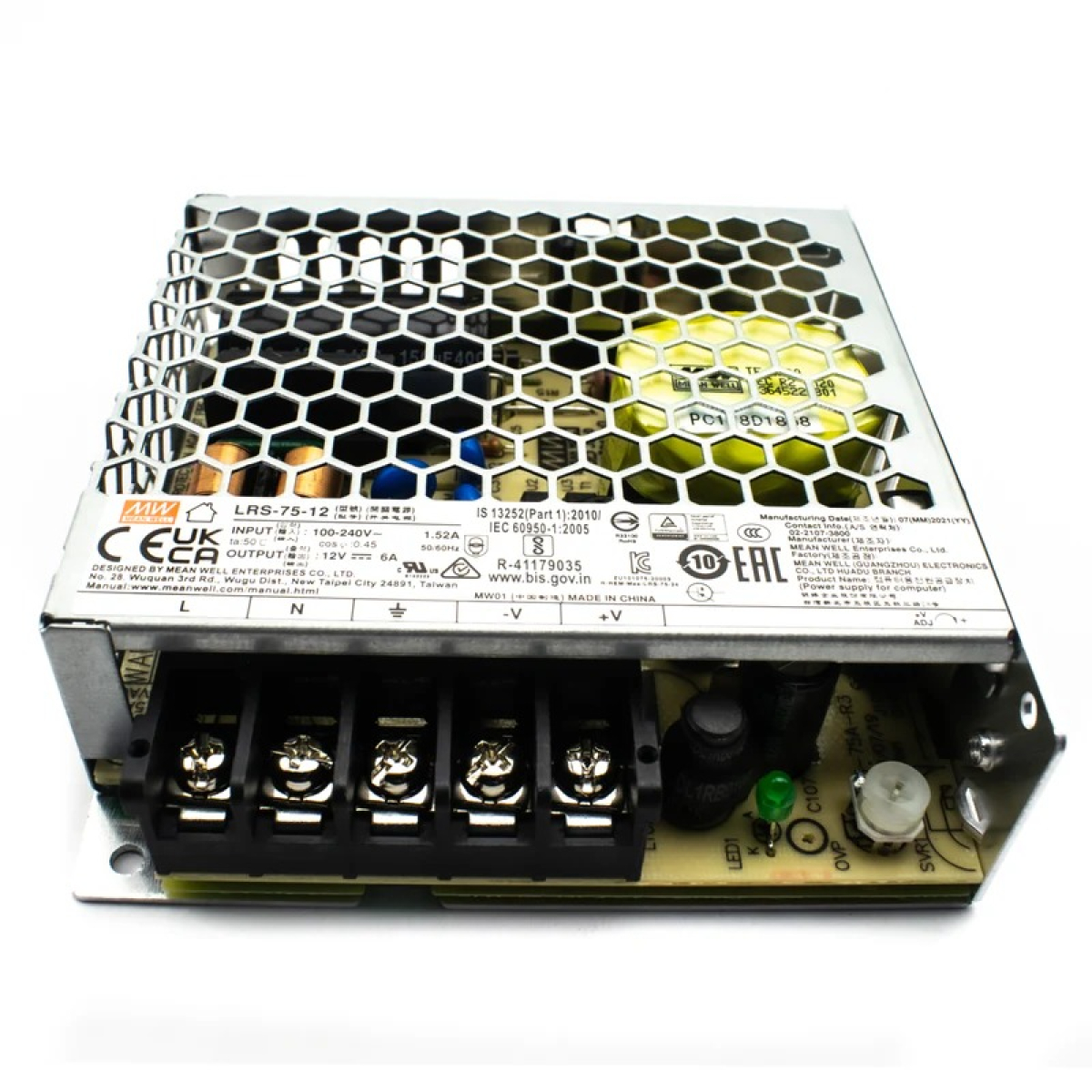

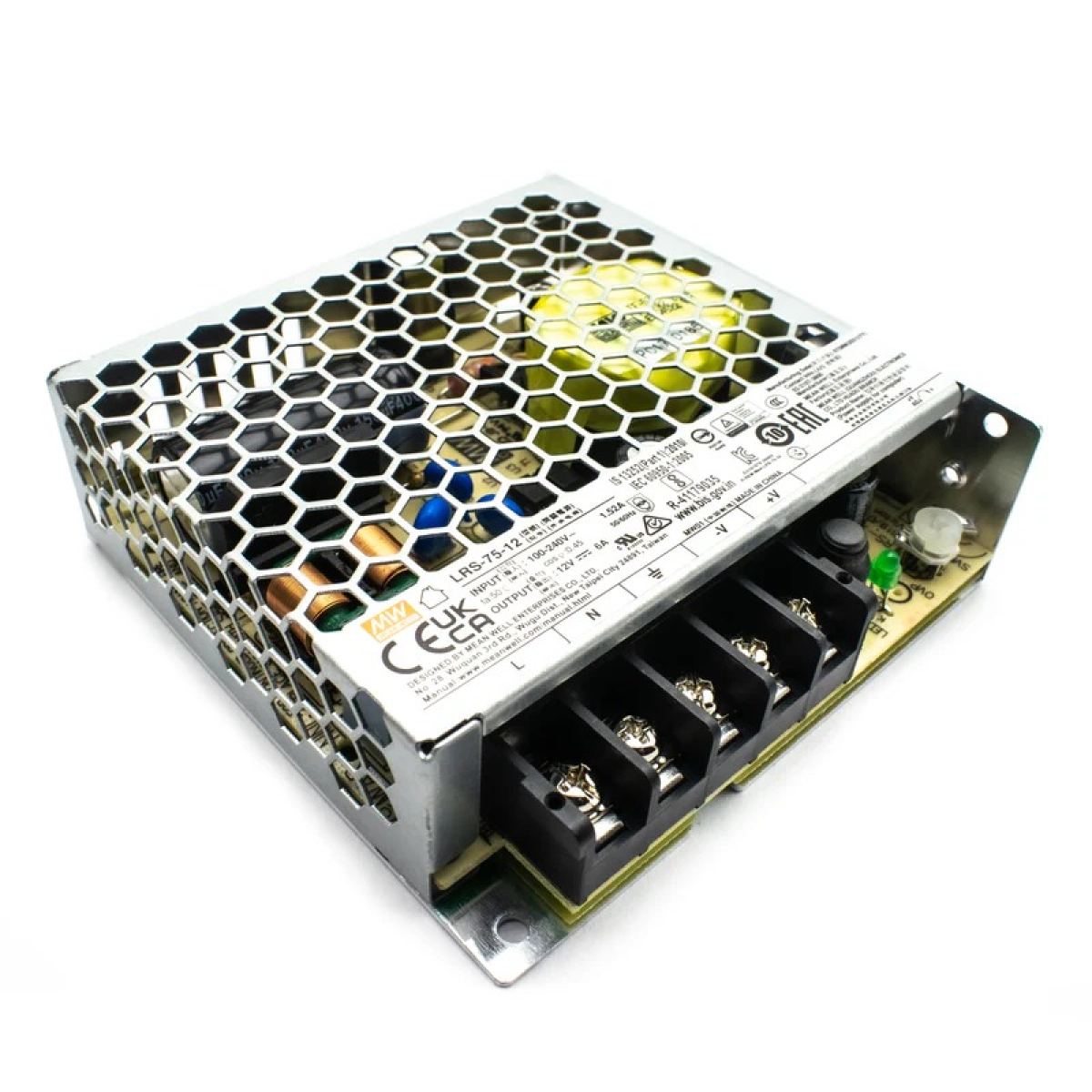

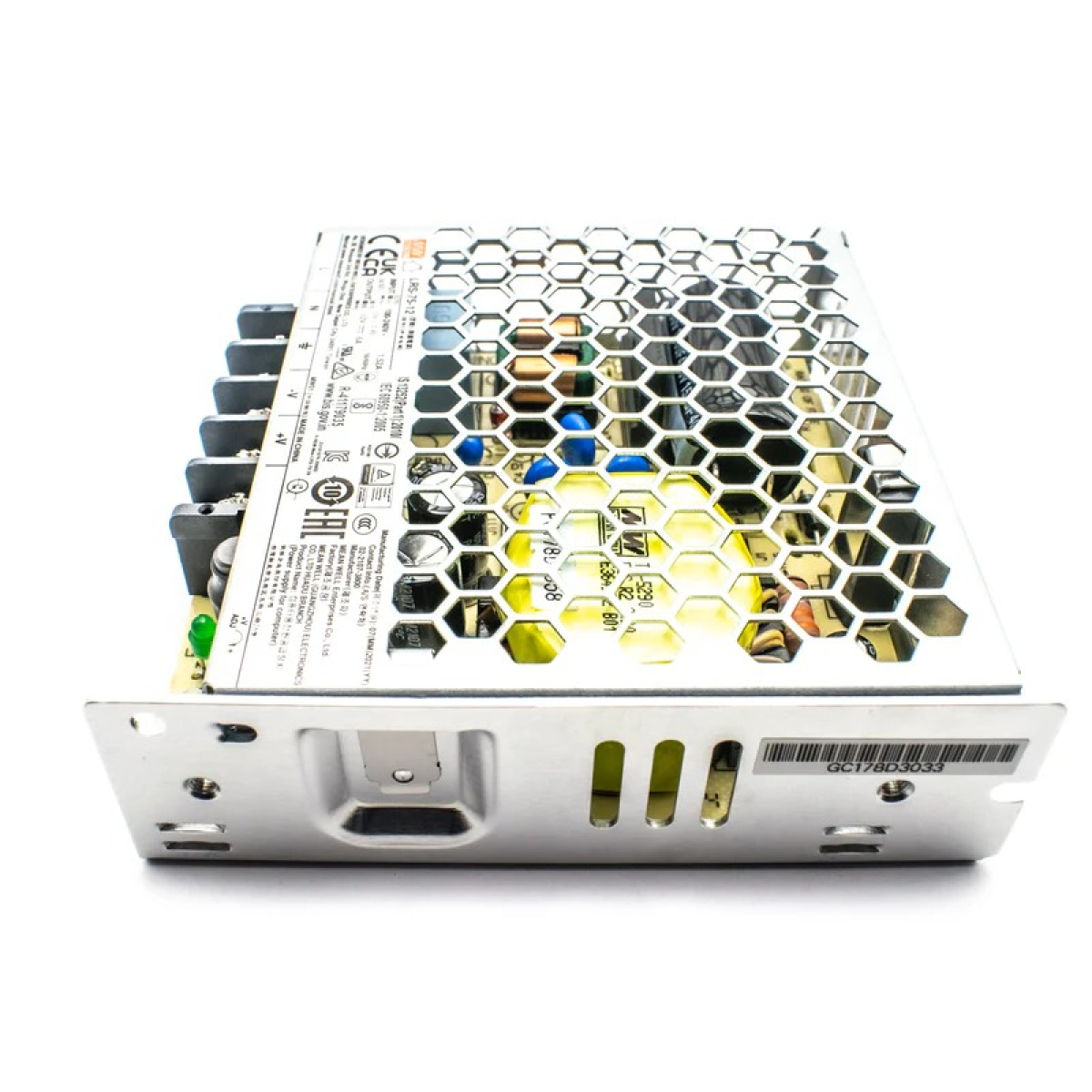

Meanwell’s LRS-75 series is a 72W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85-264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 12V. The SMPS has high efficiency up to 89%, the design is of metallic mesh case which enhances the heat dissipation of LRS-75 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.3W), which allows the end system to easily meet the worldwide energy requirement. Meanwell’s LRS-75 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-75 series can be used for many purposes with the best performance from it.
Pinout:
Pin No. | Pin name | Description |
1,2 | AC/L&N | Supplied AC Voltage (85 ~ 264VAC) |
3 | FG | GND |
4 | V- | DC OUTPUT -V |
5 | V+ | DC OUTPUT +V (12V) |
