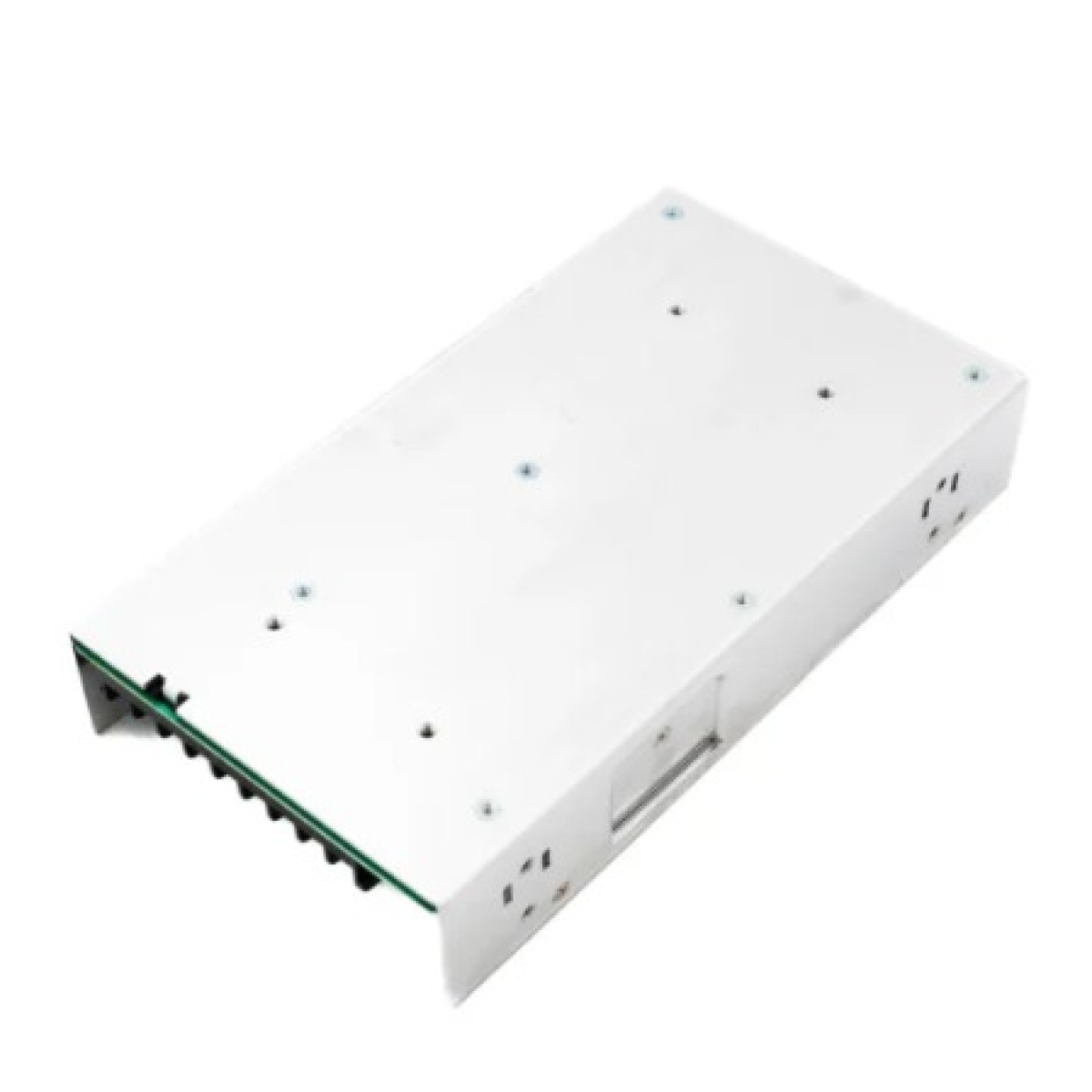

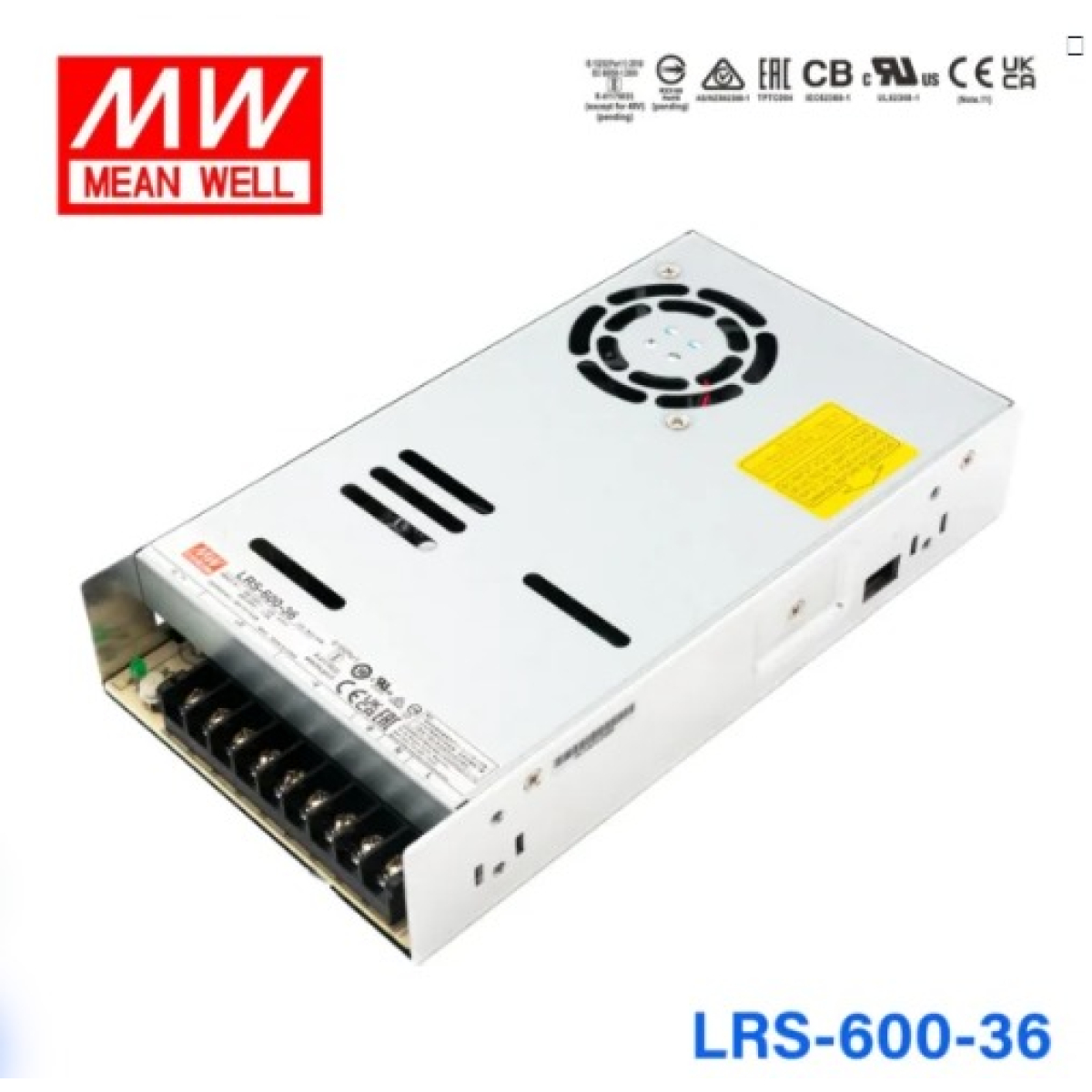

Meanwell SMPS LRS – 600-36 36V 16.6A 598W

FEATURES :

  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 second
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling
  • Built-in cooling Fan ON-OFF control
  • 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 65°C
  • Operating altitude up to 5000 meters

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

LRS-600-36 series is a 600W single-output enclosed type power supply with 41mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage ine of 36V and 48V.In addition to the high efficiency up to 92%, with the built-in long life fan LRS-600 can work under -20-+65°C with full load. LRS-600 has the complete protection functions and SG anti-vibration capability: It is complied with complete international safety regulations. LRS-600 series serves as a high price-to-performance power supply solution for various industrial applications.

Additional information
OUTPUT VOLTAGE CHANNEL 1:

36VDC

NUMBER OF OUTPUTS

1

OUTPUT POWER

599w

INPUT VOLTAGE

90 VAC to 132 VAC, 180 VAC to 264 VAC, 255 VDC to 370 VDC

INPUT FREQUENCY

47hz to 63hz

MAXIMUM OPERATING TEMPERATURE

+65 C

MINIMUM OPERATING TEMPERATURE

-20 C
