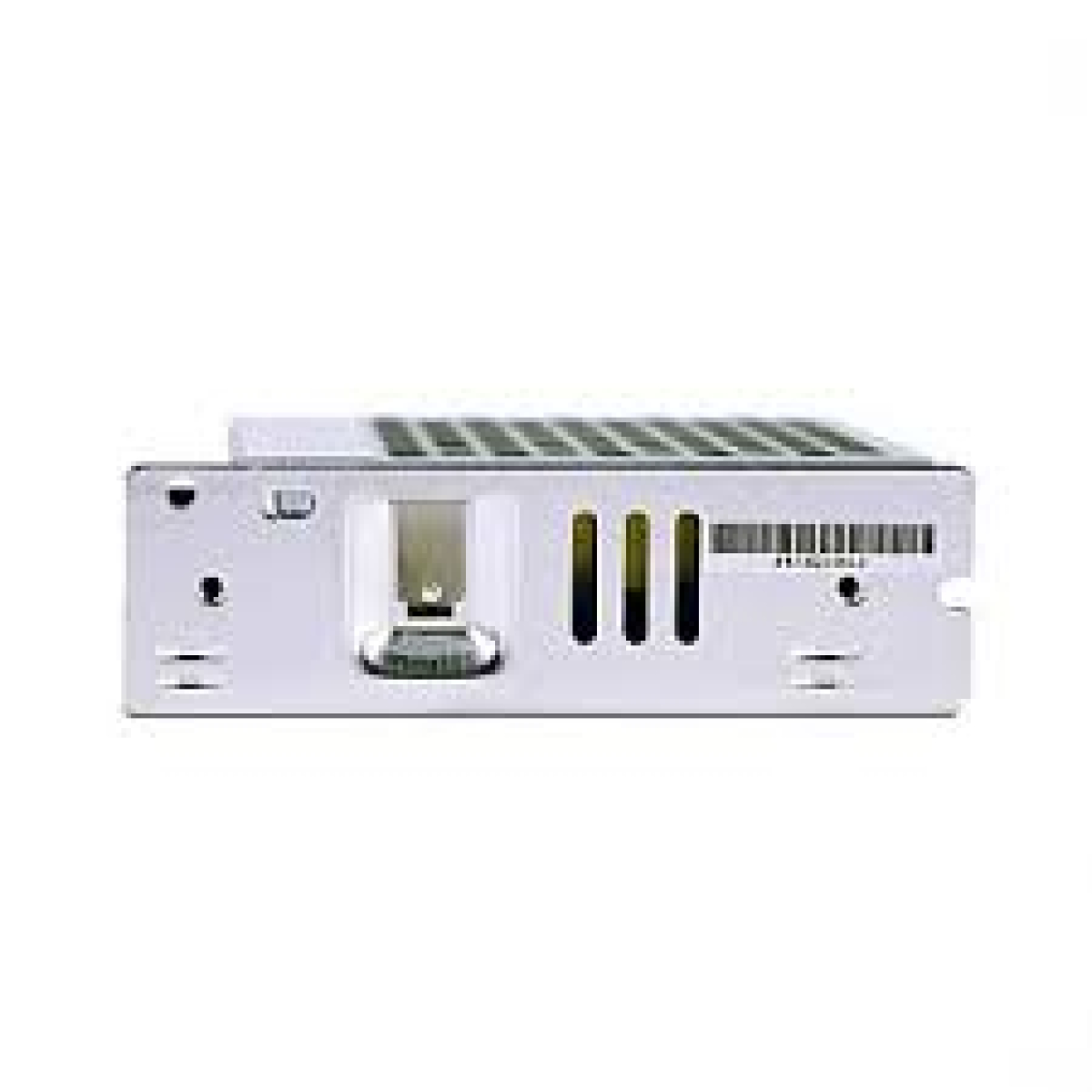

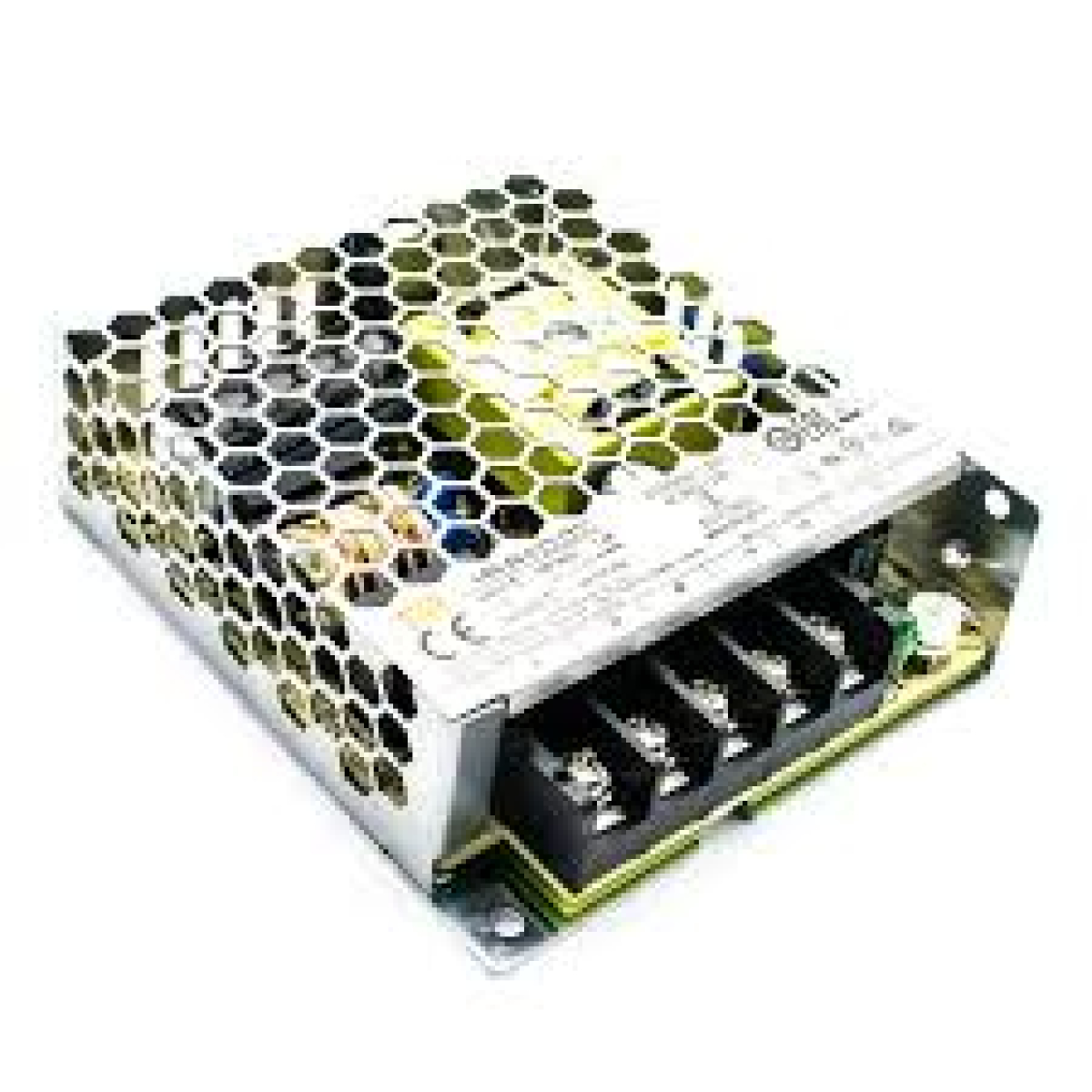

Meanwell SMPS LRS-50-5

Features of LRS-50-5 Meanwell SMPS

  • Protections : Short circuit / Overload / Over voltage / Over temperature
  • Universal AC input / Full range
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105  long life electrolytic capacitors
  • Withstand 300 VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability

Add to wishlist
Compare
18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

LRS-50 Series is a 50 Watt Single-Output Encolsed type power supply with 30mm of profile, Design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.

LRS-50-5 is a high quality Industrial Grade SMPS fom meanwell . LRS-50-5 SMPS is a 50 watt SMPS and gives 5 volts output. Meanwell LRS-50-5 switching power supply comes in mesh type casing and is very easy to mount.

Check out our Complete variety of MEANWELL SMPS  that we have.

Additional information
AC input voltage range

85~264VAC; 120~370VDC
AC inrush current (max.)

Cold start, 45A at 230VAC
DC adjustment range

±10% by potentiometer
Overload protection Range

110%~150%
Over voltage protection Range

115%~135% rated output voltage
Withstand voltage

3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature

-30~+70°C (refer to output derating curve)
