| No load power consumption |
<0.5W |
|---|---|
| heavy industry level |
(35~150W) |
| operating temperature |
70°C |
| AC input voltage range |
85~264VAC, 120~370VDC |
| Working temperature |
-20~+70°C |
| Dimension (LxWxH) |
62.5x 51x 28 |

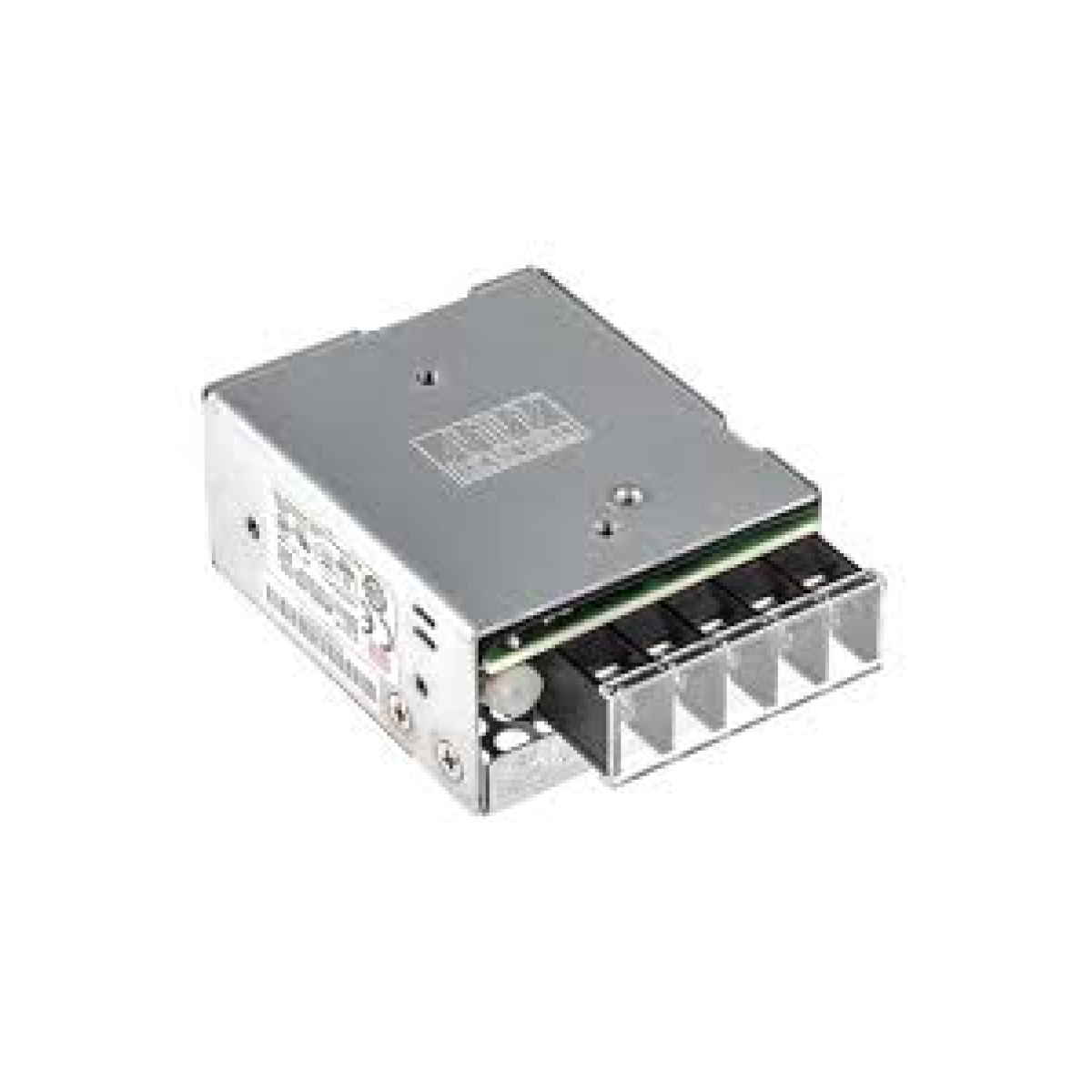

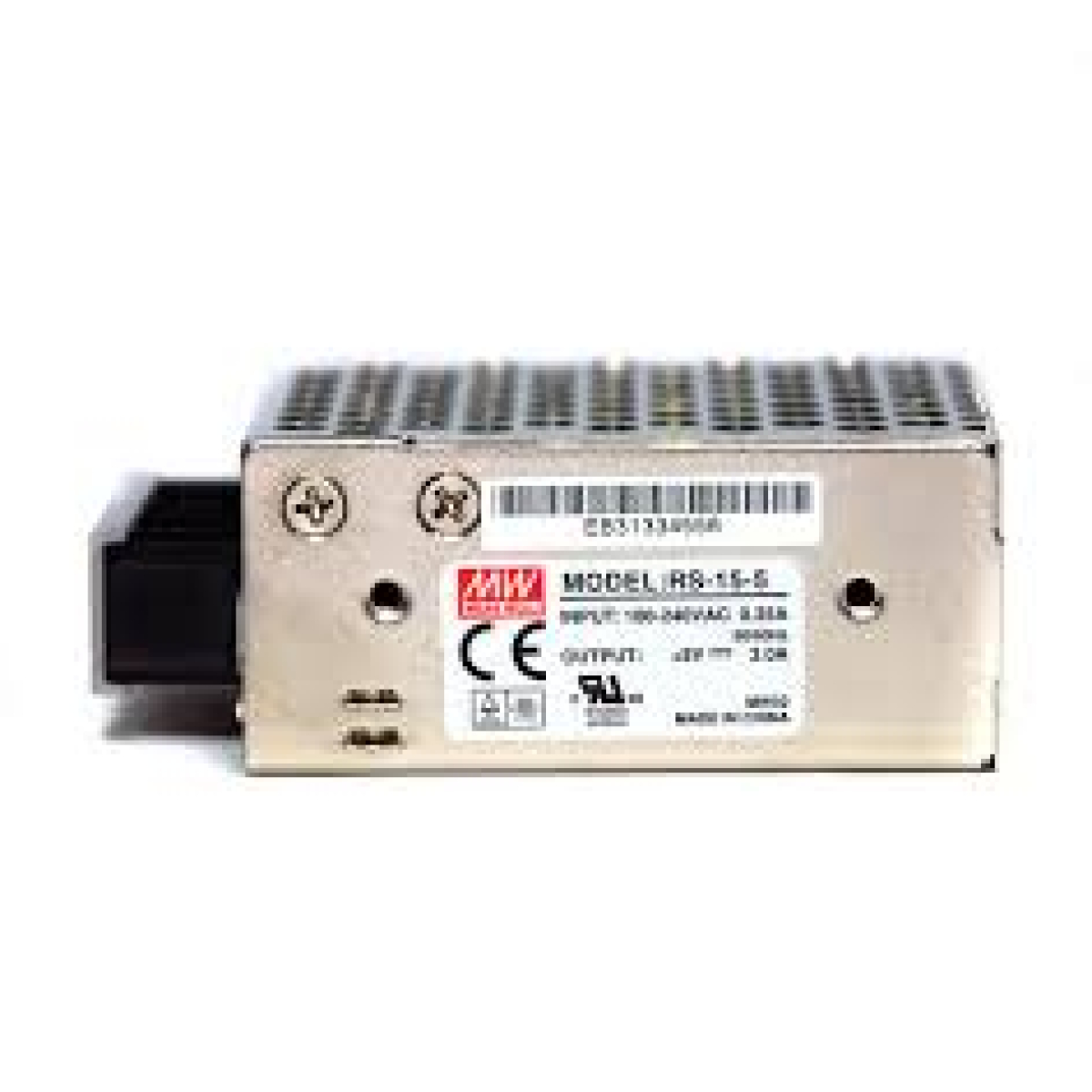

Mean Well LRS Switch Mode Power Supply, 15 W Output
The LRS -15 series of single-output 15 W enclosed style power supply is a low profile, highly efficient enclosed product. The LRS-15 series has been designed for use within demanding applications, thanks to a metallic meshing & air convection to ensure optimum heat dissipation.
The LRS-15 series has been designed with efficiency in mind, delivering an extremely low no load power consumption. Installation into more testing environments can be done thanks to 5G anti-vibration capability.
Features and Benefits
•Universal AC input / full range, with a 5 second 300 V ac surge input.
•Up to 89% efficiency rating, with less than 0.2 W no load power consumption.
•5G vibration resistance.
•Free air convection cooling.
