MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module

Name: MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module
SKU: HW-525B
Availability: InStock

SKU: HW-525B

The relationship between voltage output and current input:

VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.

For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.

Add to wishlist

Compare

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

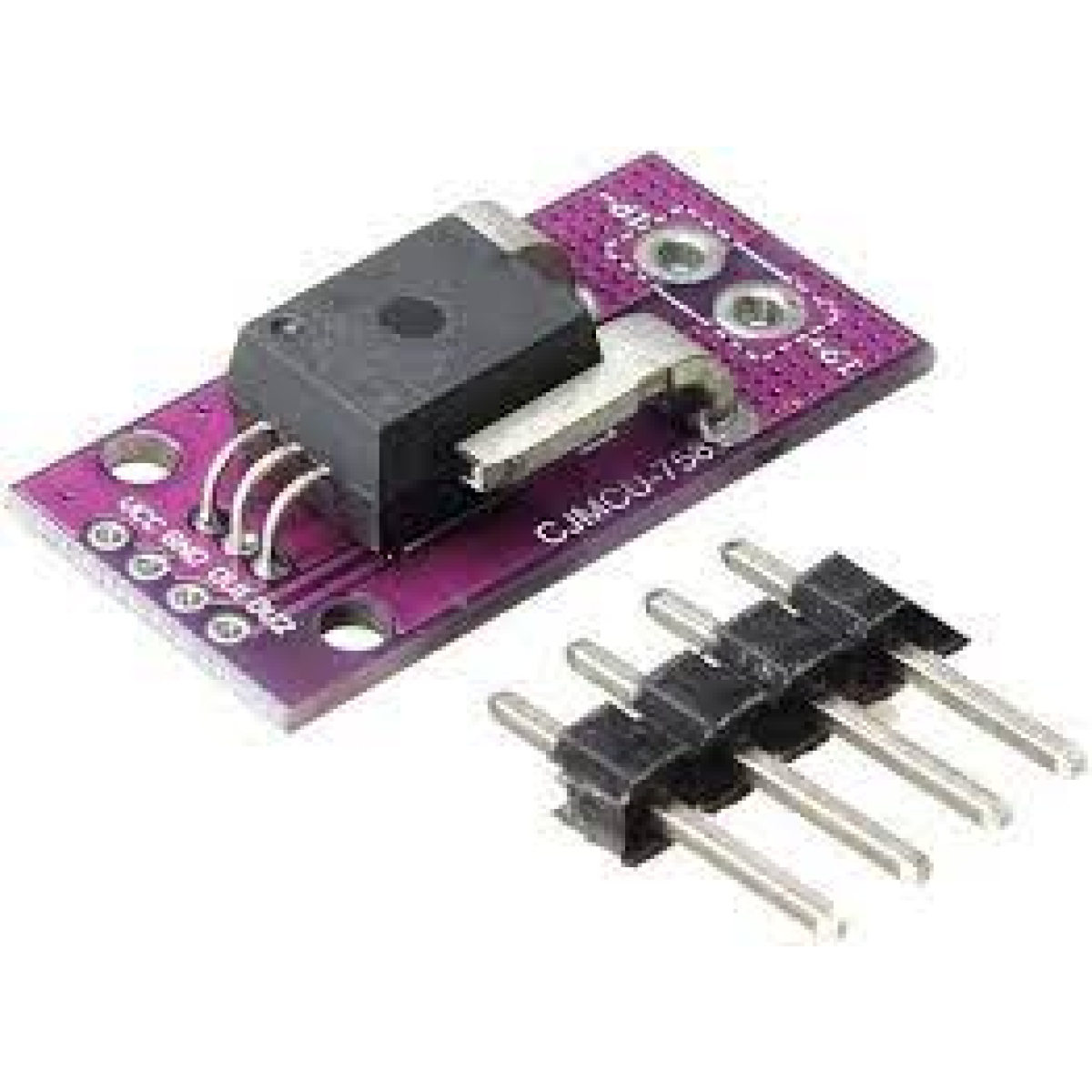

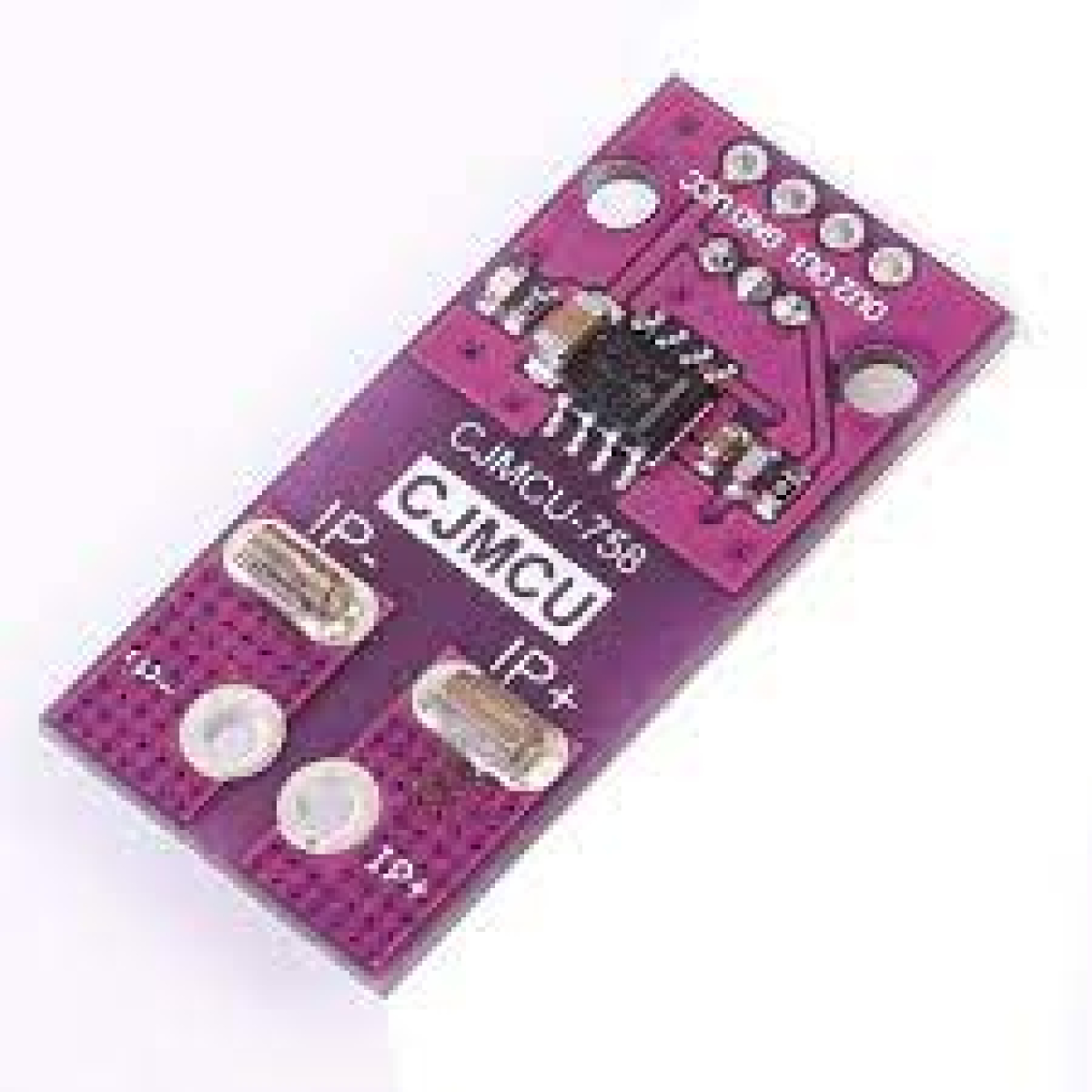

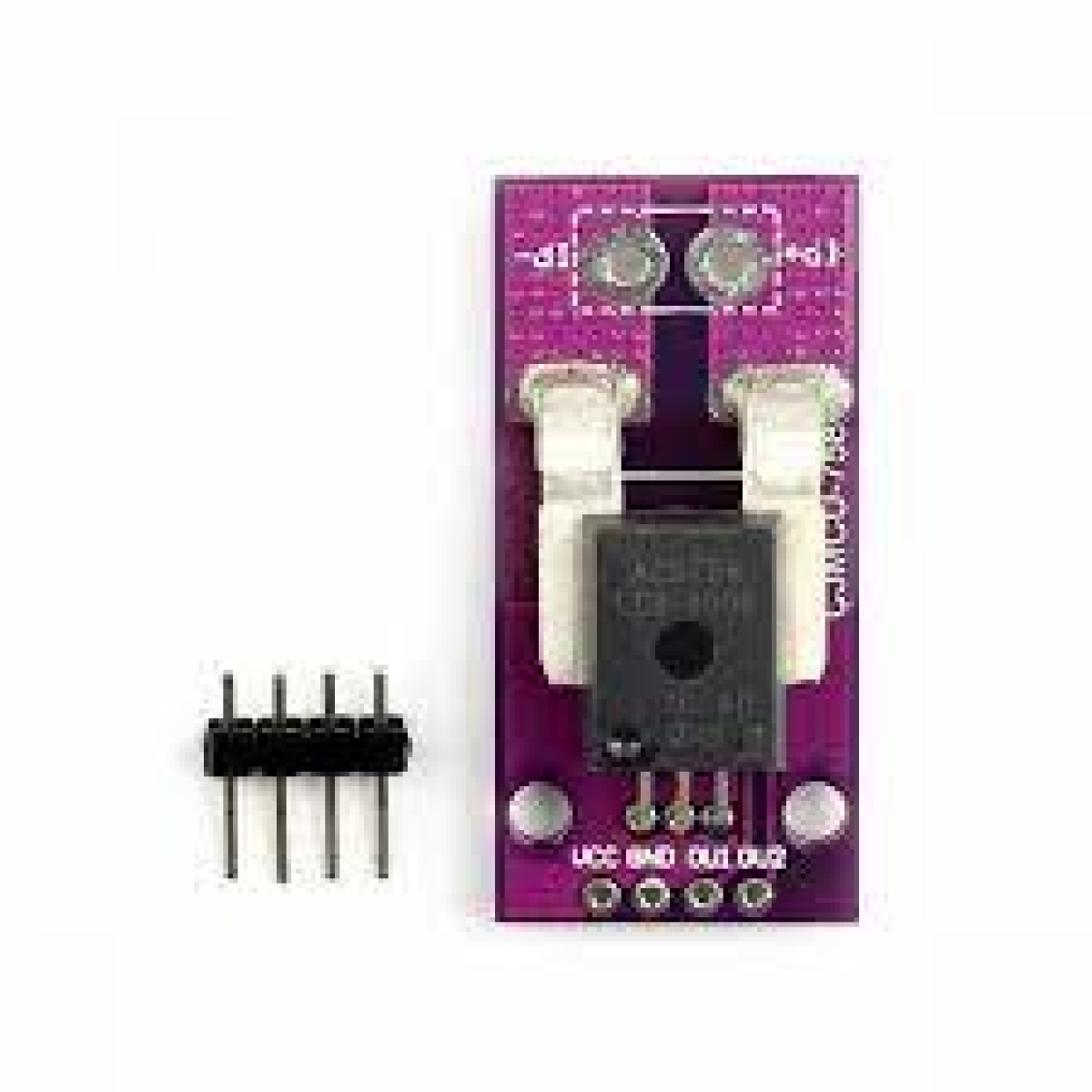

This MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module.

Small in size, with easy mounting capability.
Monolithic Hall IC for high reliability
Extremely stable output offset voltage
Factory-trimmed for accuracy.
Nearly zero magnetic hystereses.

Additional information

Operating current	13.5 mA (MAX)
Storage temperature range	-65 °C – 165 °C
Maximum output current (VIOUT-GND)	3 mA
Detection current range (A)	±50
Working temperature (°C)	-40 to 150
