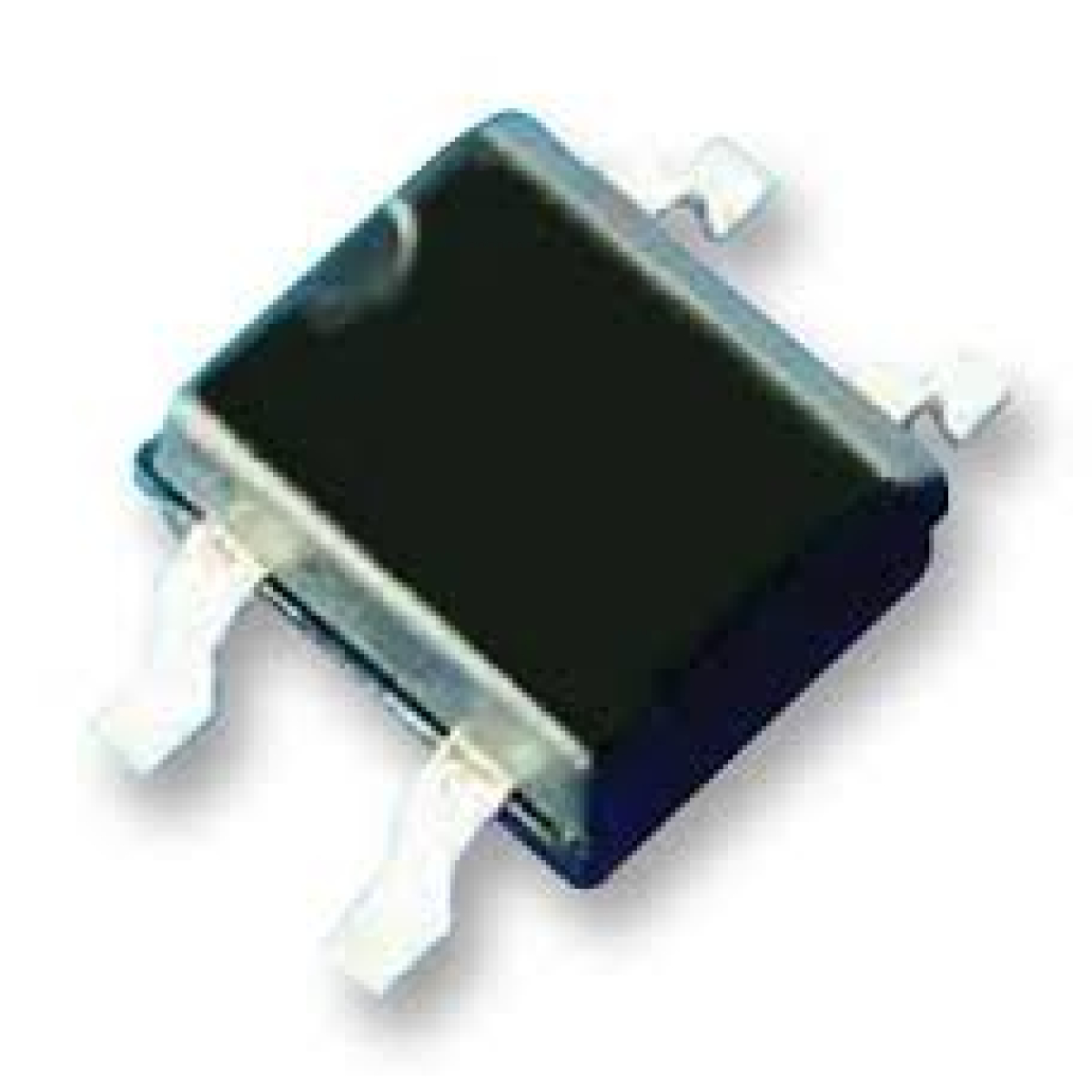

MB10S SMD

MB10S Bridge Rectifier is a 0.5 A rectifier family that achieves high surge current absorption within a very small foot print of SOIC-4. Within its small 35 mm2 form factor, the MB family shines in its surge capability. In order to absorb high surge currents, the design supports a 35 A IFSM rating and a 5.0 A² Sec I²T rating. The MB10S Bridge Rectifier is also rated to breakdown voltages of up to 1000 V. These features makes it ideal for small power supplies that need a little extra surge capability.

17 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

MB10S Bridge Rectifier is a 0.5 A rectifier family that achieves high surge current absorption within a very small foot print of SOIC-4. Within its small 35 mm2 form factor, the MB family shines in its surge capability. In order to absorb high surge currents, the design supports a 35 A IFSM rating and a 5.0 A² Sec I²T rating. The MB10S Bridge Rectifier is also rated to breakdown voltages of up to 1000 V. These features makes it ideal for small power supplies that need a little extra surge capability.

  • Peak Repetitive Reverse Voltage: 1000V
  • Max. Average Rectified Current: 0.5A
  • Forward Voltage Drop: 1.1V
  • Miniature Package Saves Space on PC Boards
  • Low Leakage Current
  • Ideal for SMT Manufacturing
Additional information
Forward Current

0.5A

Forward Voltage

1.1V

Peak Reverse Voltage

1000V

Max Surge Current

35A

Maximum Operating Temperature

+ 150 C
