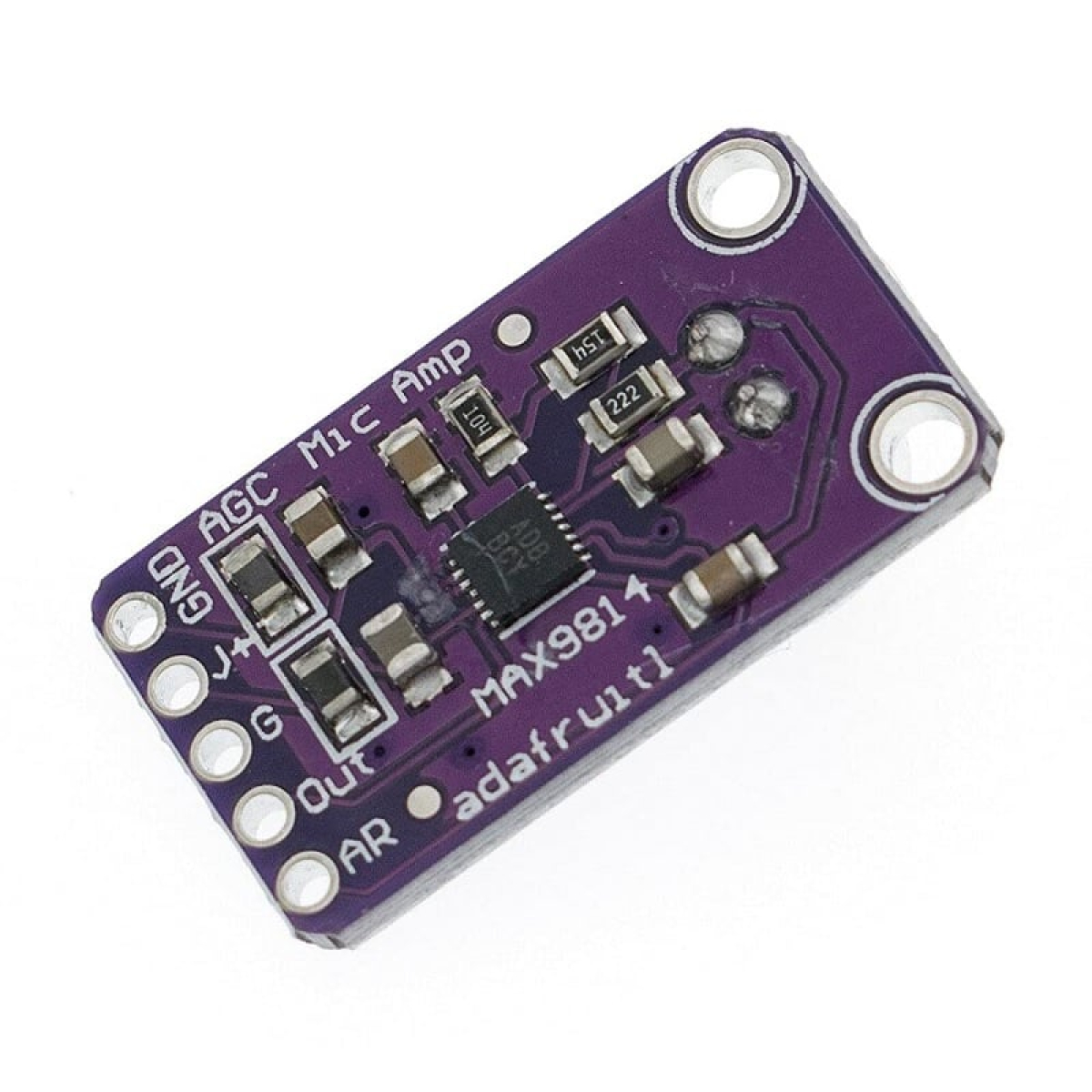

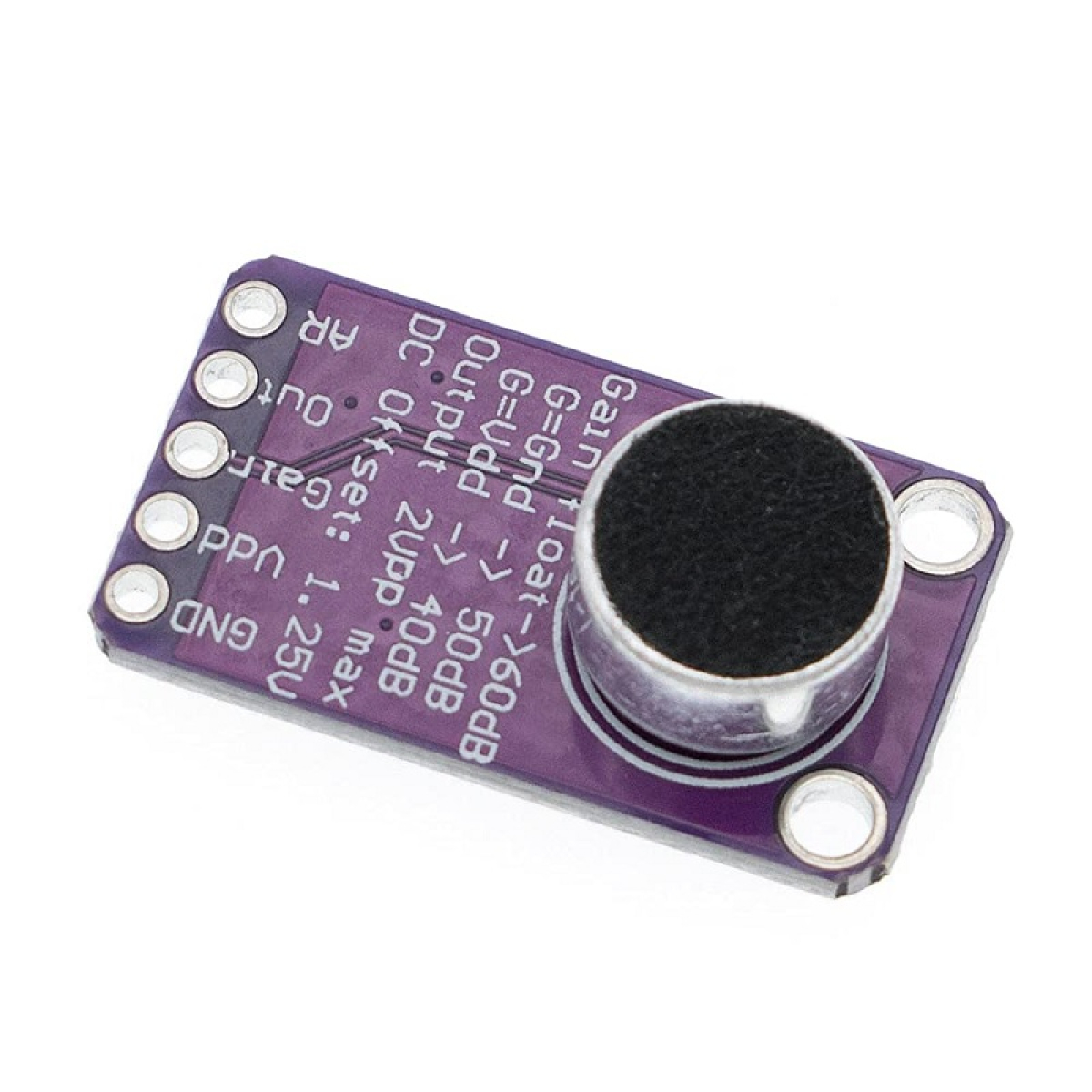

MAX9814 High Performance Microphone AGC Amplifier Module

The MAX9814 High-Performance Microphone AGC Amplifier, model CMA-4544PF-W, is an advanced audio solution that excels in capturing and amplifying sound with exceptional clarity. Featuring an Automatic Gain Control (AGC) system, it dynamically adjusts the amplification level to accommodate varying audio input levels, ensuring consistent and high-quality output. The compact module is equipped with the MAX9814 amplifier chip, known for its precision and reliability. With a user-friendly design, it’s suitable for diverse applications, from voice recording to audio surveillance. The CMA-4544PF-W offers a reliable, compact, and efficient solution for integrating superior audio performance into electronic projects and devices.

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Automatic Gain Control (AGC)
  2. Programmable action time
  3. Programmable action and release time ratio
  4. Low-power shutdown mode
  5. Built-in 2 Volt low noise microphone bias
  6. Low Input-Referred Noise Density of 30nV/
  7. Low THD: 0.04% (typical)
Additional information
Supply voltage(V)

2.7v-5.5v @ 3mA current

Output

2Vpp on 1.25V bias

Frequency Response

20Hz – 20 KHz

Shipping Dimensions

7 × 6 × 3 cm
