| Operating Voltage (VDC) |
3 ~ 5.5 |
|---|---|
| Temperature Range(°C) |
0 to +1024 |
| Cold Junction Compensation Range(°C) |
-20 to +80 |
| Resolution |
0.25°C |

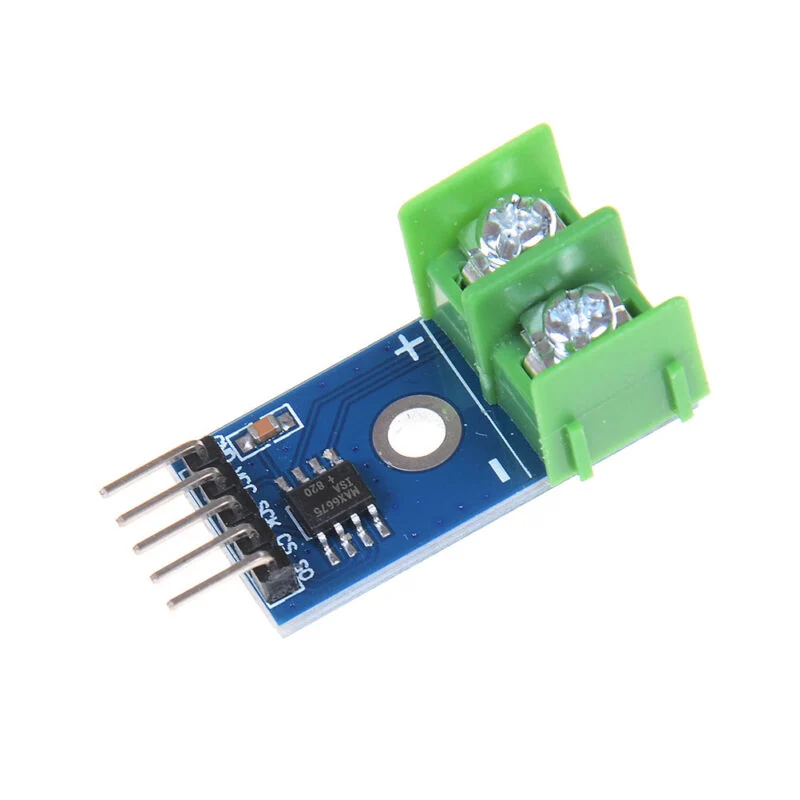

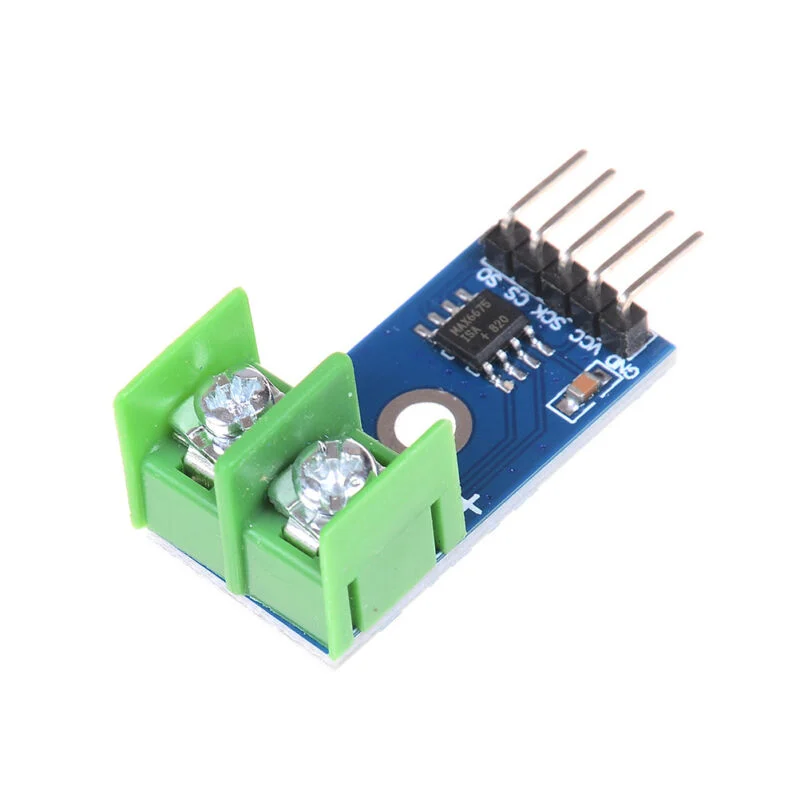

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.
- Internal integrated cold junction compensation circuit;
- Temperature signal can be converted into 12-bit digital
- Embedded thermocouple break detection circuitry.
- K-type temperature probe
- Simple SPI serial output temperature.
- High impedance differential inputs.
- Thermocouple break detection.
- 2000V of ESD signal
