Max30102 Black Org

SKU: NB198
Main Applications:
  1. Medical Monitoring Devices
  2. Fitness Assistant Devices
  3. Wearable Devices
  4. Detection signal type: light reflection signal (PPG)
  5. Output signal interface: I2C interface

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

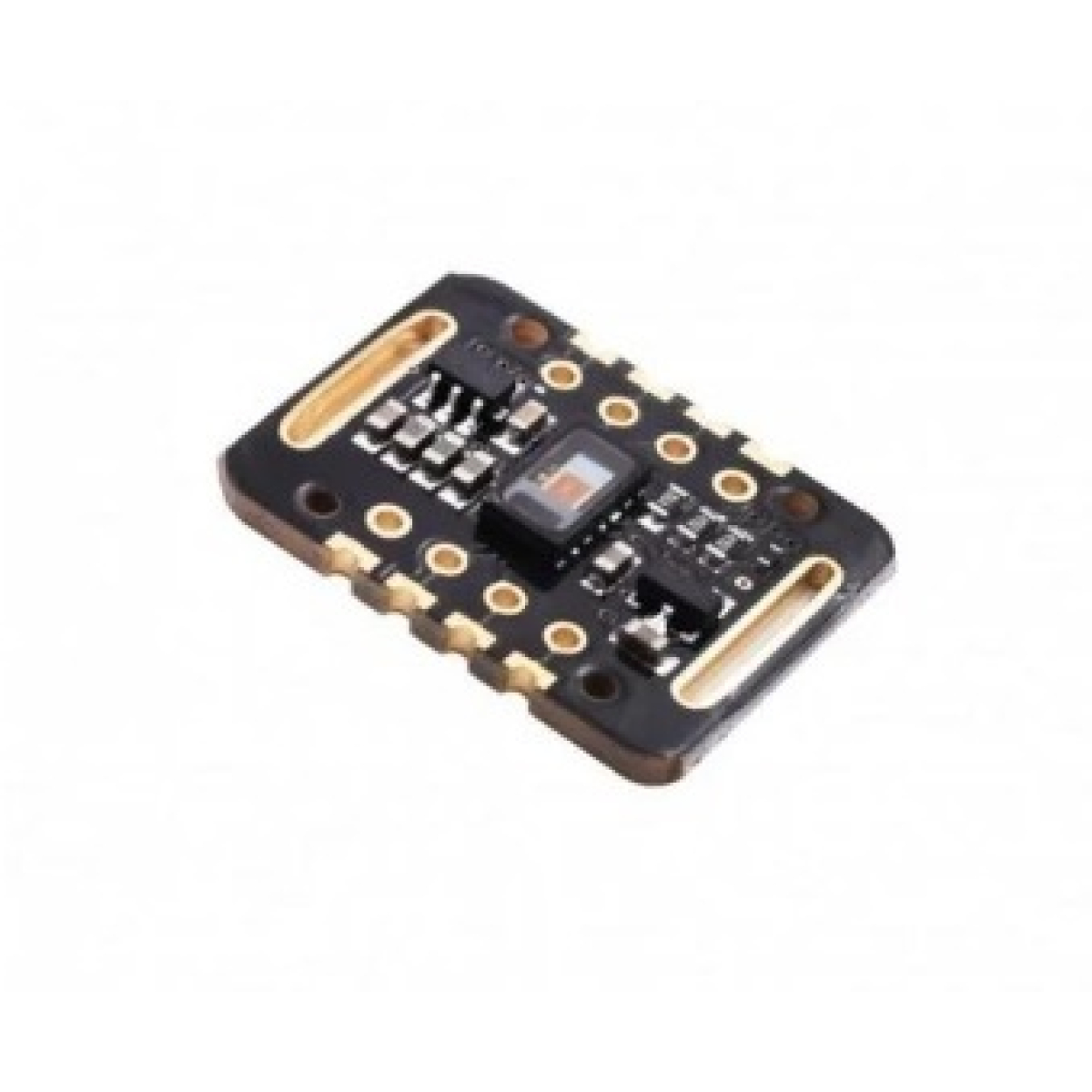

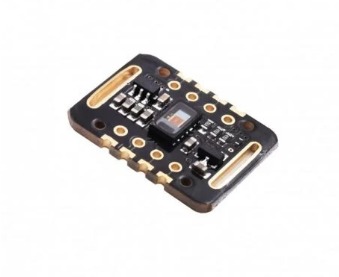

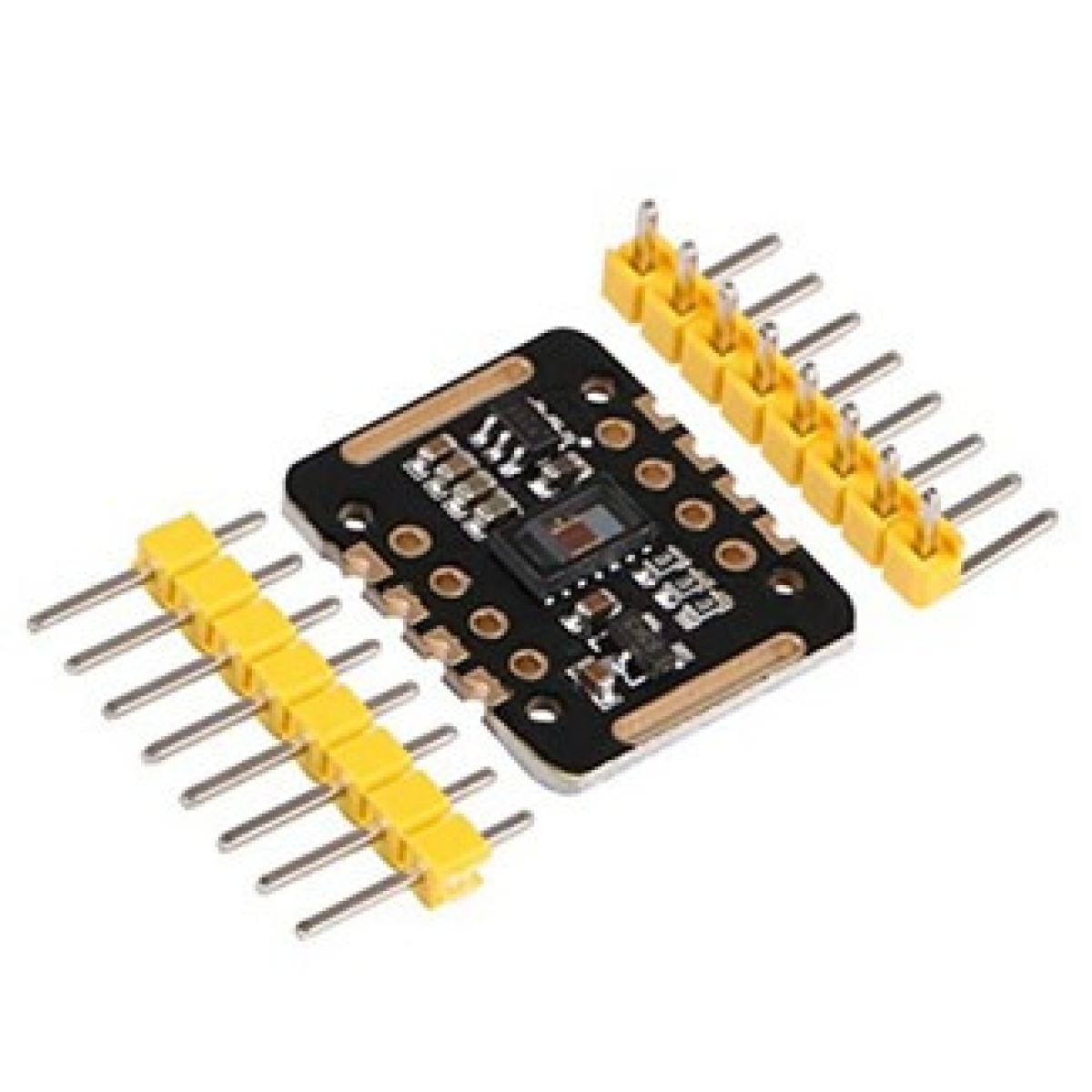

The MAX30102 is an integrated pulse oximeter and heart rate monitor biosensor module. It integrates a red LED and an infrared LED, photodetector, optical components, and low-noise electronic circuitry with ambient light suppression.

It features a 1.8V power supply and a separate 5.0V power supply for internal LEDs for heart rate and blood oxygen acquisition in wearable devices, worn on the fingers, earlobe, and wrist. The standard I2C-compatible communication interface can transmit the collected values to the KL25Z and other microcontrollers for heart rate and blood oxygen calculation

In addition, the chip can also shut down the module through software, the standby current is close to zero, and the power supply is always maintained. Because of its excellent performance, the chip is widely used in the Samsung Galaxy S series mobile phones.

Compared with the previous generation MAX30100, the chip integrates a glass cover to effectively eliminate external and internal light interference and has the best reliable performance.

Additional information
Operating Voltage (V)

3.3~5V

LED peak wavelength

660nm/880nm

Detection signal type

light reflection signal (PPG)

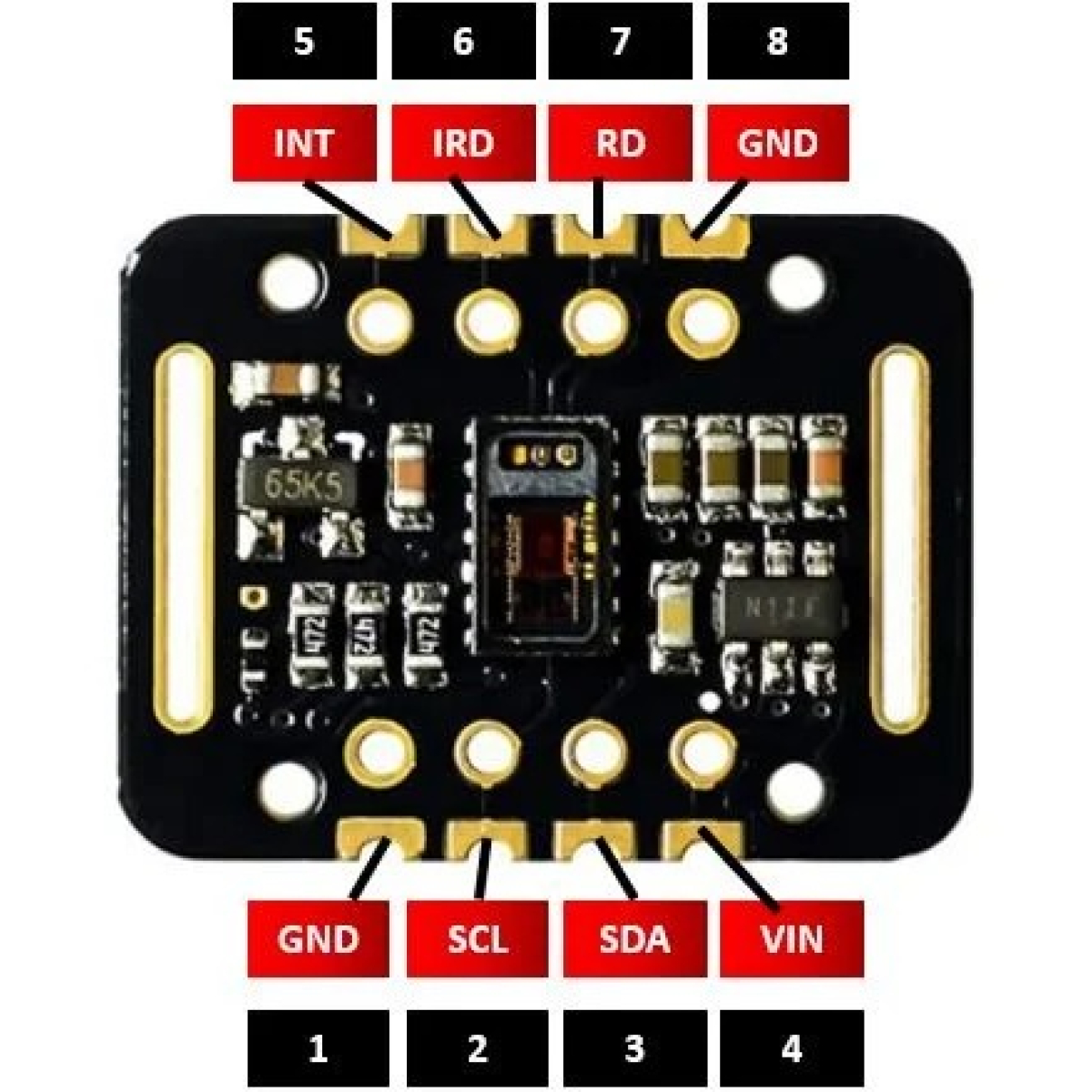

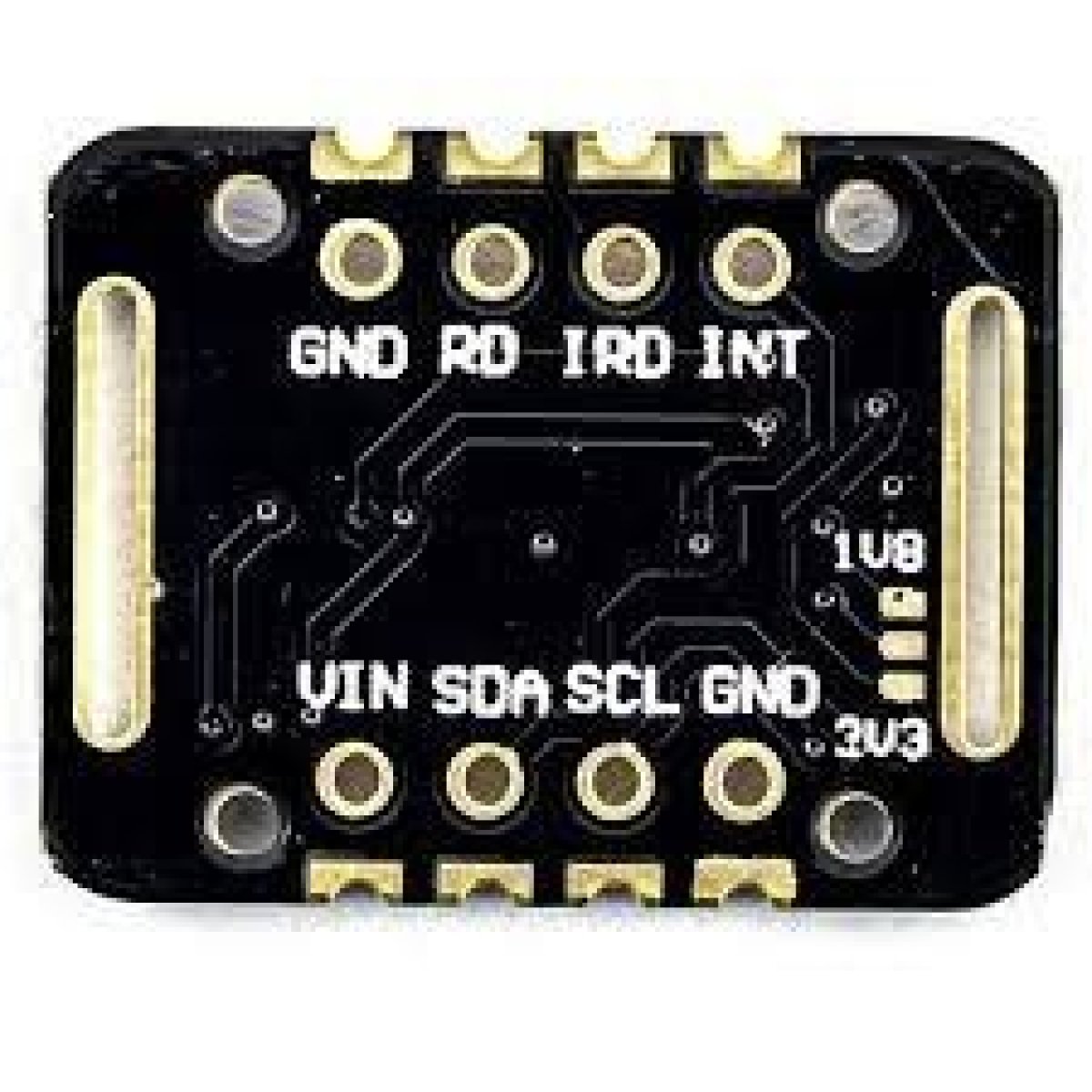

Interface

I2C Interface
