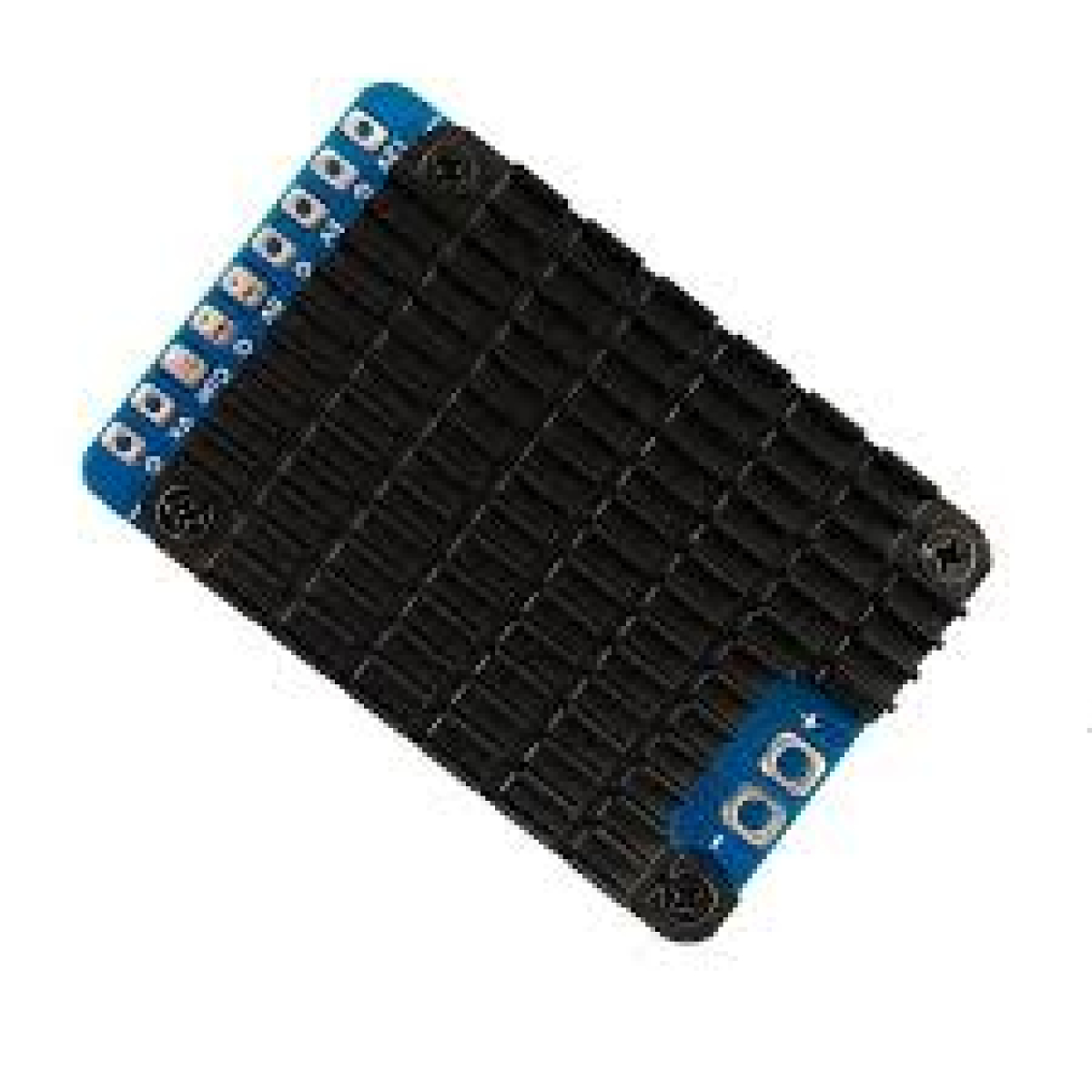

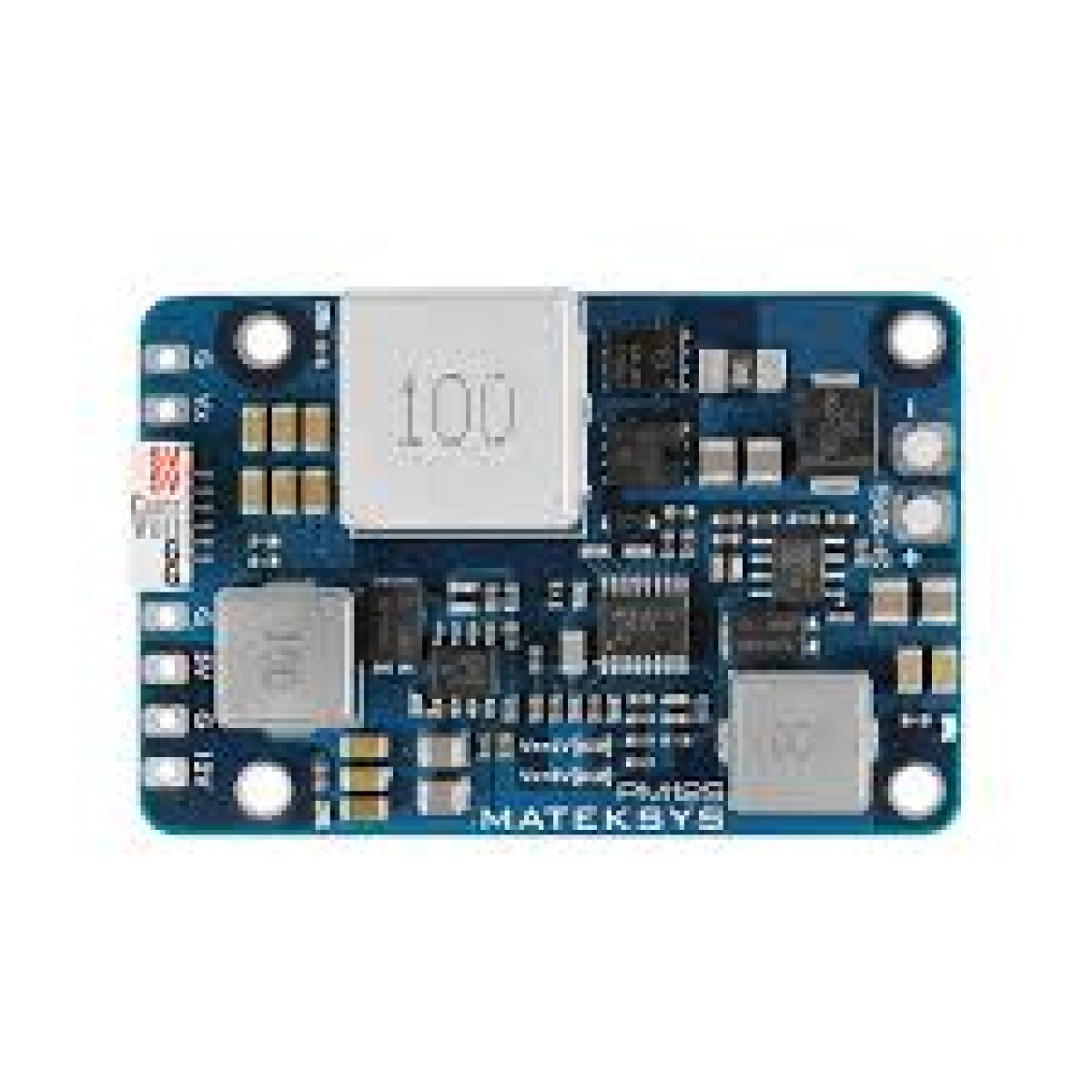

Matek Powermodule Pm12s-3

Features

BEC Vx, 5.25V/6V/8V options, 15A cont., 25A Peak 1K:20K voltage divider built-in (Volt 1/21 Input voltage)
3x independent Step-Down Voltage Regulators
BEC 12V, 4A continuous, 6A Peak
BEC 5V, 4A continuous, 6A Peak
9-55V DC IN (3-12S LiPo)

Add to wishlist

Compare

17 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The MATEKSYS PM12S-3 Power Module features 9-55V DC IN (3-12S LiPo), 3x independent Step-Down Voltage Regulators and BEC 5V, 4A continuous, 6A Peak, BEC 12V 4A continuous, 6A Peak and BEC Vx, 5.25V/6V/8V options, 15A cont., 25A Peak 1K:20K voltage divider built-in (Volt 1/21 Input voltage).

Additional information

BEC Vx	5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.
Operating Input Range with TVS protection	9V to 55V
Voltage Divider	1K:20K (Volt = 1/21 Input voltage)
BEC 12V	(Fixed), 4A continuous
BEC 5V	(Fixed), 4A continuous
SIZE	61x40x15mm
